EAW AS562ix mid-90s - 1999

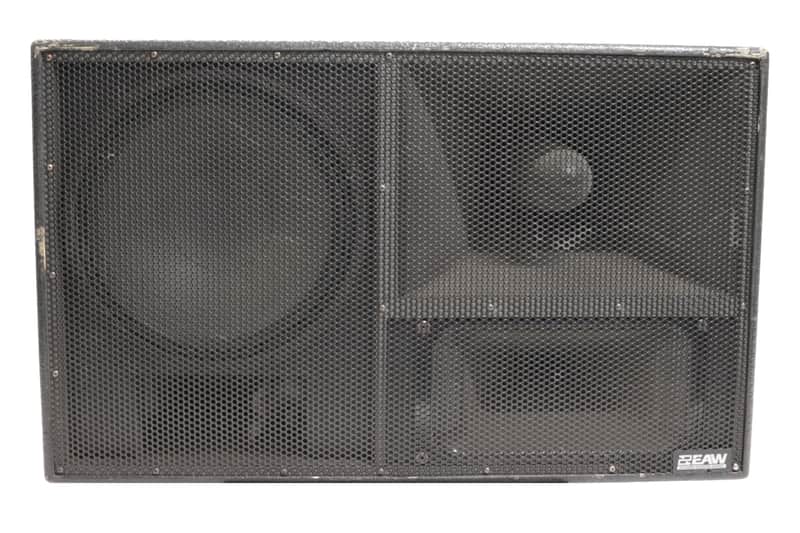

EAW AS562ix — 3-Way Full Range Biamplified Loudspeaker System (x5 units)

Eastern Acoustic Works (EAW) AS562ix, Part No. 999168. A true professional 3-way full range system designed for stadiums, arenas, concert halls and large venues. Five units available, sold as a lot or individually.

SYSTEM CONFIGURATION:

• LF: 1× 15" woofer in vented enclosure

• MF: 1× 10" horn-loaded cone driver

• HF: 1× 2" exit / 75mm voice coil compression driver on 60°×40° constant directivity horn

• Powering: Biamplified (passive MF/HF internal crossover)

• Recommended HP frequency: 40Hz @ 24dB/oct

NOMINAL DATA:

• Frequency Response: 60Hz–16kHz (±3dB) / 40Hz (−10dB)

• Sensitivity MF/HF: 105 dB SPL / 1W / 1m

• Sensitivity LF: 98 dB SPL / 1W / 1m

• Impedance: 8Ω (both sections)

• Power Handling AES: 1,000W LF / 300W MF/HF

• Max SPL Peak: 135.8 dB (MF/HF) / 134.0 dB (LF)

• Coverage: 60° H × 40° V

• Connectors: 4-terminal barrier strip

• Suspension: 16× 3/8"-16 threaded mounting points

• Cabinet: 15mm Baltic Birch Plywood, Black Catalyzed Polyurethane finish

• Dimensions: 571.5 × 930 × 502 mm

• Net weight: 64.4 kg / Shipping weight: 74.6 kg per unit

CONDITION:

All 5 units tested and fully functional. Signs of professional use on cabinet exteriors (consistent with active touring/installation use). Grilles and connectors in good condition.

INCLUDED:

✓ 5× EAW AS562ix loudspeaker systems

✓ Custom aluminium transport carts (2 units per cart) for safe handling

PRICING:

• Full lot (5 units + carts): 1,800–2,200€ (negotiable)

• Individual units: 380–450€ each

Collection strongly preferred — Barcelona area (Esplugues de Llobregat), Spain.

Shipping possible at buyer's risk and expense — professional freight forwarding required given unit weight (64.4 kg each).

JBL UREI 5235 active crossovers and amplification available separately — contact for details.
