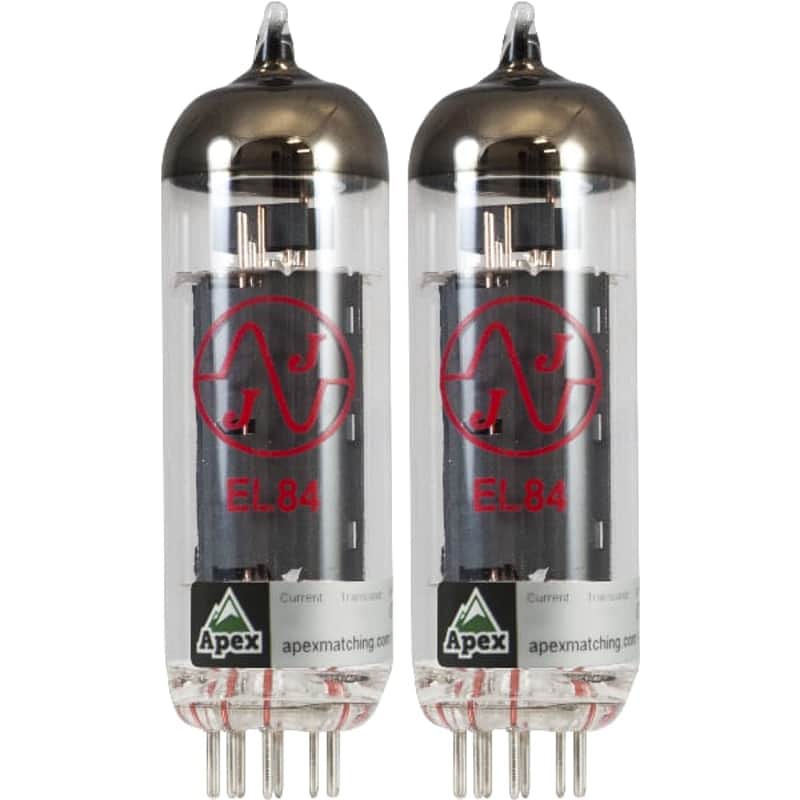

The JJ Electronic EL84 is a solidly built EL84 / 6BQ5 with excellent tonal qualities. JJ’s rugged construction of this tube offers high reliability without any compromise to the sound. This tube has solid lows with warm bright mids and shimmery highs. When saturated the harmonics are rich and dynamic. The JJ EL84 nails the classic sound of this tube. This tube can replace any EL84 or 6BQ5 tube.
These tubes are Apex® Matched.Product MeasurementsItem Diameter: 22 mmItem Height: 77.8 mmBody Height: 71.4 mmFilament Voltage (Uf): 6.3 VFilament Current (If): 0.76 APlate Voltage (Ua): ≤ 300 V, 250 V typicalPlate Current (Ia): 48 mAGrid Voltage 1 (Ug1): ≥ -100 V, -7.3 V typicalGrid Voltage 2 (Ug2): ≤ 300 V, 250 V typicalTransconductance (S): 11.3 mA/VGain (μ): 19Internal Resistance (Ri): 40 kΩPlate Dissipation (Wa): ≤ 12 WCathode Current (Ik): ≤ 65 mAHeater to cathode voltage (Uk/f): ≤ 100 VGrid Circuit Resistance 1 (Rg1), Fixed Bias: 0.3 MΩGrid to Cathode Capacitance (cg/k): 10 pFPlate Capacitance (ca): 5.1 pFGrid to Plate Capacitance (ca/g): 0.6 pFGrid 1 to filament capacitance (cg1f): 0.15 pFGrid Circuit Resistance 1 (Rg1), Automatic Bias: 1 MΩ
Price$42.45
Free Shipping
Free Shipping
from Tempe, AZ
30-Day Return Policy
Enjoy peace of mind with your new gear
1
10+ in stock
