About this listing
Shipping Policy: Please note that we currently ship within Canada only. Offers and orders from outside Canada will not be accepted. Live to make music
The R12 is made for musicians who live to make music. And they want the freedom to make music wherever they go.
All you need on-board
Compact and mobile, you can record and mix songs without a computer. Use the R12’s full-color LCD touchscreen to cut, copy, loop, and edit your tracks.
Amazing sound
The R12 has super-clean preamps and you’ll love the way they sound. With two XLR/TRS inputs, and 8 tracks of audio, the R12 is perfect for recording everything from demos to release-ready songs.
Fully Loaded
The R12 includes a send effects channel offering reverb, chorus and delay with a dedicated effects return fader. For advanced tones, you can use presets and effects from Zoom's Guitar Lab. The R12 also has pan and a 3-channel EQ for each track and a compressor on inputs 1 and 2.
Take it everywhere
The R12 provides up to 5 hours on four AA batteries allowing you to bring your production anywhere. Additionally, you can use the R12 with the included AD-17 power adapter, or a USB battery.
Playback. Play along.
Use Sequence Play to create a playlist of your projects. Then use them as backing tracks, whether you’re playing live or rehearsing a set.
It Starts with a Groove
With 150 preloaded drum loops in a variety of patterns and genres, the R12 provides a versatile rhythm section for any project.
Import Audio Files
Add additional audio samples by importing files into your R12 via Micro SD card or USB thumb drive.
From Headphones to Monitors
The R12 includes an ⅛” stereo headphone jack as well as dedicated ¼” monitor outputs.
Interface + Control Surface
Use the R12 as a stereo audio interface with your favorite DAW or streaming platform, via USB-C. As a control surface, the transport controls and faders make it easy to adjust and control your software during production.
Attention to Detail
Connections
Connect microphones, instruments or line level devices like keyboards, mixers and more.
Hi-Z
Input 1 on the R12 has a Hi-Z switch, allowing you to plug your guitar directly into the recorder.
Phantom Power
Both inputs on the R12 offer 48V Phantom Power for condenser microphones.
Stay in Time. Every Time.
Activate the fully customizable click track with the press of a button. Click balance blends the metronome with your playback audio and routes it to your headphones and/or the main outputs.
Add Some Synth
The R12 has 18 FM synth instruments built in. They can be played by plugging in a MIDI keyboard via USB-C or programmed using the touchscreen.
Product Specifications

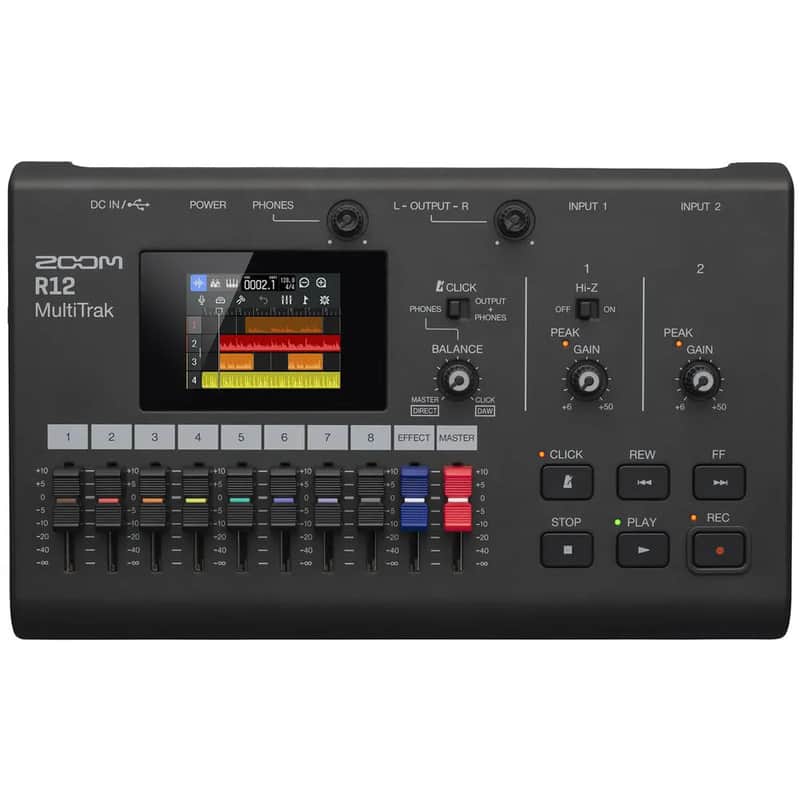

R12 MultiTrak Recorder / Interface Controller
Input / Outputs
Inputs
2x MIC/Line (mono)
Outputs
Master OutPhones
MIC/Line (Mono)
Connectors
2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT）
Input Gain
+6 ~ +50 dB
Input Impedance
XLR: 3.9 kΩ TRS: 3.9 kΩ/1 MΩ (when Hi-Z ON, INPUT 1 only)
Phantom Power
+48 V (switchable separately for INPUTS 1 and 2)
Equivalent Input Noise
–121 dBu or less (IHF-A) at +50 dB/150 Ω input
Frequency Response
−1.0/+0.5 dB: 20 Hz – 20 kHz
Master Out
Connectors
2 TRS phone jacks (balanced)
Max. Output Level
+14 dBu
Output Impedance
200 Ω
Phones
Connectors
1 stereo 3.5mm mini jack
Max. Output Level
45 mW + 45 mW (into 32 Ω load)
Output Impedance
10 Ω
Recorder
Max. Simultaneous Recording Tracks
2
Max. Simultaneous Playback Tracks
8
Recording Format
44.1kHz, 16/24-bit, mono/stereo WAV
Recording Media
Cards compatible with microSDHC specifications 4 GB – 32 GBCards compatible with microSDXC specifications 64 GB – 1 TB
Track Settings
EQ
High: 10 kHz, ±12 dB, shelvingMiddle: 2.5 kHz, ±12 dB, peakingLow: 100 Hz, ±12 dB, shelving
Pan
L100 - R100
Effects
Input Dynamics
Comp / Limiter / Gate
Patch Memory Effects
3 types can be used simultaneously50 patch memoriesGuitar Lab supportedCan be assigned and used as an insert (input) or send effect
Dedicated Send Effects
10 types of spatial effects
Tuner
Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD
Click (Metronome)
Time Signatures
3/4, 4/4, 6/8
Tempo Range
40.0 – 250.0 BPM
Rhythm Loops
Sound Source Format
PCM
Number of Loops
150
Synth
Sound Source Format
FM
Polyphony
8
Number of Sound Types
18 (and a PCM drum kit)
Display
2.4" (320 x 240) full-colour touchscreen LCD
USB
Connector
USB-C
Audio Interface Function
2-in/2-out or 2-in/2-out (iPad) USB 2.0 Full Speed44.1 kHz, 16/24-bit2-in/4-out USB 2.0 High Speed44.1 kHz, 16/24-bit
Mass Storage Function
USB 2.0 High Speed (5 V/200 mA power supplied when host)
Guitar Lab Connection
USB 1.1 Full Speed
DAW Connection (Control Surface)
USB 1.1 Full Speed
USB MIDI Keyboard Connection
USB 1.1 Full Speed (5 V/200 mA power supplied)
Power
Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)AC adapter: ZOOM AD-17 (5V/1.0A)
Power Consumption
5W maximum
Estimated Continuous Operation Time Using Batteries
During playback with +48V off and 32Ω headphone load
Alkaline batteries: about 5 hours
NiMH batteries (1900 mAh): about 5 hours
Lithium batteries: about 11 hours
Weight
827 g (29.1 oz)
Dimensions
25.6 x 15.8 x 6.1 cm (10 x 6.2 x 2.4")
PriceC$399.99
