About this listing

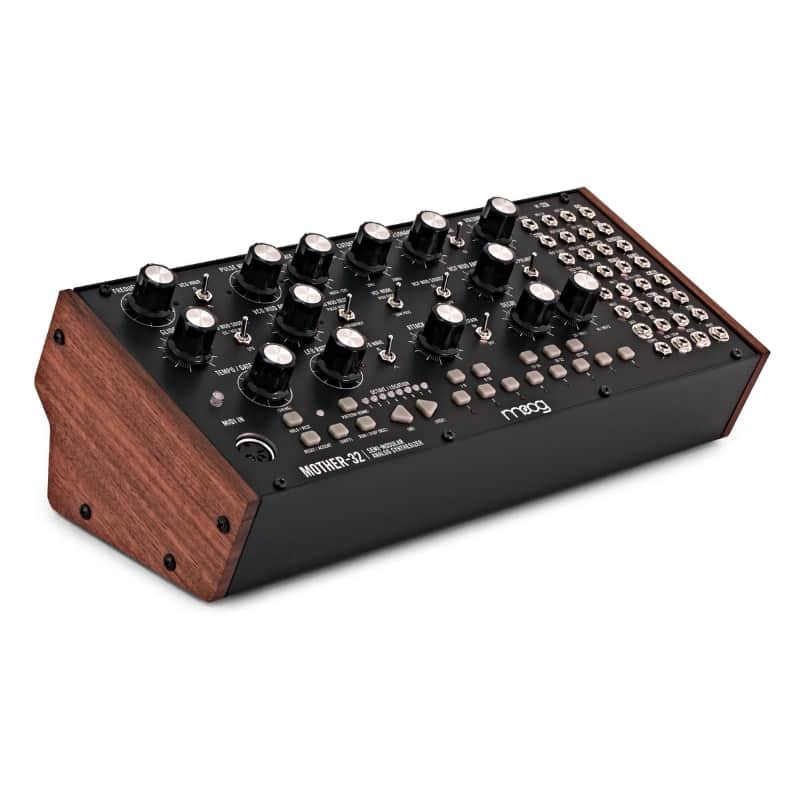

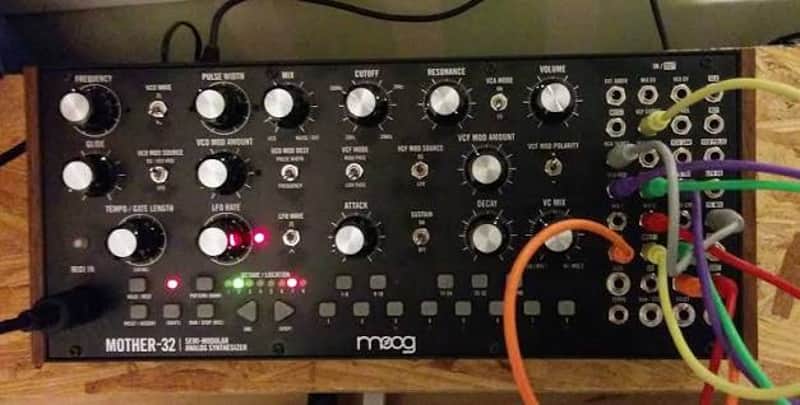

The Moog Mother-32 is a monophonic, tabletop semi-modular analog synthesizer and the company's first instrument designed for the Eurorack format. It functions completely standalone without any patch cables, but it features a built-in patchbay to integrate with other modular gear. Key Technical SpecificationsSound Engine: 100% Monophonic Analog.Housing: Extruded aluminum enclosure with classic wooden side cheeks.Dimensions: 60HP Eurorack width (can be removed from its desktop case and mounted into standard Eurorack skiffs).Power: Included 12V DC universal power supply, drawing roughly 2.8W.Synth Architecture & Voice EngineOscillator (VCO): Single definitive Moog oscillator with simultaneous selectable Sawtooth and Pulse/Square wave outputs. Features manual pulse width and Pulse Width Modulation (PWM). Filter (VCF): Iconic 4-pole Moog Transistor Ladder Filter switchable between Low Pass and High Pass modes. Operates with a smooth 20Hz–20kHz frequency response and features voltage-controlled resonance. Modulation: Contains a wide-range Low Frequency Oscillator (LFO) capable of audio-rate modulation (Triangle/Square shapes) and an Attack-Decay (AD) Envelope Generator with a switchable Sustain toggle.Noise & External Audio: Onboard analog white noise generator. Plugs into an external audio input jack, which allows users to bypass noise and route external instruments through the filter and amplifier. Mixer: Includes an onboard 2-input voltage-controlled mixer for blending audio or control voltages.Sequencer & Performance ControlsOnboard Sequencer: A voltage-controlled 32-step step sequencer that can store up to 64 custom patterns. It supports per-step entry for accent, glide, rest, tie, variable gate length, and a distinct rhythmic "ratchet" stutter effect. [1, 2, 3, 4, 5]Keyboard interface: Features a small 13-note (1-octave) rubber pad keypad primarily utilized to play notes, enter sequence data, or mute/select individual steps. [1, 2]MIDI Connectivity: Includes a standard 5-pin MIDI input that drives an internal MIDI-to-CV converter, allowing direct control via DAW or standard keyboard controllers. [1, 2, 3, 4, 5]Built-in 32-Point Patchbay [1]The 3.5mm patchbay consists of 18 inputs and 14 outputs. It expands the synth's internal hardwired layout and provides native connectivity to other Eurorack components. A dedicated Assignable Output Jack can be programmed to route 16 different functions. It handles options like sequencer clock accents, ramp/random voltages, step triggers, MIDI velocity, aftertouch, or Pitch Bend.
Original PriceC$640
9% price drop
New PriceC$588
+ C$80 Shipping
