Overview

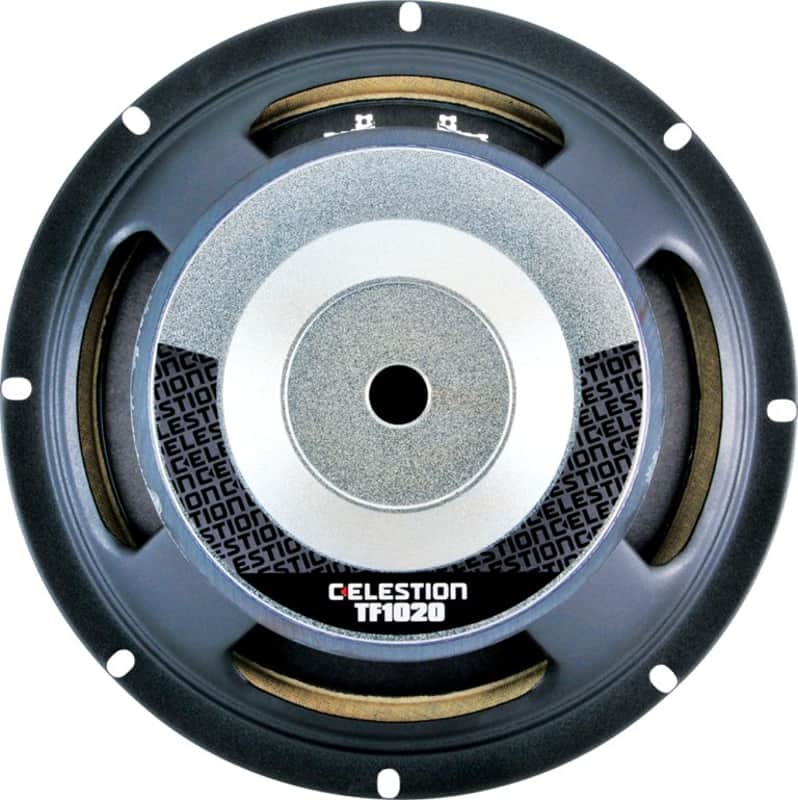

The Celestion TF1020 is a high-quality mid/bass driver that features a 10-inch pressed steel chassis and a ferrite magnet for exceptional sound quality. With a power rating of 150W, a continuous power rating of 300W, and a sensitivity rating of 97dB, this driver delivers clear and detailed audio across a wide range of frequencies, from 60-5500Hz. The Kevlar-loaded paper cone and cloth-sealed surround material provide added durability, while the single suspension ensures smooth and accurate movement. With an additional impedance of 4Ω and an overall diameter of 256mm, this mid/bass driver is easy to install and is designed to provide reliable performance in a variety of audio applications. Whether you're a musician or an audio enthusiast, the Celestion TF1020 is an excellent choice for any mid/bass driver application.
Specifications
Nominal diameter: 254mm / 10inPower rating: 150WContinuous power rating: 300WEIA power rating: 250WRated impedance: 8Ω Sensitivity: 97dBFrequency range: 60-5500HzChassis type: Pressed steelMagnet type: FerriteMagnet weight: 1.2kg / 42ozVoice coil diameter: 50mm / 2inVoice coil material: Round copperFormer material: PolyimideCone material: Kevlar loaded paperSurround material: Cloth-sealedSuspension: SingleGap height (Hg): 8mm / 0.31inVC winding height (Hvc): 12mm / 0.47inOverall diameter: 256mm / 10.08inOverall depth: 110mm / 4.3inCut-out diameter: 229mm / 9.02inMounting hole dimensions: 8x6mm / 0.31x0.24inNumber of mounting holes: 4Mounting hole PCD: 245mm / 9.65inUnit weight: 3.7kg / 8.2lb
