About this listing

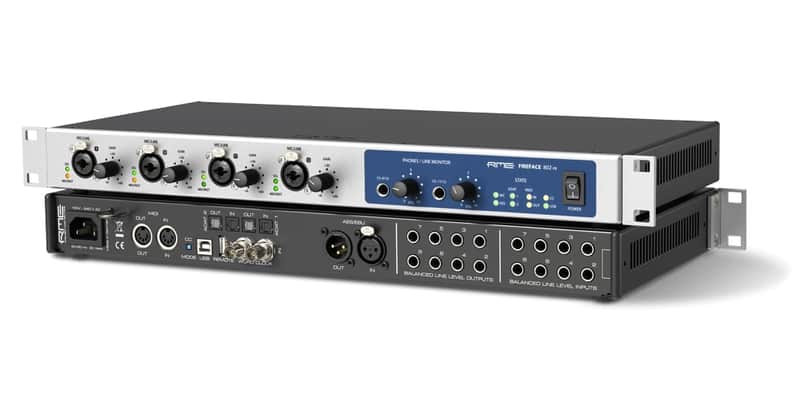

The Fireface 802 FS is a highly integrated pro audio solution for live and studio use, all within a 19” enclosure. An interface designed for users who don’t want to make compromises in sound, stability and ultra-low latency operation, and who long for an unrivaled professional feature set. Once again a milestone interface from RME, including the best of the best and even a bit more. 60 channels of audio, high-end microphone preamps, reference class converters, a complete effects section and operation at up to 192 kHz are the base for many more features.SpecsFireface 802 FSAnalogAD, Line In 1-8, rearInput: 6.3 mm TRS, electronically balancedSignal to Noise ratio (SNR) @ LoGain: 116 dB (AES17), 118 dBASignal to Noise ratio (SNR) @ +4 dBu: 115 dB (AES17), 117 dBAFrequency response @ 44.1 kHz, -0.1 dB: 8.9 Hz – 20.4 kHzFrequency response @ 96 kHz, -0.5 dB: 4.3 Hz – 45.2 kHzFrequency response @ 192 kHz, -1 dB: 3 Hz – 89 kHzFilter: Short Delay Sharp, 5 / 5 / 6 samples delayTHD @ -1 dBFS: < -120 dB, < 0.0001 %THD+N @ -1 dBFS: < -110 dB, < 0.00032 %Channel separation: > 110 dB Maximum input level: +19 dBuInput: 6.3 mm TRS jack, electronically balancedInput impedance @ 1 kHz: 10 kOhm unbalanced, 10.6 kOhm balancedInput sensitivity switchable between Lo Gain and +4 dBuInput level for 0 dBFS @ Lo Gain: +19 dBuInput level for 0 dBFS @ +4 dBu: +13 dBuVariable digital gain: 0 to +12 dBMinimum level for 0 dBFS: +1 dBu, -1.2 dBVMicrophone In 9-12, front As AD, but:Input: XLR, electronically balancedInput impedance: 3.4 kOhmSignal to Noise ratio (SNR): 113 dB RMS unweighted, 116 dBAGain range: 54 dBMaximum input level, Gain +6 dB: +10 dBuMaximum input level, Gain +60 dB: -44 dBuCLIP LED: 0 dBFSSIG LED: -42 dBFSInstrument In 9-12, front As AD, but:Input: 6.3 mm TS jack, unbalancedInput impedance: 1 MOhmSignal to Noise ratio (SNR): 113 dB RMS unweighted, 116 dBAMaximum input level, Gain +6 dB: +21 dBuMaximum input level, Gain +60 dB: -33 dBuFrequency response @ 44.1 kHz, -0.5 dB: 2.5 Hz – 20.8 kHzFrequency response @ 96 kHz, -0.5 dB: 2.5 Hz – 25 kHzFrequency response @ 192 kHz, -1 dB: 1.7 Hz – 36 kHzDA - Stereo Monitor Output Phones (9-12)As DA, but:Output: 2 x 6.3 mm TRS stereo jack, unbalancedMaximum output level at 0 dBFS: +17 dBuMax power per channel @ 32 Ohm load, 0.02% THD: 200 mW (2.5 Vrms, +10 dBu)Signal to Noise ratio (SNR): 116 dB (AES17), 118 dBAOutput impedance: 2 OhmDA, Line Out 1-8, rearOutput: 6.3 mm TRS jack, servo-balancedSignal to Noise ratio (SNR) @ HiGain: 116.5 dB (AES17), 118.5 dBASignal to Noise ratio (SNR) @ +4 dBu: 116 dB (AES17), 118 dBASignal to Noise ratio (SNR) @ -10 dBV: 107 dB (AES17), 109 dBAFrequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHzFrequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.6 kHzFrequency response @ 192 kHz, -1 dB: 0 Hz – 77.5 kHzTHD+N: < -110 dB, < 0.00032 %Channel separation: > 110 dBOutput level switchable Hi Gain, +4 dBu, -10 dBVOutput level at 0 dBFS @ Hi Gain: +19 dBuOutput level at 0 dBFS @ +4 dBu: +13 dBuOutput level at 0 dBFS @ -10 dBV: +2 dBV (+4.2 dBu)Output impedance: 75 OhmMIDI1 x MIDI I/O via 5-pin DIN jacksGalvanically isolated by optocoupled inputHi-speed mode: Jitter and response time typically below 1 msSeparate 128 byte FIFOs for input and outputDigitalClocks: Internal, ADAT In, AES In, SPDIF In, Word Clock InJitter suppression of external clocks: > 50 dB (> 1 Hz)Effective clock jitter influence on AD and DA conversion: near zeroPLL ensures zero dropout, even at more than 100 ns jitterDigital Bitclock PLL for trouble-free varispeed ADAT operationSupported sample rates: 28 kHz up to 200 kHzDigital InputsAES/EBU1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992High-sensitivity input stage (< 0.3 Vpp)SPDIF compatible (IEC 60958)Accepts Consumer and Professional formatLock range: 27 kHz – 200 kHzJitter suppression: > 50 dB (> 1 Hz)ADAT Optical2 x TOSLINK, format according to Alesis specificationStandard: 2 x 8 channels 24 bit, up to 48 kHzDouble Speed (S/MUX): 2 x 4 channels 24 bit 96 kHzQuad Speed (S/MUX4): 2 x 2 channels 24 bit 192 kHzBitclock PLL ensures perfect synchronisation even in varispeed operationLock range: 31.5 kHz – 50 kHzJitter suppression: > 50 dB (> 1 Hz)SPDIF optical (ADAT 1/2)1 x optical, according to IEC 60958Accepts Consumer and Professional formatLock range: 27 kHz – 200 kHzJitter suppression: > 50 dB (> 1 Hz)Word ClockBNC, not terminated (10 kOhm)Switch for internal termination 75 OhmAutomatic Double/Quad Speed detection and internal conversion to Single SpeedSteadyClock guarantees super low jitter synchronization even in varispeed operationNot affected by DC-offsets within the networkSignal Adaptation Circuit: signal refresh through auto-center and hysteresisOvervoltage protectionLevel range: 1.0 Vpp – 5.6 VppLock Range: 27 kHz – 200 kHzJitter suppression: > 50 dB (> 1 Hz)Digital OutputsAES/EBU1x XLR, transformer-balanced, galvanically isolated, according to AES3-1992Output level Professional 4.2 Vpp, Consumer 2.4 VppFormat Professional according to AES3-1992 Amendment 4Format Consumer (SPDIF) according to IEC 60958Single Wire mode, sample rate 28 kHz up to 200 kHzADAT2 x TOSLINK, format according to Alesis specificationStandard: 2 x 8 channels 24 bit, up to 48 kHzDouble Speed (S/MUX): 2 x 4 channels 24 bit 96 kHzQuad Speed (S/MUX4): 2 x 2 channels 24 bit 192 kHzSPDIF optical (ADAT 1/2)Format Consumer (SPDIF) according to IEC 60958Sample rate 28 kHz up to 200 kHzWord ClockBNCMax. output voltage: 5 VppOutput voltage @ 75 Ohm termination: 4.0 VppOutput impedance: 10 OhmFrequency range: 27 kHz – 200 kHzGeneralPower supply: Internal switching PSU, 100 - 240 V AC, 30 WattIdle power consumption: 15 WattTypical power consumption: 22 WattDimensions including rack ears (WxHxD): 483 x 44 x 242 mm (19" x 1.73" x 9.5")Dimensions without rack ears/handles (WxHxD): 436 x 44 x 235 mm (17.2" x 1.73" x 9.3")Weight: 2.8 kg ( 6.2 lbs)Temperature range: +5° up to +50° Celsius (41° F up to 122°F)Relative humidity: < 75%, non condensing
Pricezł8,317.81
