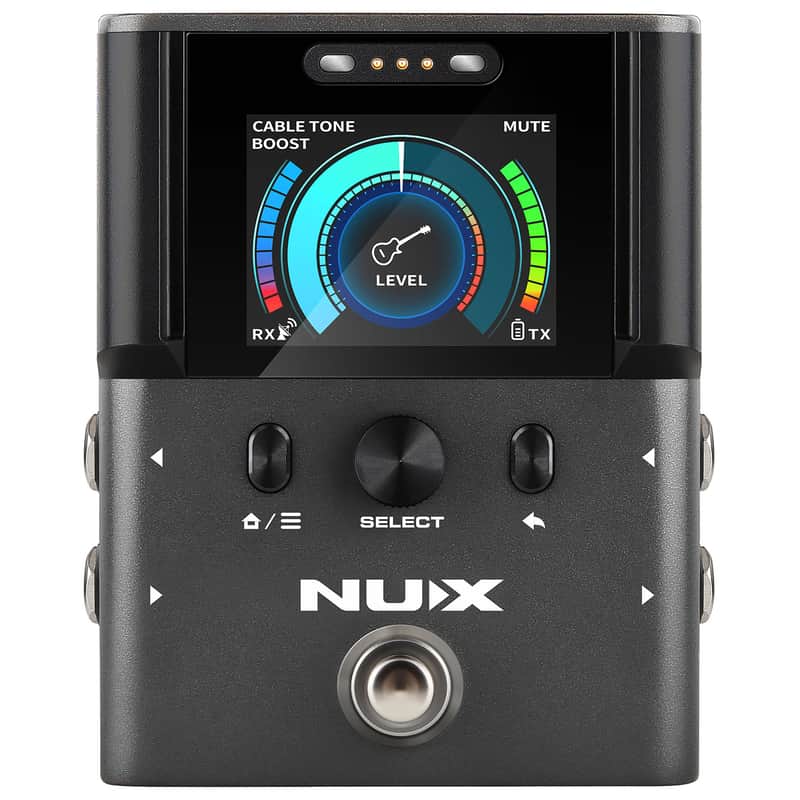

B-8 is the instrument wireless system re-defined, comprising a floor pedal receiver and a rechargeable transmitter pack. Operating on the 2.4GHz radio band, the B-8 offers a variable buffer to choose between higher reception stability or lower latency (as low as 2.5ms). The signal is encoded as 48kHz 24-bit digital for clean and detailed audio output. The receiver pedal is powered by an included 9Vdc power adaptor and serves as a charging station for the transmitter pack, which can also be charged via USB if required. The pedal also includes a full colour multi-function display and an inbuilt tuner with several different modes and settings. There is even an option to personalise the start-up screen with a custom GIF image or animation. A switchable Cable Tone function offers the option of adding the tonal character of using a long guitar lead. A send-return loop is included for inserting effects and sending the buffered output to an amplifier or D.I balanced output to a mixing console. To drive amps or effects with a stronger signal, the B-8 also has an adjustable boost function. B-8 is not simply a wireless system but a complete problem-solving tool for guitar or bass players and is also suitable other instruments, with features to meet the most demanding requirements in a wide variety of setups.
Main Features
Operates on the license-free 2.4GHz band.
High quality 48kHz 24-bit digital audio
Up to 50m wireless range
Adjustable latency for signal stability
Selectable Cable Tone and boost functions
Inbuilt guitar / chromatic / strobe tuner functions
Send and Return effects loop
Output jack to amplifier or balanced XLR to mixer
Specifications
Power supply: 7-12Vdc 500mA (9Vdc adaptor supplied)
Battery: 3.7V, 500mAh rechargeable Li-po (Transmitter)
Battery life: up to 6.5 hours
Wireless range: 50m max.
Carrier frequencies: 2.4GHz band (2400-2483.5MHz)
Sampling format: 48kHz 24-bit
Frequency response: 20Hz - 20kHz
Latency: 2.5ms (lowest) to 8.7ms (most stable)
Input impedance: 1M ohm
Input level: +6.2 dBV, 5.78 Vp-p max (1 kHz at 1% THD)
THD +N: 0.01% @ 1kHz (typical)
Dynamic range: 122dB A-weighted (Output/Send)
Mute: -64dB
Dimensions : receiver: 122 x 95 x 60mm
Weight : receiver: 500g
Dimensions : transmitter: 73 x 49 x 23mm
Weight : transmitter: 63g
