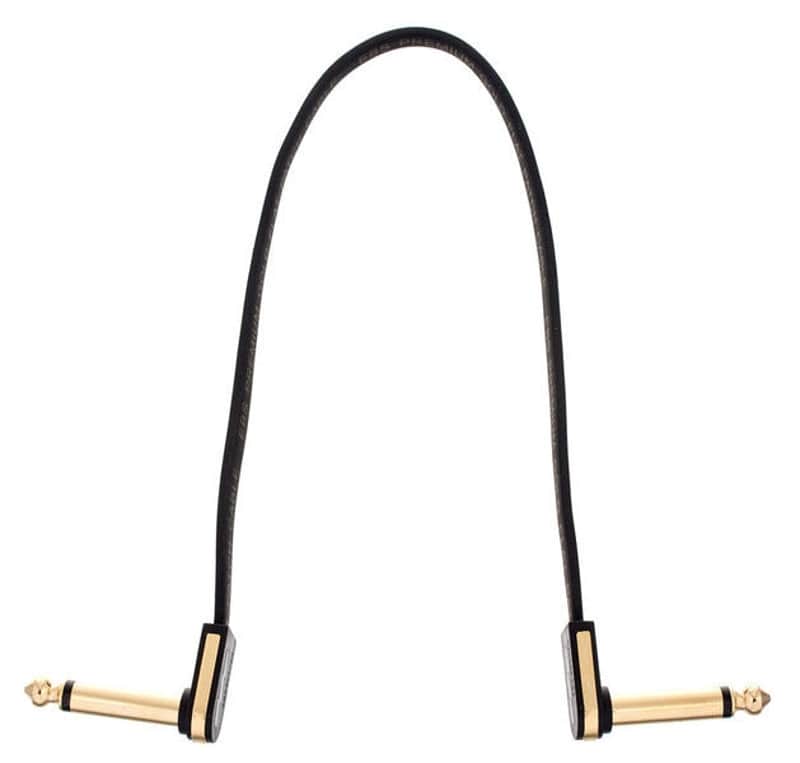

Shipping Policy: Please note that we currently ship within Canada only. Offers and orders from outside Canada will not be accepted. EBS PG-28 Premium Gold Flat Patch Cables feature contact housing made of 24 carat gold plated die cast welded zinc, as well as 24 carat gold plated 1/4" contacts.
These ultra compact and double shielded flat patch cables offer very low resistance and capacitance to keep your sound uncolored without signal loss.
Features
Die cast welded zinc contact housing
Gold plated connectors and housing
Copper conductors
Super compact angled contacts
Extremely well shielded
Very low resistance
Specifications
Contact House: 24 carat gold plated
Double Shield: Conductive PVC and copper shield protect effectively from both LF and HF interferences
Conductor: Flexible copper conductor low voltage audio signal system
Operating Temperature: -15ºC to +70°C
Outer Insulation: PVC (Polyvinyl Chloride)
Signal Copper Cores: 20 x 0.12 mm
Signal Insulation: PE (polyethylene)
Twisted Copper Shield: 45 x 0.12 mm
Capacitance Cond./Shield: < 10 pF/decimeters
Conductor Resistance: < 10 mOhm/decimeters
Dimensions: 5.3 x 2.5 mm (rectangular cable), 22.0 x 11.5 x 5.0 mm (contact house)
PriceC$20.99
1
10+ in stock
