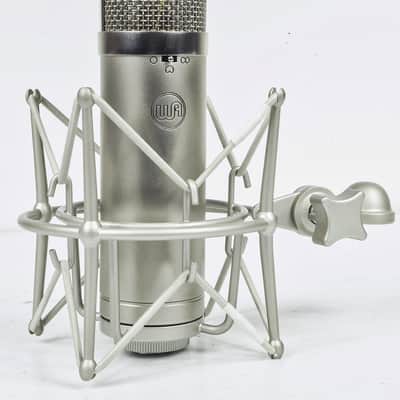

The WA-47jr is an FET transformerless version of the highly renowned classic ‘47 microphone that has been used on countless hit records for the last 50+ years. The WA-47jr is fully discrete, has 3 polar patterns and is designed for pro studio, home studio, live, and broadcast applications. The WA-47jr sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources.

Technical Specification

• FET transformerless '47 style condenser microphone.

• Custom true '47 capsule reproduction (k47 style)
  Model# WA-47-B-80v.

• Capsule makeup: Gold sputtered, dual large diaphragm, single backplate, 6 microns NOS mylar (PET film).

• Polar Patterns: Cardioid, figure-of-eight, and omnidirectional.

• Pad: -10db

• High-pass filter: 70Hz

• Self-noise: 9dBA

• Dynamic range: 138dBA

• Fully discrete signal path, Toshiba FET’s, Wima film capacitors, Panasonic electrolytic capacitors

• Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)

• Frequency Range: 20 Hz~20 kHz

• Sensitivity: 10mV/Pa or -40dB

• Output Impedance: 100 ohms

• Rated Load Impedance: ≥1kOhms

• Equivalent Noise: 10dBA (IEC651)

• External IEC grounded PSU

• Total Weight: 1.1 lbs

• Mic Diameter: 52mm

• Mic Length: 210mm

• Includes: Shockmount, hard mount, zipper storage pouch
