DELAY EFFECT FOR PEDAL GUITAR

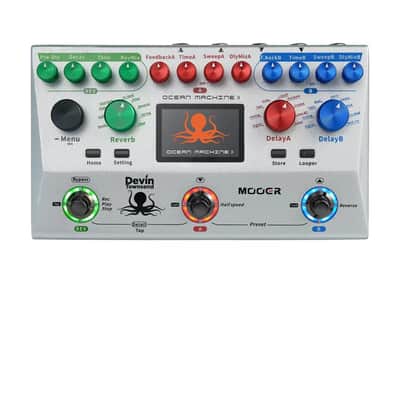

Double Delay/Reverb Effect for Electric Guitar

Devin Townsend Signature Model

Two separate delay modules with 9 different delay types for each module

Fifteen delay types in total

0-2,000 ms delay time

Ping Pong effect

Nine different reverb types and shimmer effect

Programmable parallel / serial effect chain with free choice of effect sequence

Freeze function

Tap tempo function

Looper with up to 120 seconds recording time

Customizable global EQ settings plus adjustable input and output levels

True bypass or DSP bypass (buffered)

Two operating modes: Play mode for quick parameter editing and Patch mode for quick selection of presets

Eight banks each with up to three presets

Updated MIDI function with clock sync to synchronize the pedal with other MIDI devices

Reverb section controls for Pre-Dly, Decay, Tone and R. Mix

Reverb rotary control for selecting between the reverb modes: Room / Hall / Plate / Dist-Verb / FL-Verb / Filter / Reverse / Spring / Mo

Delay A section control for Feedback A, Time A, Sweep A and DlyMix A

Delay A rotary control for selecting between the Delay A modes: Digital / Analogue / Tape / Echo / Liquid / Rainbow / Crystal / Low-Bit / Fuzzy

Delay B section Controls for Feedback B, Time B, Sweep B and DlyMix B

Delay B rotary control for selecting between the Delay B modes: Digital / Analogue / Tape / Real / Dyna / Galaxy / Mod / Try-Mod / Mod-Inv

Reverb footswitch

Delay A footswitch

Delay B footswitch

Support for external control with a wireless footswitch from the MOOER F4 series

Control buttons for Home, Setting, Store and Looper

Menu rotary button for navigating the preset menu

Status LEDs

Metal housing

6.3 mm mono jack L/R inputs

6.3 mm mono jack L/R outputs

MIDI in

MIDI thru

6.3mm TRS expression input

USB Type-C port

Power supply via included 9V DC power supply 2.1 mm x 5.5 mm barrel connector, center negative

Power consumption: 500 mA

Dimensions (L x W x H): 215
