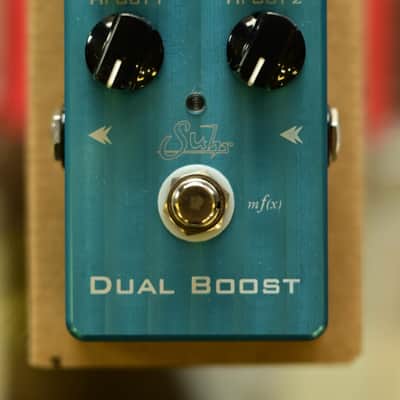

Suhr Dual Boost

Volume, boost & expression effect pedal
Built with ultra low distortion and low noise components selected for superior signal transparency, the SUHR Dual Boost pedal is a top notch, versatile 2-channel booster, housed within a compact enclosure. The internal charge pump circuit makes for a boost pedal with increased headroom and dynamic range.

The Dual Boost features two independent channels with independent Boost and Hi-Cut control. The channels are switchable via m(fx) technology : simply press and hold the footswitch for approximately one second to switch from Boost 1 (green) to Boost 2 (red).
The selectable global boost range switch sets the rage of the boost to either +10dB or +20dB.
No matter what your needs may be, the Dual Boost offers a comprehensive solution to preserving and boosting your signal without changing or coloring your original tone.

Dual Boost is relay true bypass, producing less popping when switching the pedal on and off.

Specs:

Input Impedance:1M Ohm
Output Impedance:< 1K Ohm
Power Connector:9Vdc regulated, center negative, 2.1mm x 5.5mm
Operating Voltage:4.5V to 9V (normal 9V)
Maximum Voltage:10Vdc
Reverse Battery Protection:Yes
Over Voltage Protection:Yes
Current Consumption:21mA (MAX)
Estimated Battery Life:19 Hours (ON) to 19.775 (OFF) [Alakline]
FX Link Connector:1/8" Mono
FX Link Max Voltage:3.3Vdc
Shield → Tip:Activate Boost 1
Shield → Ring:Activate Boost 2
ROHS Compliant:Yes
Dimensions:2.5”(W) x 4.5”(D) x 1.25”(H)
Weight:0.6lb
