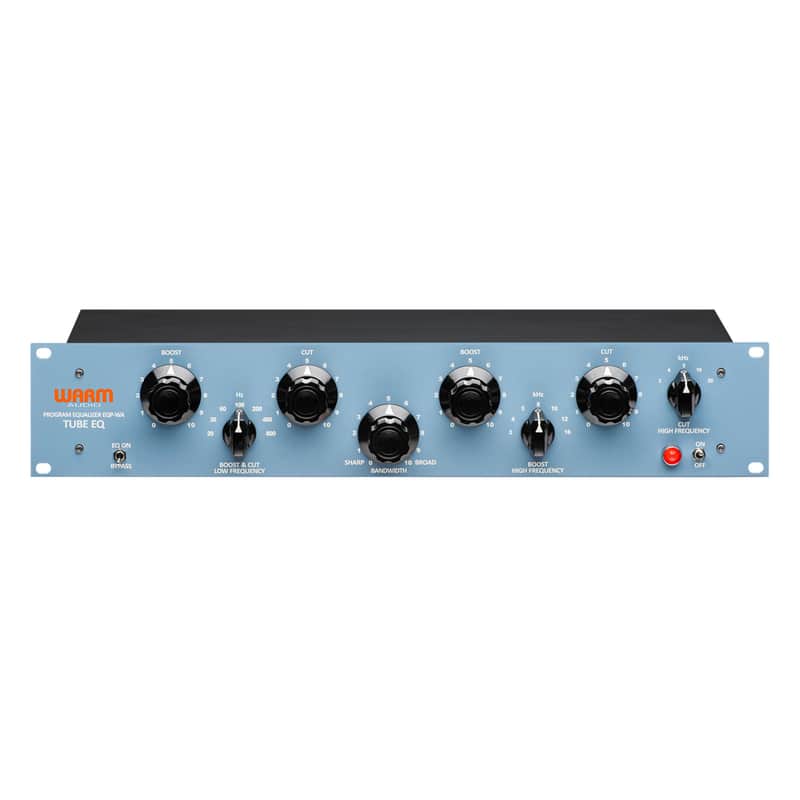

The Warm Audio EQP-WA GainMod Tube EQ for Gain Matching is a re-creation of the most renowned tube equaliser in studio history. This fully discrete Tube EQ is capable of grabbing euphoric sonics from any track and bring a brilliance and luster to mixes. The EQP-WA is a high-voltage tube equaliser utilsing CineMag USA Transformers and two premium vacuum tubes by Tung-Sol. Operating on two tubes: one 12AX7 and one 12AU7, this EQ delivers sonic richness and an open sound at all times. These tubes are socketed for easy swapping and replacement.

• Utilises Premium Grade Input & Output CineMag USA Transformers
• Tube Equaliser Based on Classic “Pultec” EQP-1A
• Premium High Voltage 12AX7 & 12AU7 Tubes
• CineMag Inductor EQ Section
• Bypassable EQ Section
• No Insertion Loss
• Inputs: 1x XLR & 1x TRS (Both Transformer Balanced)
• Outputs: 1x XLR & 1x TRS (Both Transformer Balanced)
• Frequency Response: 20 Hz – 50 kHz
• Boost & Cut Controls can be used Simultaneously for Phase Effect
• Low Frequency Boost: 20, 30, 60, 100, 200, 400, 800 Hz - 12 dB
• Low Frequency Cut: 20, 30, 60, 100, 200, 400, 800 Hz - 18 dB
• High Frequency Boost: 3, 4, 5, 8, 10, 12, 16 kHz - 18 dB
• High Frequency Cut: 3, 4, 5, 10, 20 kHz - 14 dB
• 5x Added Frequency Points for Greater Flexibility
• Switchable 115/230V IEC Power Input
• Dimensions: 19” x 3.5” x 6” (2U Rack Mountable)
