About this listing

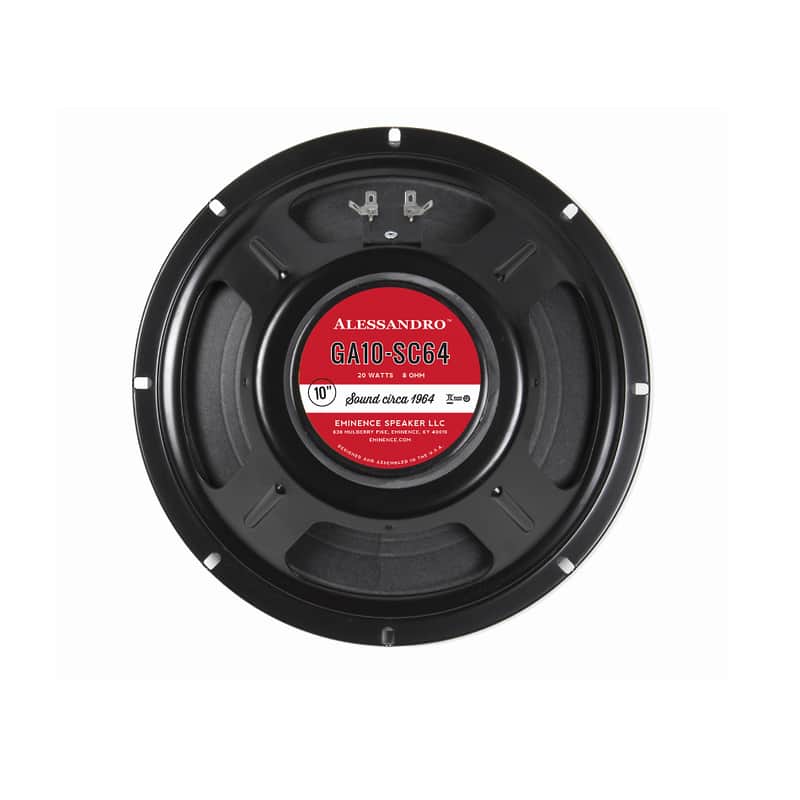

Tones of 1964 still ring true in this vintage voiced 10 inch speaker by amp guru George Alessandro. Very balanced with dynamic character, this ceramic 10 inch speaker offers tight, punchy tone with nice warmth, richness, and sparkling highs.SpecificationNominal Basket Diameter: 10", 254 mmNominal Impedance*: 8 OhmPower Rating*Program Power: N/AWatts: 20 WResonance: 100 HzUsable Frequency Range: 100 Hz - 5.5 kHzSensitivity*: 98.2 dBMagnet Weight: 15 oz.Gap Height: 0.25", 6.4 mmVoice Coil Diameter: 1", 25 mmThiele & Small ParametersResonant Frequency (fs): 100 HzDC Resistance (Re): 7.58 OhmCoil Inductance (Le): 0.48m HMechanical Q (Qms): 16.89Electromagnetic Q (Qes): 1.38Total Q (Qts): 1.28Compliance Equivalent Volume (Vas): 33.49 liters / 1.18 cu.ft.Peak Diaphragm Displacement Volume (Vd): 58.2 ccMechanical Compliance of Suspension (Cms): 0.18 mm/NBL Product (BL): 7.05 T-MDiaphragm Mass Inc. Airload (MMs): 14 gramsEfficiency Bandwidth Product (EBP): 72Maximum Linear Excursion (Xmax): 1.59 mmSurface Area of Cone (Sd): 366.1 cm2Maximum Mechanical Limit (Xlim): N/AMounting InformationRecommended Enclosure VolumeSealed: AcceptableVented: AcceptableDriver Volume Displaced: 0.027 cu.ft. / 0.77 litersOverall Diameter: 10.11", 256.8 mmBaffle Hole Diameter: 9.13", 231.9 mmFront Sealing Gasket: YesRear Sealing Gasket: N/AMounting Holes Diameter: 0.22", 5.6mmMounting Holes B.C.D.: 9.6", 243.8mmDepth: 3.924", 99.7 mmNet Weight: 3.3 lbs, 1.5 kgShipping Weight: 4.4 lbs, 2 kgsMaterials of ConstructionCoil Construction: Copper voice coilCoil Former: Paper formerMagnet Composition: Ferrite magnetCore Details: Non-vented coreBasket Materials: Pressed steel basketCone Composition: Paper coneCone Edge Composition: Paper cone edgeDust Cap Composition: Solid composition felt dust capTones of 1964 still ring true in this vintage voiced 10 inch speaker by amp guru George Alessandro. Very balanced with dynamic character, this ceramic 10 inch speaker offers tight, punchy tone with nice warmth, richness, and sparkling highs.SpecificationNominal Basket Diameter: 10", 254 mmNominal Impedance*: 8 OhmPower Rating*Program Power: N/AWatts: 20 WResonance: 100 HzUsable Frequency Range: 100 Hz - 5.5 kHzSensitivity*: 98.2 dBMagnet Weight: 15 oz.Gap Height: 0.25", 6.4 mmVoice Coil Diameter: 1", 25 mmThiele & Small ParametersResonant Frequency (fs): 100 HzDC Resistance (Re): 7.58 OhmCoil Inductance (Le): 0.48m HMechanical Q (Qms): 16.89Electromagnetic Q (Qes): 1.38Total Q (Qts): 1.28Compliance Equivalent Volume (Vas): 33.49 liters / 1.18 cu.ft.Peak Diaphragm Displacement Volume (Vd): 58.2 ccMechanical Compliance of Suspension (Cms): 0.18 mm/NBL Product (BL): 7.05 T-MDiaphragm Mass Inc. Airload (MMs): 14 gramsEfficiency Bandwidth Product (EBP): 72Maximum Linear Excursion (Xmax): 1.59 mmSurface Area of Cone (Sd): 366.1 cm2Maximum Mechanical Limit (Xlim): N/AMounting InformationRecommended Enclosure VolumeSealed: AcceptableVented: AcceptableDriver Volume Displaced: 0.027 cu.ft. / 0.77 litersOverall Diameter: 10.11", 256.8 mmBaffle Hole Diameter: 9.13", 231.9 mmFront Sealing Gasket: YesRear Sealing Gasket: N/AMounting Holes Diameter: 0.22", 5.6mmMounting Holes B.C.D.: 9.6", 243.8mmDepth: 3.924", 99.7 mmNet Weight: 3.3 lbs, 1.5 kgShipping Weight: 4.4 lbs, 2 kgsMaterials of ConstructionCoil Construction: Copper voice coilCoil Former: Paper formerMagnet Composition: Ferrite magnetCore Details: Non-vented coreBasket Materials: Pressed steel basketCone Composition: Paper coneCone Edge Composition: Paper cone edgeDust Cap Composition: Solid composition felt dust cap
PriceA$190.81
+ A$74.54 Shipping
30-Day Return Policy
Enjoy peace of mind with your new gear
