Grids (THT Clone) - Mutable Instrument | Algorithmic Trigger Generator| 16HP Eurorack DIY - Unique Panel

This module is a 16HP clone of the Mutable Instruments Grids module using Through-hole components and an Arduino Nano board. This version was designed by Kristian Blåsol as a faithful recreation of the original, maintaining identical functionality and behavior.

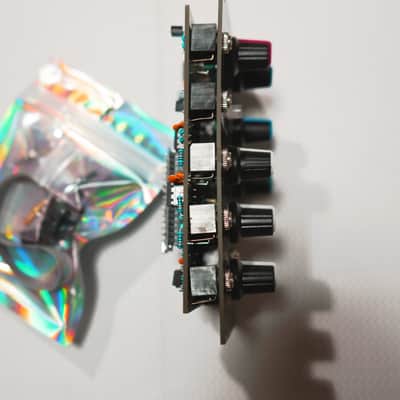

This module is deeper (28mm) than the now discontinued factory-built Grids. Panel is unique (i made it).

Grids is a three-channel algorithmic trigger generator that produces evolving drum patterns derived from compressed rhythm maps.
Each output channel corresponds typically to Kick (CH1), Snare (CH2), and Hi-Hat or Percussion (CH3) | though endless variations and reinterpretations are possible.

Main features

• Clock input and reset trigger input
• Internal clock (40–240 BPM, pauses below 40 BPM)
• Tap tempo / beat indicator button (can be configured as reset indicator)
• Latitude / Longitude knobs with CV inputs (0–5V) controlling rhythmic distribution
• Randomness control with CV input (0–5V) for pattern variation
• Pattern density controls for each of the 3 channels with CV inputs (0–5V)
• 3 trigger and accent outputs (5V)
• Selectable clock resolution (24ppqn / 8ppqn / 4ppqn)
• Optional layout with Clock / Reset outputs instead of Accent 2 & 3
• Trigger or Gate output mode
• Hidden 3-channel Euclidean sequencer mode

| 16HP | 28mm deep |

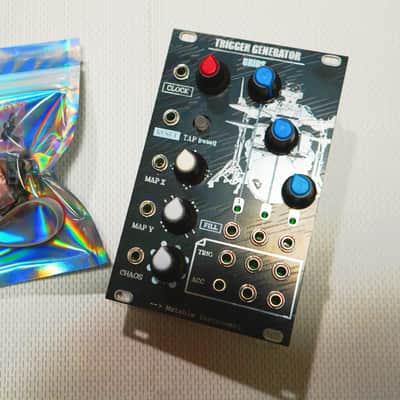

Module is in perfect condition. Comes complete with screws and connection cables. Used only in a non-smoking studio. Contact me for any information or to benefit from shipping costs more suited to your location (most often cheaper than those announced). Serious buyer only, thank you.
