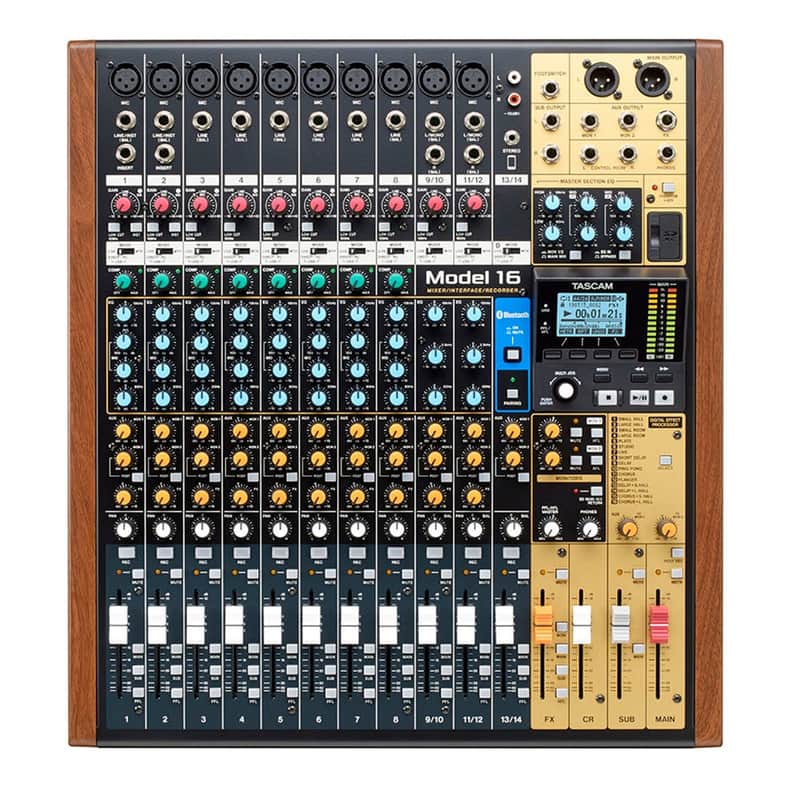

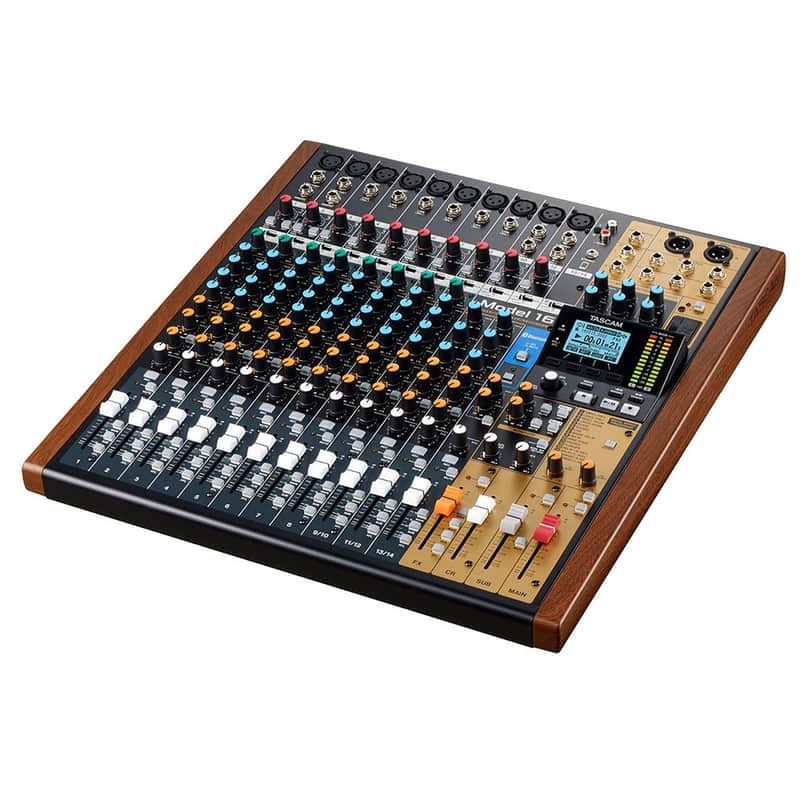

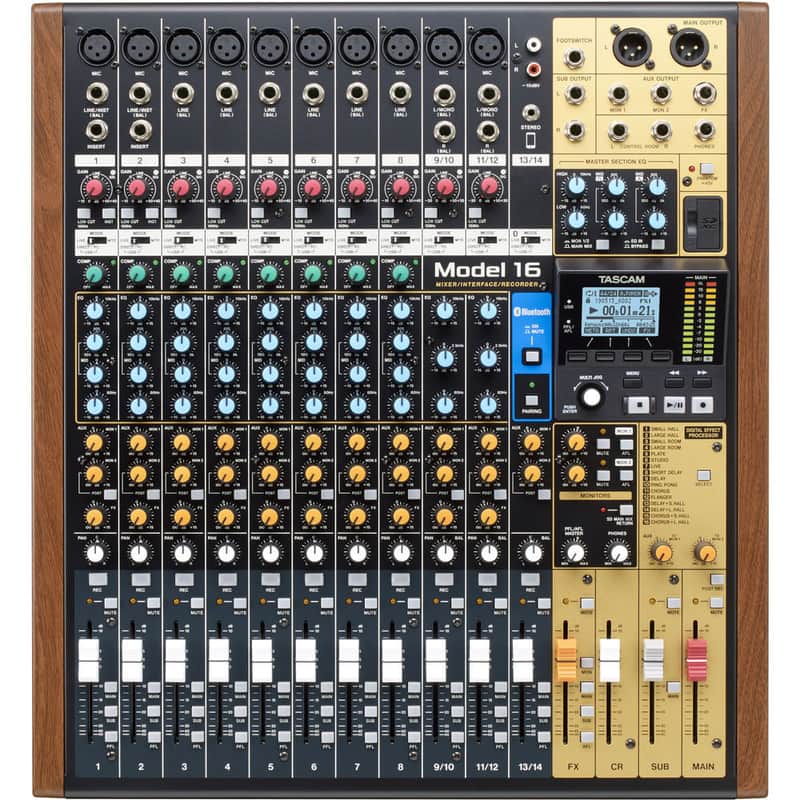

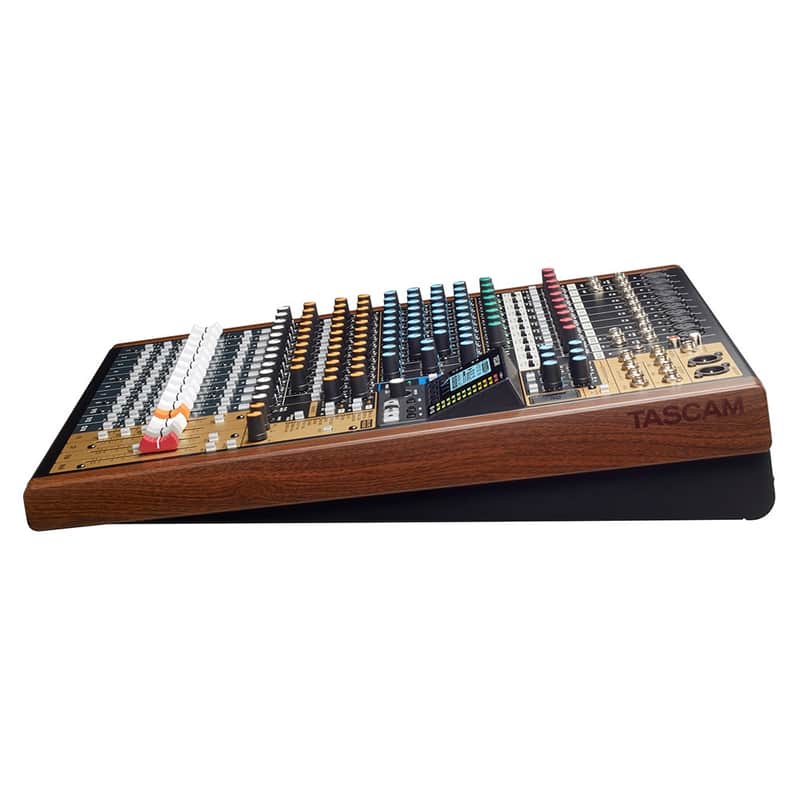

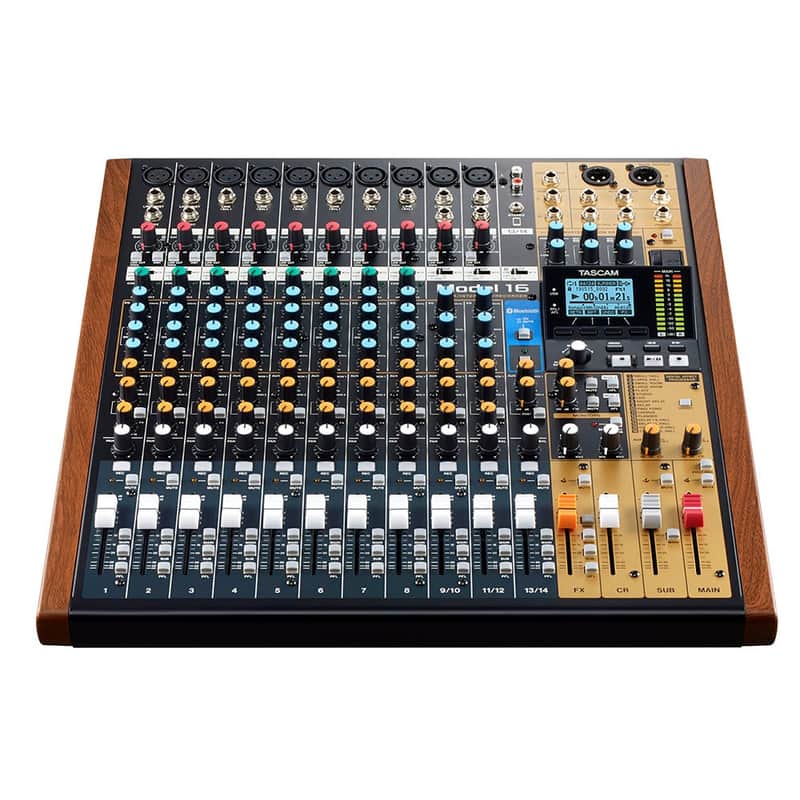

The Tascam Model 16 Digital Mixer is an all-in-one mixer that brings the flagship Model 24's powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a full-featured small format mixer that combines the warmth of analog with a digital workflow.
The Tascam Model 16 Digital Mixer is an all-in-one analog mixer, multi-track digital recorder and audio interface. It is the perfect mixing solution for small format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless. With the Tascam Model 16, your perfect mix has met its match.
14 Inputs for Complete Flexibility14 Easy-to-access top-panel inputs provide flexible options for microphones or instrument connections, including 10 Mic/14 Line/2 Inst to allow easy access for connecting microphones, instruments or other audio sources for live recording or mixing. A Bluetooth 5.0 enabled Stereo Input Source Channel also provides stereo RCA and 1/8" Stereo (selectable) jacks for streaming audio device level control.
Pristine Audio QualityMic Inputs 1 through 8 deliver pristine audio quality, featuring TASCAM's Ultra-HDDA (High De?nition Discrete Architecture) technology for pure, transparent natural tone with ultra-low noise.
Professional Channel Strip Control FeaturesA tactile Gain knob tops each channel for precise tweaking of input levels. A push-button Lo-Cut filter and three-position Input Selector (Live/PC/MTR) facilitate quick and precise control of input source signals. A 1-knob inline Compressor is available on inputs 1-8 as is a mid-range sweepable 3-band EQ.
Maximum Audio Routing Possibilities and Monitoring3 Aux bus (MON1, MON2[pre/post], FX) and PFL Listen round out the Tascam Model 16's pro-level signal path routing options. A Sub bus provides an additional stereo lineout source to the master SEND section. 3 AUX Outs let you route the audio signal for stage monitoring, or to external gear such as outboard effects, signal processors or headphone mixes. And the Footswitch control jack provides additional monitoring and control features.
Powerful Internal 16-Track Multi-track Digital RecorderThe Tascam Model 16's MTR section features a powerful internal 16-Track Multi-track recorder, capturing 14 Inputs and 2 Main Mix simultaneous tracks of audio to an internal SD card in pristine 24-bit/48 kHz quality. Record anything from live performance to rehearsals, worship events, spoken word and meetings, as well as perform overdubs and punch-in/out quickly and easily. Recorded tracks can be immediately mixed, mastered or exported to a computer for further editing, formatting and publishing.
High-Quality Internal Audio InterfaceAn internal 16 input/14 output USB audio interface captures audio at a 24-bit/48 kHz sampling rate for recording or playing back from an external DAW (digital audio workstation). The new generation TASCAM USB driver delivers the minimum size of the audio buffer which can be set to as low as 4 samples, resulting in extremely low latency and the highest level of efficiency when recording audio.
Versatile Input CapabilityUsing the channel Mode switch, each channel can select the input source as needed. This allows a super flexible input configuration to be selected where some inputs can be live, other inputs can play tracks from the internal MTR, while other inputs can play tracks from a computer via USB, all simultaneously.
16 Editable Multi-EffectsThe Tascam Model 16's versatile Effects Section offers 16 editable and foot-controllable multi-effects, including reverb, delay, chorus and flange.
4-Band Master EQA 4-Band EQ with mid-range sweepable, wide/narrow Q can be dialed in for crafting the perfect mix, assignable to MAIN outs or MON1/2 outs as you like.
Tascam Model 16 Digital Mixer Features
16-Track multi-track recorder (WAV, up to 48kHz/24-bit) to SD, SDHC and SDXC cards (Class 10 or higher required)
Punch in/out capability (up to 8 tracks simultaneously)
Built-in USB Audio Interface to send/receive (16-in/14-out) audio data to/from DAW
14 Inputs (10 Monaural XLR/TRS balanced and 2 Stereo-paired TRS balanced)
10 Mic Pre-amps utilizing TASCAM Ultra-HDDA Mic Pre-amp technology (CH 1 thru 8)
Pre-amp Gain Controller with Signal/Over-load Indicator (CH 1 thru 12)
Input Mode switch (LIVE/USB/MTR) per input channel
1-Knob compressor (CH 1 thru 8)
3-Band EQ with a sweep-able mid-range frequency (CH 1 thru 8)
100Hz Low-cut Filter (CH 1 thru 12)
Phantom Power (+48V) for all XLR inputs
3 AUX Outputs (MON 1[pre], MON 2[pre/post], FX[post])
Mute, MAIN/SUB, PLF switches per input channel
Bluetooth® 5.0 input supporting both AAC and SBC codecs
LINE Inputs via RCA Pin and 1/8" Stereo Mini jacks (CH 13/14)
Hi/Lo shelf, wide and narrow-Q semi-parametric EQs (for Main and SUB outputs)
16 TASCAM Effects like reverb, delay, chorus and flange
MAIN Output via XLR balanced and SUB Output via TRS balanced connectors
12-Segment LED Output Level Meters
1 Stereo Output for Control Room
1/4" Stereo Headphone Output
REMOTE connector for a Foot Switch (TASCAM RC-1F)
Self-emitted buttons for key operations such as REC and Play for better status legibility
Comprehensive simplified menu tree
Multi Jog-dial for quick menu operation
19-Inch rack mountable with optional Model 16 rackmount kit
FAUX wood Side Panels (Removable)
Tascam Model 16 Digital Mixer Specifications
Recording Section:
Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB), (Class 10 or Higher Required)
File System: SD Card: FAT16, SDHC Card: FAT32, SDXC Card: exFAT
Recording File Format: WAV(BWF)
Playback Format: WAV, BWF
Sampling Frequency: 44.1k / 48k Hz
Bit Depth: 16 / 24 Bit
Maximum Recordable Channel Number: 16-Ch (14-Ch + 2 Stereo Mix)
Audio Inputs:
MIC IN: CH1 to 8, 9/10, 11/12
: XLR 3-31 (1: GND, 2: HOT, 3: COLD, Balanced)
Maximum Input Level: +10dBu
Nominal Input Level: -8dBu
Minimum Input Level: -58dBu
Gain Adjustable Range: 0 to 50dB
Input Impedance: 1.8k Ohm
Phantom Power Supply: +48V
LINE IN: CH1 to 8, 9/10, 11/12
Connector: 1/4" (6.3mm) TRS Phone Jack (T: HOT, R: COLD, S: GND, Balanced)
Maximum Input Level: +22dBu
Nominal Input Level: +4dBu
Gain Adjustable Range: -10 to +40 dB: CH 1 to 8, +20 to +30 dB: CH 9/10 and 11/12
Input Impedance: 22k Ohm
INST IN: CH 1 and 2
Connector: 1/4" (6.3mm) TRS Phone Jack (T: HOT, R: GND, S: GND, Unbalanced)
Maximum Input Level: +22dBu
Nominal Input Level: +4dBu
Gain Adjustable Range: -10 to +40 dB
Input Impedance: 1M Ohm
INSERT: CH 1 and 2
Connector: 1/4" (6.3mm) TRS Phone Jack (T: Send, R: Return, S: GND)
Return (Ring
Maximum Input Level: +18dBu
Nominal Input Level: 0dBu
Input Impedance: 10k Ohm
Send (Tip):
Maximum Output Level: +18dBu
Nominal Output Level: 0dBu
Output Impedance: 100 Ohm
RCA INPUT:
Connector: RCA Pin Jack (Unbalanced)
Maximum Input Level: +8dBV
Nominal Input Level: -10dBV
Input Impedance: 10k Ohm
STEREO INPUT:
Connector: 1/8" (3.5mm) Stereo Mini Jack (Unbalanced)
Maximum Input Level: +8dBV
Nominal Input Level: -10dBV
Input Impedance: 10k Ohm
Outputs:
MAIN OUTPUT:
Connector: XLR 3-32 (1: GND, 2: HOT, 3: COLD, Balanced)
Maximum Output Level: +22dBu
Nominal Output Level: +4dBu
Output Impedance: 100 Ohm
SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT:
Connector: 1/4" (6.3mm) TRS Phone Jack (T: HOT, R: COLD, S: GND, Balanced)
Maximum Output Level: +16dBu
Nominal Output Level: -2dBu
Output Impedance:100 Ohm
PHONES OUT:
Connector: 1/4" (6.3mm) Stereo Phone Jack
Output Level: 80mW + 80mW (32 Ohm Loaded)
REMOTE: Compatible with TASCAM RC-1F Foot Switch
Connector: 1/4" (6.3mm) TS Phone Jack
USB Audio: for Connection with PC
Connector: USB B Type 4-Pin
Format: USB2.0 High-Speed, Mass-Storage Class/USB Audio Class
Sampling Rate: 44.1k / 48k Hz
Bit Depth: 16 / 24 Bit
INPUT: 16-Ch
Maximum OUTPUT: 16-Ch
Bluetooth®:
Version: 5.0
Output Class: Class 2 (Transmission Range: Approx. 33 Ft. / 10 m) (Transmission Range May Vary, Depending on Surroundings)
Supported Profile: A2DP, AVRCP 1.0
Supported A2DP Codecs: SBC, AAC
A2DP Content Protection: SCMS-T
Power: AC 100 to 240V, 50/60Hz
Power Consumption40 W
Dimensions (W x H x D): 430 × 112.9 × 463 mm / 16.9 × 4.45 × 18.2 inch (Including Knob Height and Protrusion)
Weight: 7 kg / 15.4 lb
Supported PC:
Windows:
Compatible Computers: Windows-Compatible Computer with a USB2.0 Port
CPU: Dual Core / 2GHz or Faster
Memory: 2GB or More
Driver: USB Audio Class 2.0, Model 24 ASIO2.0, WDM (MME)
Screen Resolution: 1280 × 800 Dots or More
Macintosh:
Compatible Computers: Apple Macintosh Computer with a USB2.0 Port
CPU: Dual Core / 2GHz or Faster
Memory: 2GB or More
Driver: Core Audio
Screen Resolution: 1280 × 800 Dots or More
Supported OS:
Windows: Windows 10 (November 2019 Update) , Windows 8.1 , Windows 7
Mac: MacOS Catalina , MacOS Mojave , MacOS High Sierra (10.13) , MacOS Sierra? (10.12) , OS X El Capitan (10.11)
iOS: iPadOS 14 New, iOS 14 New, iPadOS , iOS 13
Tascam Model 16 Digital Mixer Includes
1 x Tascam Model 16 Digital Mixer
1 x AC Cord
1 x Owners Manual
Manufacuter Warranty
