About this listing

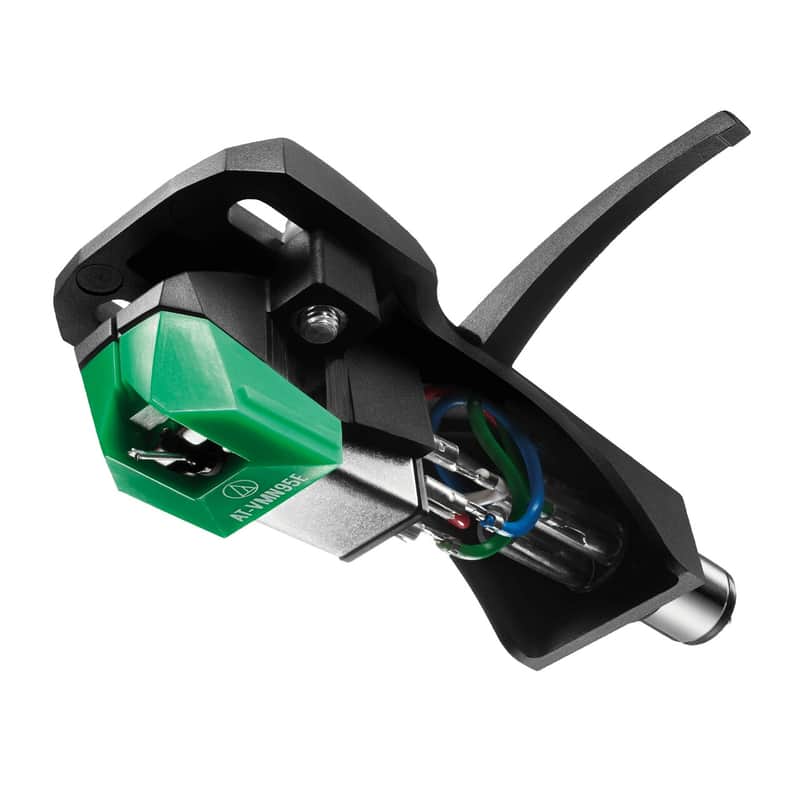

The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK head shell. Key Features VM dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus Aluminum cantilever Specially wound coils increase output voltage Durable low-resonance polymer housing Threaded inserts in cartridge body enable cartridge to be mounted to head shell with just two screws - no nuts or washers required Compatible with any AT-VMN95 replacement stylus Universal ½â€-mount headshell for 4-pin turntable cartridges Technical Specifications Cartridge & Stylus Frequency Response 20-22,000 Hz Channel Separation 20 (dB at 1 kHz) Vertical Tracking Angle 23° Vertical Tracking Force 1.8-2.2 g (2.0 g standard) Stylus Construction Bonded round shank Recommended Load Impedance 47,000 ohms Coil Impedance 3.3 k ohms (1 kHz) DC Resistance 485 ohms Coil Inductance 550 mH (1 kHz) Output Voltage 4.0 mV (1 kHz, 5 cm/sec.) Output Channel Balance 2.0 dB (1 kHz) Stylus Shape 0.3 x 0.7 mil elliptical Cantilever Aluminum pipe Static Compliance 17 x 10 - 6 cm / dyne Dynamic Compliance 7 x 10 - 6 cm / dyne (100 Hz) Mounting Half-inch Dimensions Cartridge 17.2 mm (0.68â€) H × 18.9 mm (0.74â€) W × 28.3 mm (1.20â€) D; Cartridge & Headshell 21.2 mm (0.83â€) H × 21.4 mm (0.84â€) W × 62.4 mm (2.46â€) D Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers Model AT-VM95E/H Mounting Feature Half-inch mount Recommended Load Capacitance 100 to 200 pF Replacement Stylus AT-VMN95E Stylus Size 0.3 x 0.7 mil Type VM Stereo Dual Magnet Weight Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz) Wire Used for Coil T.P. Copper
