Studer D19 Synchro 2010

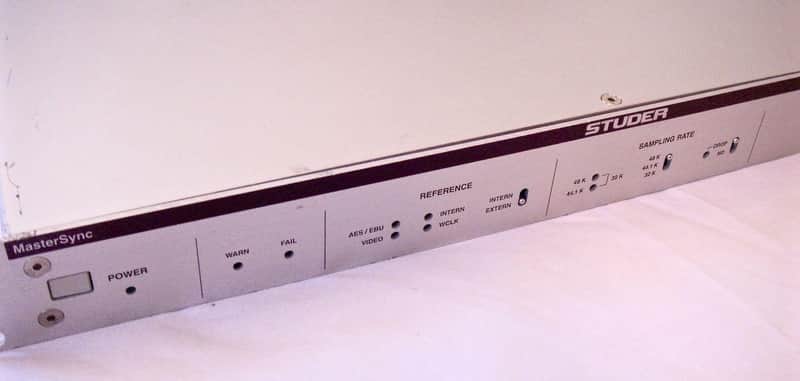

The Studer D19 MasterSync is housed in a 19', 1U enclosure.

Its generator section can be synchronized to a video, word clock, or AES/EBU

signal with automatical switchover. Should the external clock be missing, a

low-tolerance internal reference clock with auto matical and manual switcho-

ver is available.

The distributor section distributes one word clock signal to six outputs, and

up to four AES/EBU signals to 16 outputs. For the latter, combin ations of 1

to 16, 2 to 8, and 4 to 4 can be selected with a DIP switch located at the rear

panel.
