Description:

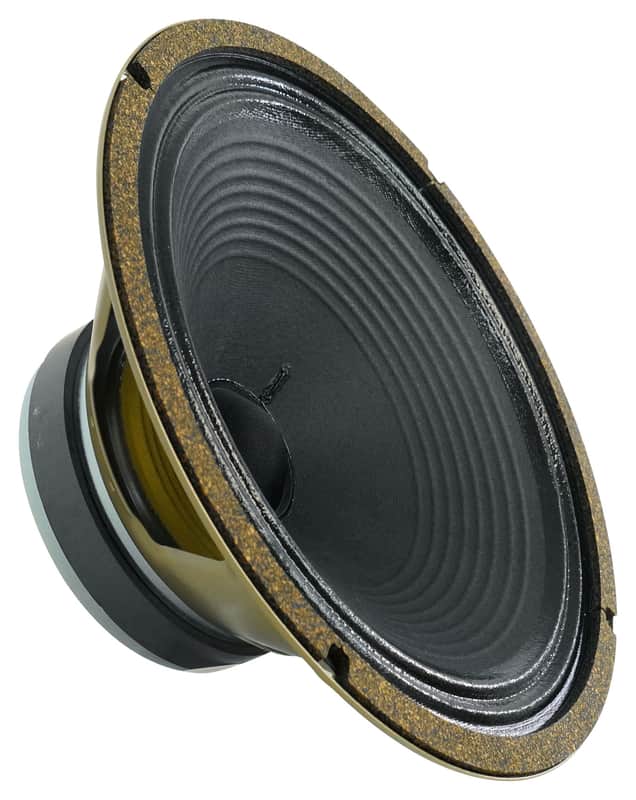

Originally re-released to celebrate our 70th Anniversary, the G12H guitar speaker remains hugely popular with players looking to recreate the classic sounds of 60s and 70s rock.
With a strong aggressive low-end and powerful low-mids the G12H penetrates any mix with an attacking upper mid-range and an ice-cool top- end. Used singly or in quartets it provides serious attitude to soft amp tones easily cutting through loud stage levels for chord work and imparting a hard edge to single notes. A favourite in the 'boutique' amplifier market the G12H guitar speaker is often used on its own or paired with a Celestion Blue or Gold for a full-bodied sound that adds ceramic attitude to the chime of an Alnico speaker.
Specifications:
Nominal diameter: 305mm / 12in
Power rating: 30W
Rated impedance: 8O
Sensitivity: 100dB
Chassis type: Pressed steel
Magnet type: Ceramic
Magnet weight: 1.42kg / 50oz
Voice coil diameter: 1.75in / 44mm
Voice coil material: Round copper
Frequency range: 75-5000Hz
Resonance frequency, Fs: 85Hz
DC resistance, Re: 6.7Ω and 13.1Ω
Mounting Information:
Cut-out diameter: 283mm / 11.1in
Diameter: 309mm / 12.2in
Magnet structure diameter: 156mm / 6.1in
Mounting hole dimensions: 7.9mm / 0.31in Ø
Mounting hole PCD: 297mm / 11.7in
Number of mounting holes: 4
Chassis depth (inc gasket): 97mm / 3.79in
Magnet depth: 38mm / 1.51in
Overall depth: 135mm / 5.3in
Unit weight: 4.7kg / 10.4lb
