MAW is a suite of effects designed to be your all-in-one vocal effector. With XLR or ¼” in and out, saturation, two effects banks, and a send/return to add your own effects, it’s equally at home on stage or in the studio, and can be used with a number of other sound sources. Effects include reverbs, delays, modulations, and pitch shifting.

Controls include:

• Independent switching for Saturation, Effect A, and Effect B
• Volume, Blend, and Tone for Saturation section

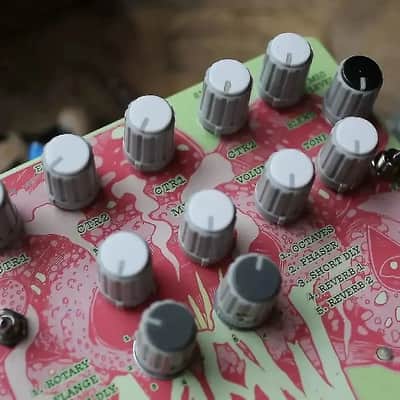

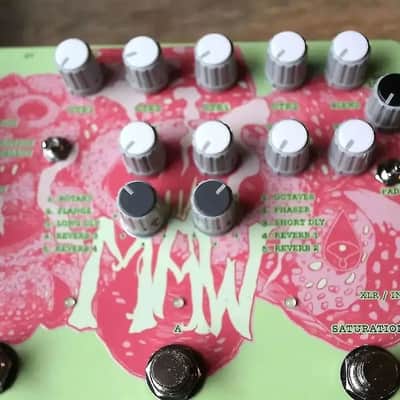

• CTL1, CTL2, Mix, and 5-way selector to choose effect and control its parameters, for both A and B
• Expression jacks to externally manipulate one knob each of both A and B
• Mic Level and Pad switch for XLR input

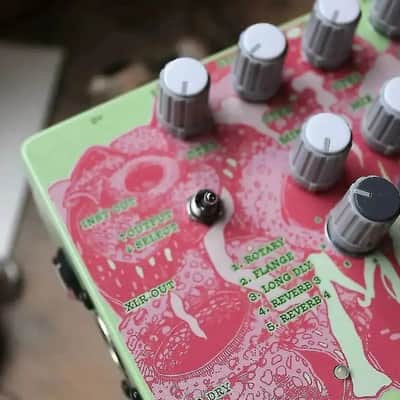

• Output Select to choose between XLR or ¼” out
• Dry XLR out to send unaffected signal separately

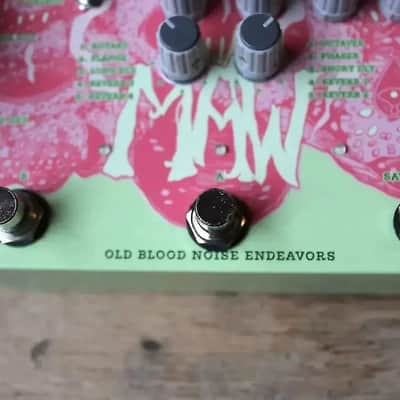

• Soft-touch footswitches with buffered bypass and trails

Note: MAW neither supplies nor passes phantom power. To use phantom power, it must be applied inline between the microphone and MAW’s XLR input.

For more information, see the MAW manual available here.

Requires 9V DC center negative 2.1mm jack power supply capable of 210mA (not included).

The art of MAW is by Jesse Weiss.
