• Pet-free and smoke-free home.
• First owner.
• Never gigged and never left the house.
• Tried for functionality only.
• No Velcro.

Sold without the original unmarked white box in another box that will be adequate for the task.

Private Sale Disclaimer
This item is sold by a private seller. The sale is made on an "as is" basis. No warranty, guarantee, or right of withdrawal is provided. Returns, refunds, or exchanges are excluded unless otherwise agreed or required by applicable law.

Website:

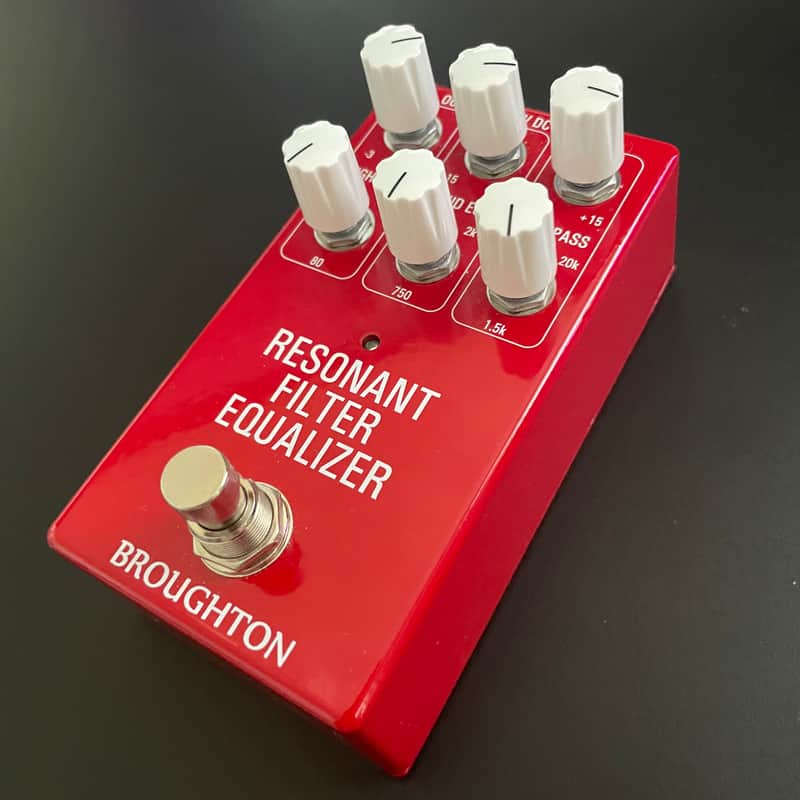

The Resonant Filter Equalizer creates unique tone control by combining a high pass filter, low pass filter, and middle equalizer. Both filters have their own resonance control, allowing a bump at the cutoff frequency, accentuating the effect of the filters. The semi-parametric middle eq includes a variable frequency control.

The resonance of the filters ranges from -3dB all the way up to +15dB. The -3dB setting is what you would expect from a standard, non-resonant filter. Adding resonance to the filters boosts the level of the cutoff frequency.

The filters have a slope of -12 dB/octave. The filters are the same in performance to the other standard Broughton filters, with the added ability of increasing resonance.

Some suggested uses:

Setting the HPF around 100 Hz with +5 dB of resonance, and a LPF set around 5k Hz can give a convincing cabinet sim. Add in the middle EQ for even more nuance. Experimenting with different frequencies and resonances can net a wide variety of speaker profiles.

Setting the HPF at the fundamental or first harmonic of your open E string (or B string) can make your low end tighter and more focused. Add resonance for more punch.

Setting the HPF to a lower frequency (30 to 60 Hz) with resonance can accentuate an octave down effect, while simultaneously removing unwanted sub frequencies.

Setting the LPF anywhere from 2k to 4k with added resonance provides an aggressive attack, giving more presence and character to your tone without having high end clank.

Setting the LPF at 10k with light resonance can give an airy Hi-Fi effect without having to boost all treble frequencies.

The input impedance is 1MΩ, and the output impedance is 100Ω.

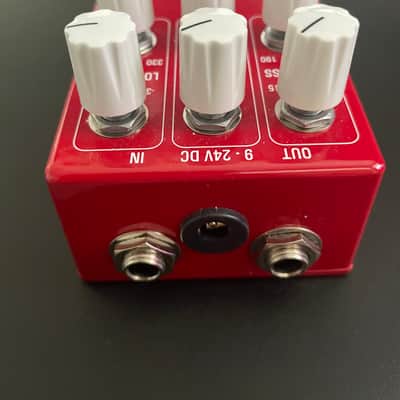

The Resonant Filter Equalizer requires a DC power supply (not included). The DC supply should be a standard Boss style connector, center negative polarity. It can accept 9 to 24 volts. Although 9 volts is sufficient for most applications, higher voltages will provide more headroom when using the pedal with hotter signals. If you intend to use this pedal with line level signals, you should use at least 12 volts for sufficient headroom. The current draw is approximately 20 mA. A 24 volt power supply may be purchased separately.

The Resonant Filter Equalizer has a true bypass switch.

Dimensions: 4.77" long x 2.6" wide

(Specs and description from the manufacturer's website)
