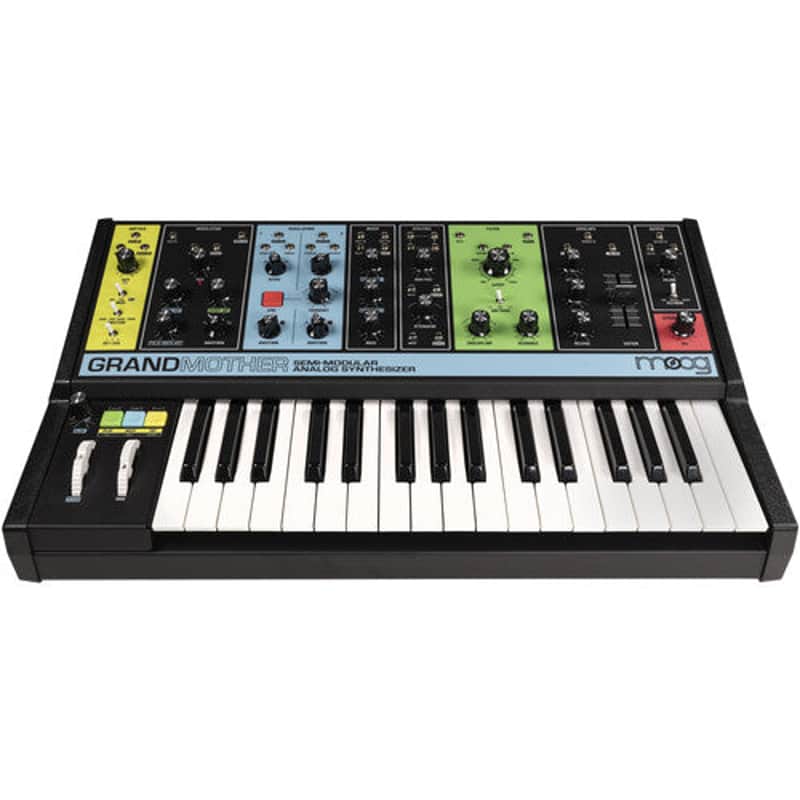

Shipping Policy: Please note that we currently ship within Canada only. Offers and orders from outside Canada will not be accepted.The multicolored Moog Grandmother is a semi-modular analog synthesizer with a 32-note Fatar keyboard, an integrated sequencer/arpeggiator, a spring reverb, and 41 patch points compatible with the Mother-32, DFAM, and other Eurorack modules. The semi-modular design is pre-wired internally for making sounds without patch cables and is fully controllable via MIDI.
Both oscillators offers selectable waveshapes and can be hard-synced, while the dedicated analog LFO features audio-rate capabilities. The classic 24 dB low-pass ladder filter provides a frequency range of 10 Hz to 20 kHz, while the patchable 1-pole high-pass filter offers additional harmonic shaping. Additionally, the Grandmother offers a standard ADSR envelope generator and is complemented by a built-in hardware spring reverb.
The onboard sequencer offers three memory slots and each sequence can retain up to 256 notes. Additional features include USB MIDI, MIDI in/out/thru via 5-pin DIN, a patchable bipolar attenuator, a patchable 4-way mult, and a 1/4" external input for processing guitars, drum machines and more. The Moog Grandmother ships with a power adapter, a power cord, a drawstring bag, and eight patch cables.
Features
"Modules" inspired by those found in Moog's classic large format Legacy Modular systems
Hardware spring reverb can be used to process external sounds
1/4" external audio input for guitars, drum machines, and more.
Semi-Modular: No patching is required
Easy to use arpeggiator and sequencer
Store up to 3 sequences with up to 256 notes each
Two analog oscillators with selectable waveshape and hard sync
Classic 4-pole Ladder filter (10 Hz to 20 kHz)
Patchable 1-pole high-pass filter
Analog ADSR envelope generator
Analog LFO with audio-rate capabilities
32-note Fatar keyboard with velocity
All normalized connections can be interrupted for full modularity
MIDI in/out/thru (5-pin DIN) and USB MIDI
Patchable bipolar attenuator
Works with Mother-32, DFAM, Subharmonicon Eurorack modular systems, and more
41 patch points with 21 inputs, 16 outputs and a parallel-wired 4-jack mult
Includes 8 patch cables (2 x 6, 12, 18, 24")
Specifications
Keyboard
32-Note Fatar Keyboard with Velocity
Polyphony
Mono
Multitimbral
Single
Synthesis Method
100% Analog
Components
Two Analog Oscillators with Selectable Waveshapes and Hard SyncClassic 4-Pole Ladder Filter: 10 Hz to 20 kHzPatchable 1-Pole High-Pass FilterEnvelope Generator: ADSRLFO with Audio-Rate CapabilitiesPatchable Bipolar AttenuatorMult: 4-jack
Patch Points
41 Patch PointsInputs: 21Output: 16Parallel-Wired Mult: 4-Jack
Effects
Spring Reverb with Integrated Reverb Tank
Sequencer
3 x Sequences, with Up to 256 Notes Each
Arpeggiator
Yes
Inputs
1/4" / 6.3 mm
Outputs
1/4" / 6.3 mm
MIDI Connectors
In: 5-pin DINOut: 5-pin DINThru: 5-pin DINUSB: Type-B
Power
Power Adapter: 12 VAC, 2 AVoltage: 100 to 240 VAC, 50/60 Hz
Dimensions
5.5 x 23 x 12.3" / 14 x 58.4 x 31.1 cm
Weight
16 lb / 7.3 kg
Packaging Info
Package Weight
22.4 lb
Box Dimensions (LxWxH)
25.8 x 16.4 x 8.8"
