About this listing
Raise your voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live
Overview

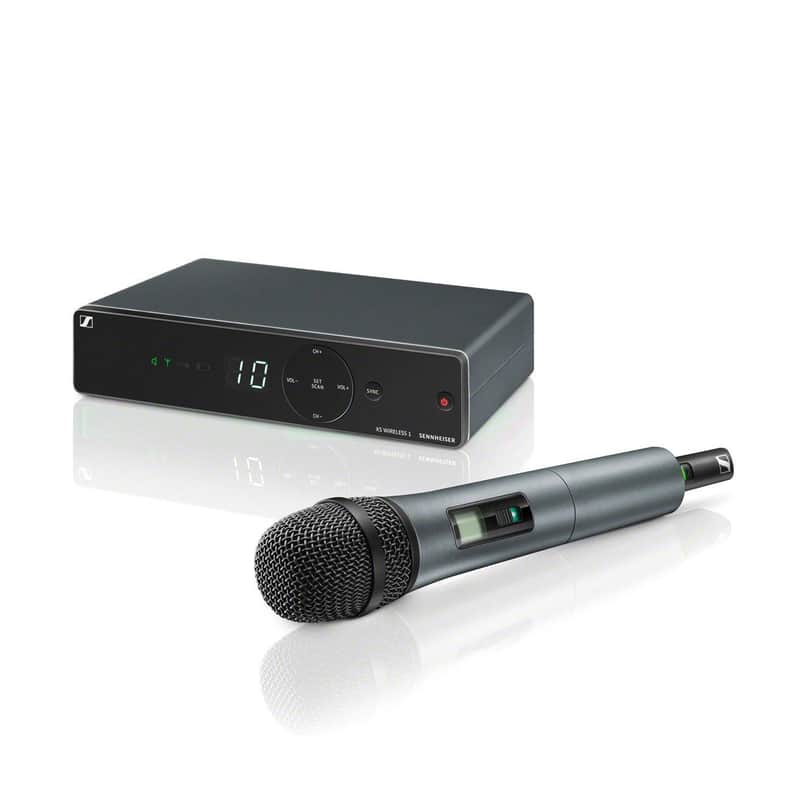

Raise your voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.
Features
Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels
A-Range 548-572 MHz
What's in the box?
1 receiver EM-XSW 1
1 handheld transmitter SKM 825-XSW or SKM 835-XSW
1 microphone clamp MZQ 1
1 power supply NT 12-5 CW
2 AA batteries
Technical Data
Dimensions approx. 200 x 42 x 127 mm
THD, total harmonic distortion ≤ 0.9%
Pick-up pattern cardioid
Signal-to-noise ratio ≥ 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Operating time approx. 10 hrs
Modulation wideband FM
Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing rugged ABS housing
Dynamic range dynamic
Frequency 8 frequency banks, each with up to 10 factory-preset channels
Frequency range A: 548-572 MHz, GB: 606-630 MHz B: 614-638 MHz C: 766-790 MHz D: 794-806 MHz E: 821-832 MHz, 863-865 MHz K: 925-937.5 MHz
Sensitivity < 3 μV at 52 dB(A)rms S/N
Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity 1.5 mV / Pa
Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range 45 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle double superheterodyne
Diversity principle Antenna switching diversity via internal antennas
Receivers
Weight approx. 340g
Power supply Receiver: 12 V DC nom. / 300 mA
AF frequency response Receiver: 50 to 16,000 Hz (–3 dB)
Microphone
Weight approx. 245g
Power supply Microphone: 2 AA size batteries, 1.5 V
AF frequency response SKM 825: 80-14,000 Hz SKM 835: 80-16,000 Hz
