BOSS guitar synthesizer The famous technology in a compact pedal ready to play
Hamamatsu, Japan, July 11, 2019 - With the SY-1 Synthesizer, BOSS now offers its latest guitar synthesizer technology in the classic compact pedal format. Equipped with a powerful polyphonic generator, the SY-1 offers 121 ultra reactive synth sounds ready to play in programming without any knowledge. Easily interface with a standard 1/4 inch, this versatile pedal easily allows any guitarist or bassist to incorporate into his music the famous BOSS synthesizer technology.
Featuring the same advanced technology developed for the SY-300, SY-1 offers a wide range of analog sound in a convenient compact pedal. Leads, pads, organs, basses and many others are available and a range of sound effects and rhythmic patterns. The sounds are organized into 11 types, each comprising 11 variations.
The special DSP and the latest innovations BOSS, the SY-1 offers performance low latency for natural and organic gaming experience. The Tone / Rate and Depth knobs allow quick adjustment synth sounds, including the note pitch for certain sounds. And thanks to the button on the back, the input circuit can be instantly optimized for guitar or bass.
Like all compact pedals BOSS, the SY-1 excels when connected in series in a chain of effects. But with its loop send / return and mix dedicated controllers, it is also possible to connect one or several pedals in parallel to the synthesizer sounds of SY-1. The Send jack is also used to direct output to send the synth and guitar sounds to a separate destination.
The SY-1 helps make the game with synthetic sounds more dynamic and expressive in many ways. sustainably Press the switch pedal allows to prolong the last sound played synth, and play over with a guitar sound. It is also possible to connect an external footswitch to tap tempo or octave jump, or an expression pedal for continuous control of the parameters Tone / Rate

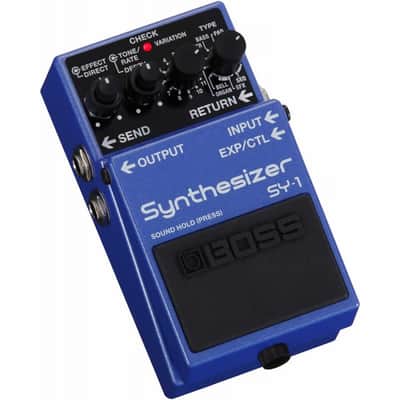

BOSS SY-1.: Synthesizer
-
bypass Buffered bypass
-Controls
Pedal switch
GUITAR / BASS switch
TYPE knob
VARIATION knob
TONE knob < br> DEPTH knob
EFFECT knob
DIRECT knob
-Indicator
cHECK indicator (Serves aussi as battery check indicator)
-Connectors
INPUT jack: 1 / 4-inch phone jack kind
OUTPUT: 1/4-inch phone type of
SEND jack: 1/4-inch phone jack kind
RETURN: 1/4-inch phone type of
EXP / CTL jack: Stereo 1/4-inch-type phone
DC IN jack
-Power Supply
Alkaline battery (9V, 6LR61)
AC adapter (PSA series: sold separately) < br> -Current Draw 85 mA

-Expected battery life under continuous use (These figures will vary DEPENDING on the actual terms of use.)
Alkaline: Approx. 3 hours
-dimensions
73 (W) x 129 (D) x 59 (H) mm
2-7 / 8 (W) x 5-1 / 8 (D) x 2 -3/8 (H) inches
-weight (Including battery) 450 g

1 lb
-Accessories
Owner's manual
Leaflet ( "USING THE UNIT SAFELY, "" IMPORTANT NOTES, "and" Information ")
Alkaline battery (9V, 6LR61)
-Options (sold separately) AC adapter
: PSA series Footswitch
: FS-5U
Dual footswitch: FS-6, FS-7
pedal Expression: FV-500H, FV-500L, EV-30, Roland EV-5
* 0 dBu = 0.775 Vrms
