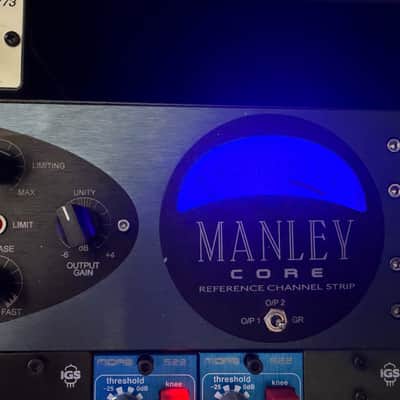

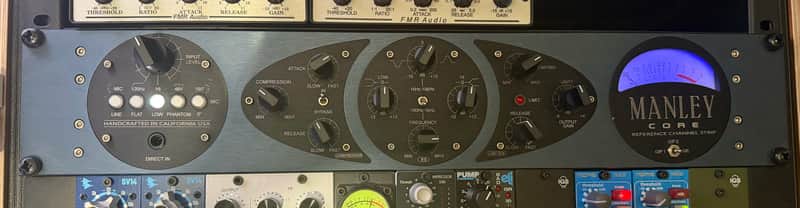

Manley Labs CORE Reference Channel Strip Purple

Manley Core Channel Strip Features

• Comprehensive channel strip based on the legendary , but with a more simple layout, and a nice price.
• Class A tube mic preamplifier
• Hand-wound transformers in Manley's standard tradition
• Direct Injection - A longtime favorite of discriminating DI-users
• ELOP compressor circuit with fixed 3:1 ratio
• The 3-Band Equalizer uses a very good sounding Baxandall-curve style LOW and HIGH frequency shelving bands complete with a sweepable mid-band
• Ultra-Fast attack FET limiter before output. Ensures no converter clipping will spoil a take
• Metering for input, output, and gain reduction (comp)

Manley Core Channel Strip Specifications

• Mic Preamp:
• • Type: Class A Valve
  • Phantom Power: +48V
  • Hi-Pass Filter: 120Hz
  • Gain Modes: Hi-Low
  • Line Input: Yes
  • Polarity / Phase: O-degrees, 180-degrees
• Compressor:
• • Type: ELOP, Valve
  • Ratio: 3:1
  • Controls: Threshold, Attack, Release
• Equalizer:
• • High and Low: Baxandall Shelving, fixed frequency
  • Mid-Band: Sweepable within two ranges
  • • 100Hz - 1kHz
    • 1kHz - 10kHz
• Limiter:
• • Type: FET
  • Attack: Ultra-Fast, fixed
  • Release: Adjustable
  • Threshold: Adjustable
• Metering:
• • Input
  • Output
  • Gain Reduction
