I am selling this amazing Moog MF-105 Moogerfooger MuRF pedal effect because I'm upgrading my studio equipment, I've purchased in the early 2000's, and it has been used only in my no-smoking studio environment, it is fully working and in perfect condition, no issues, no scratch.
Sorry no original box and PSU.
This item is sold "As-Described"

Description

The MF-105 MuRF is a very unique effect designed by Bob Moog. The MuRF provides sequenced filter effects that have not been heard before!
MuRF stands for "Multiple Resonance Filter Array", has 8 filters - their levels are controlled by 8 sliders. It looks like a graphic EQ, but the sound of the filters are very different: warm and resonant.
What is really unique is the ability to animate the levels of the 8 filters in up to 24 preset patterns. The rate of the patterns can be set by a knob, expression pedal, or plug a footswitch into the tap tempo input to match the rate to the tempo of your song. Rhythmic variations can be created by adjusting the levels of the filters. The Envelope control sets the shape of the modulation, which can be set for percolating techno rhythmic modulation or shimmering timbral morphing. Other controls include Input Drive, Output Level and Wet/Dry Mix.
Wide-ranging player parameters may be controlled from the panel knobs as well as from expression pedals or CV-compatible analog synthesis instruments. Components are rugged and long lasting, to withstand the rigors of stage and studio.

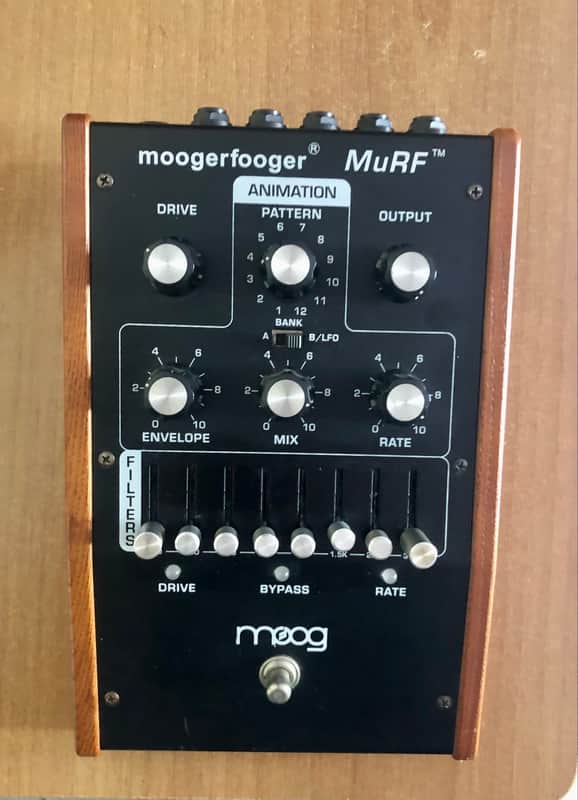

Front Panel Features:

• DRIVE Rotary Control: Adjusts the gain of the audio input circuit.
• OUTPUT Rotary Control: Adjusts the output level when the effect is active. Used for balancing the filtered signal with the bypassed signal.
• MIX Rotary Control: Sets the proportion of direct to effected signal that appears at the output.
• ANIMATION:
• • PATTERN Rotary Switch: Selects one of 12 Animation Patterns in each bank.
  • BANK Slide Switch: Selects which bank of Patterns is active.
  • RATE Rotary Control: Sets the Rate of the Pattern.
  • ENVELOPE Rotary Control: Sets the envelope shape of the patterns.
• FILTERS Slider Controls: Controls the gains of the following frequency bands: 200 Hz, 300 Hz, 450 Hz, 675 Hz, 1KHz, 1.5 KHz, 2.2 KHz, 3.4KHz.
• DRIVE LED: 3-color LED indicates the level of the Input signal. Green indicates a low-level signal, yellow indicates optimal signal level, and red indicates soft clipping.
• BYPASS LED: 2-color LED indicates effect status. Red indicates bypass, and Green indicates the effect is active.
• RATE LED: Indicates the Rate of the Animation Pattern. 0

Jack Panel Features:

• AUDIO IN: 1/4" Phone jack – accepts any instrument-level or line-level signal from –16 dBm to +4 dBm. Input impedance is 1 megohm.
• LEFT/MONO OUT: 1/4" Phone Jack carries the summed signal (left+right, all freq. bands) when Right Output is not connected, and carries the Left output signal (Freq. bands: 200 Hz, 450 Hz, 1 KHz, 2.2 KHz) when the right output is connected. Nominal output is –16 dBm to +4 dBm depending on setting of Output Level control when effect is active. Output impedance is 5,000 Ohms.
• RIGHT OUT: 1/4" Phone Jack carries the Right Output signal (Freq. Bands 300 Hz, 675 Hz, 1.5 KHz, 3.4 KHz). Nominal output is –16 dBm to +4 dBM depending on setting of Output Level control when effect is active. Output impedance is 5,000 Ohms.
• RATE, MIX, ENVELOPE, LFO/SWEEP are 1/4" TRS jacks that accept moogerfooger EP-1 (or equivalent) expression pedals, or control voltages from two or three-circuit 1/4" jacks.
• TAP/STEP IN: This tap tempo input accepts a normally open momentary footswitch for syncing the rate of ANIMATION to the tempo of the music.
