The Antelope Audio Orion Studio Synergy Core is a premium, high-performance Thunderbolt 3 and USB 2.0 rackmount audio interface. It functions as a 30x44 studio hub designed for low-latency recording, complex signal routing, and heavy onboard DSP processing.

Antelope Audio

+3

Comprehensive technical specifications and features for this interface include:

🎛️ Onboard Processing & Performance

Synergy Core Chips: Equipped with 6x DSP and 2x FPGA processors.

FX Processing Capacity: Handles up to 144 simultaneous real-time effect instances without taxing your computer's CPU.

Clocking Technology: 4th-Generation 64-bit Acoustically Focused Clocking (AFC) with oven-controlled crystal oscillators for jitter-free stability.

Conversion: Premium 24-bit/192 kHz AD/DA conversion.

Antelope Audio

+5

📉 Audio Quality Specifications

Monitor D/A Dynamic Range: 130 dB.

A/D Converters Dynamic Range: 124 dB.

D/A Converters Dynamic Range: 128 dB.

THD+N (Monitor D/A): -115 dB.

Equivalent Input Noise (EIN): -128 dBu.

🔌 Analog Inputs & Outputs

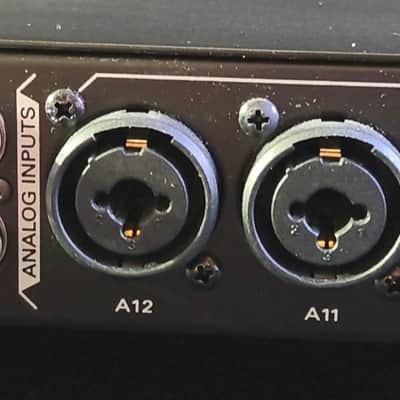

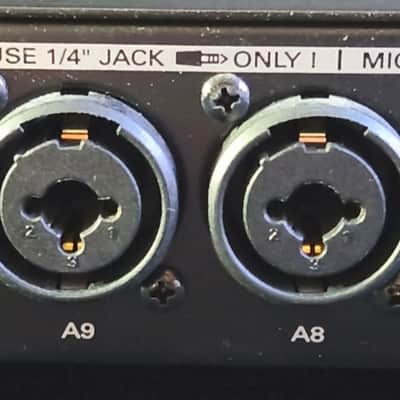

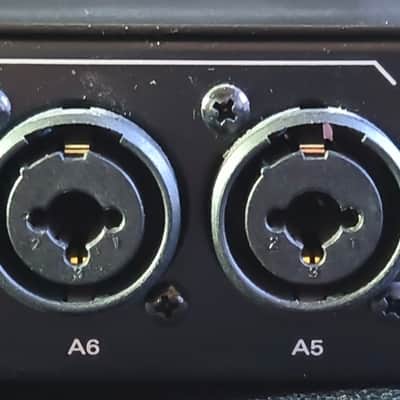

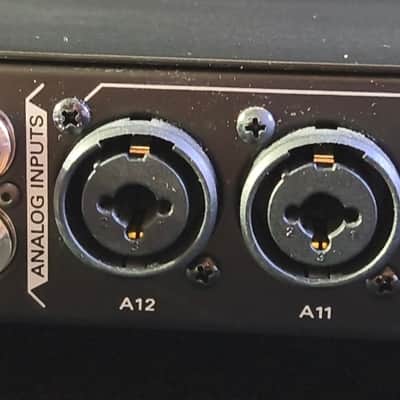

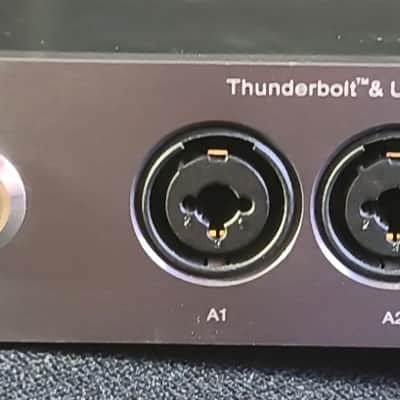

Preamps: 12 discrete ultra-linear microphone preamps providing 75 dB of gain. All 12 can function as Direct-In to bypass the preamp circuitry.

Hi-Z/Instrument Inputs: 4 of the 12 inputs accept Hi-Z signals for direct guitar tracking.

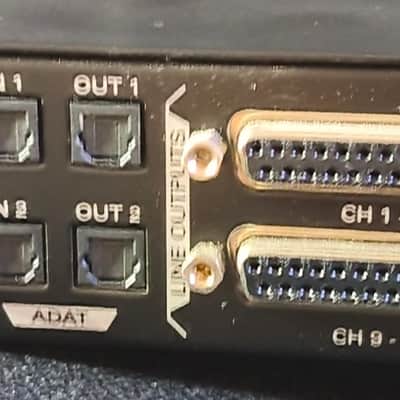

Analog Line Outs: 16 DC-coupled analog outputs via two D-Sub 25 connectors, perfect for CV control over modular synthesizers.

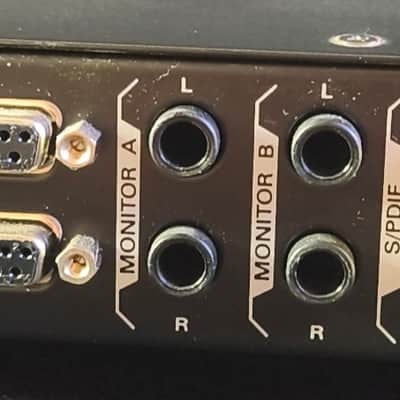

Monitor Outs: 2 independent stereo monitor pairs.

Headphone Outs: 2 independent stereo headphone outputs.

Reamp Outs: 2 dedicated transformer-based reamp outputs for sending pre-recorded DI guitar signals out to external amplifiers.

Inserts: 2 hardware analog inserts on TRS (for inputs 1 and 2).

Antelope Audio

+6

🌐 Digital & Computer Connectivity

Thunderbolt 3: Supports up to 32 channels of I/O.

USB 2.0 (Type-B): Supports up to 24 channels of I/O.

Dual Host Streaming: Allows the interface to connect to and stream audio between two computers simultaneously.

ADAT I/O: 2x ADAT optical ports providing up to 16 channels of I/O.

S/PDIF I/O: 1x RCA port providing 2 channels of I/O.

Word Clock: 1x Input and 1x Output via BNC connectors.

Antelope Audio

+4

🏗️ Physical & Electrical Specs

Form Factor: 1U Rackmount space.

Dimensions: 483 mm x 44 mm x 220 mm (19" x 1.7" x 8.6").

Weight: 3.1 kg (6.83 lbs).

Power Supply: External 18V DC input, consuming a maximum of 25 Watts.

💻 System Requirements

macOS: OS X 10.12 or newer (Intel or Apple Silicon machines equipped with Thunderbolt or USB ports).

Windows: Windows 10 or higher (x64) with native Thunderbolt 3 or USB hardware.

Note: An active internet connection is mandatory for initially activating the device.

Interfaz de audio Thunderbolt 3 y USB 2.0

32 canales

Incluye 50 efectos de estudio

FPGA integrado para procesamiento en tiempo real de efectos

Reloj Antelope de 64 bits centrado acústicamente

Audio envolvente e inmersivo, calibración de altavoces compatible con Dolby Atmos y funciones de monitorización (requiere actualización a través de Antelope Launcher).

Compatible con el control a distancia multicanal Antelope Audio MRC (art. n.° 569148)

12 preamplificadores de micrófono discretos con una ganancia de hasta 75 dB y alimentación phantom de +48V

4 entradas Hi-Z

2 salidas de monitorización estéreo con rango dinámico de 130 dB (puede funcionar en paralelo o en modo A / B)

2 salidas de auriculares estéreo independientes

2 salidas ReAmp

16 salidas de línea a través de conector DB25

Inserciones analógicas para entradas 1 y 2 (6.3mm TRS)

Entrada y salida S/PDIF (2 tomas RCA)

2 entradas y salidas ADAT

Entradas y salidas acopladas DC para enviar y recibir señales CV / Gate

Entrada y salida de Word Clock

Amplio panel de control de software con enrutamiento de audio flexible

Requisitos del sistema:

Windows 10 (64 bits) mínimo

Mac OS X 10.12 (se recomienda 10.14 Mojave)

Dimensiones: 483 x 220 x 44 mm (ancho x profundo x alto)

Peso: 3.1 kg
