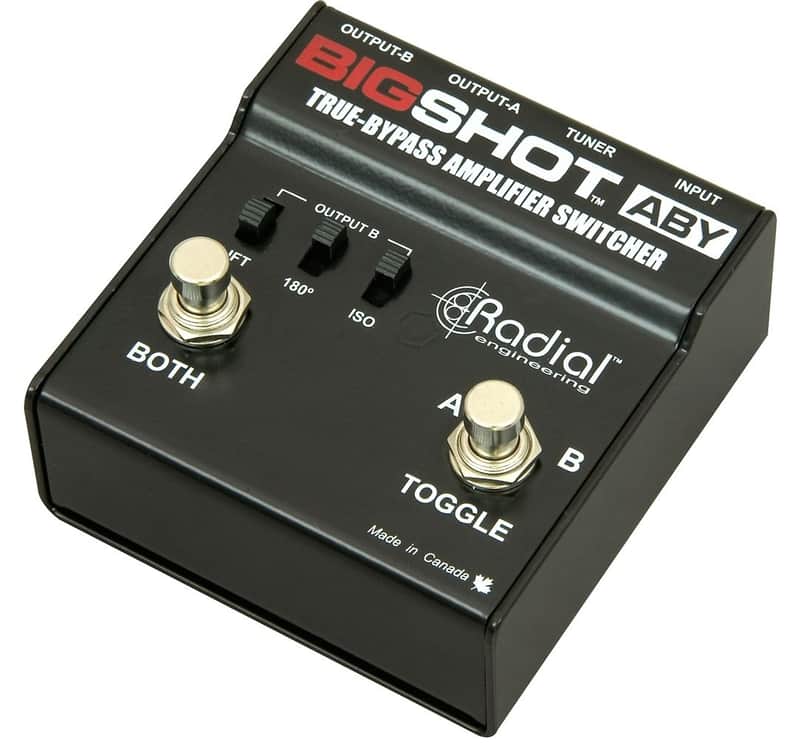

The BigShot ABY makes it easy to run two amps on stage, without introducing noise or altering your tone. The pedal has two latching footswitches that allow you to choose which amp is active, or run through both simultaneously. The second amp output features a ground lift and an isolation transformer that can be engaged to eliminate buzz and hum from ground loops, while a 180° polarity reverse switch ensures both amps play back in phase to avoid frequency cancellation. When powered by an external 9V supply or pedalboard power brick, LEDs provide instant on-stage visual feedback - when power is unavailable, the passive audio circuit still works unaffected. Best of all, the BigShot ABY is true-bypass device, without any tone-altering buffers between the guitar and the amplifier to ensure you retain the pure tone of your instrument.
True-bypass ABY amp selector with LED indicators
On-board transformer to eliminate hum & buzz
180° polarity reverse to phase-match amps
100% passive audio path, does not require power
Specifications
Audio circuit type: Passive, true bypass
Frequency response: 20Hz - 20KHz
Gain: -0.3db
Features: 180° polarity reverse, Ground lift
Input Connectors: 1/4"
Output Connectors: Two 1/4" outputs, switchable transformer isolated from Output-B
Extras: Tuner Output, ISO switch
Construction: 14-gauge steel
Finish: Durable powder coat
Size (L x W x D): 3.9" x 3.6" x 2" (99 x 91.4 x 50.8mm)
Weight: 1.25 lb (0.56 kg)
Shipping size (L x W x D): 6.25" x 4.25" x 3" (158.7 x 108 x 76.2mm)
Shipping weight: 1.55 lb (0.70 kg)
Power: 9VDC, center pole negative
Conditions: For use in dry locations only between 5°C and 40°C
