Mini Echocord completely overhauled with mods

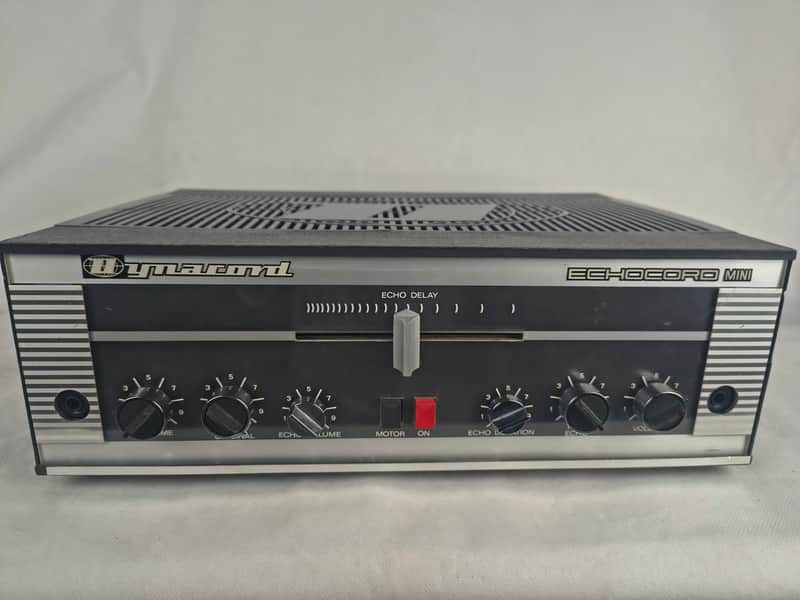

Dynacord Echocord Mini  Tape Echo inc. LO-out and wet out modification!

COMPLETELY OVERHAULED!

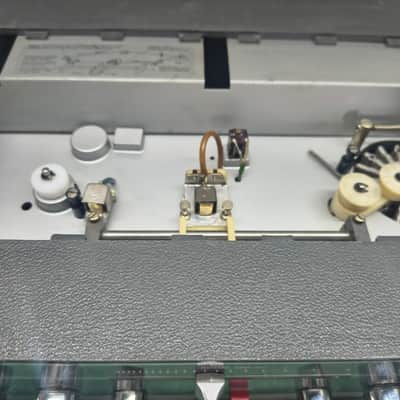

In beautiful condition with new tape, new rubber pinch roller(refurbished by me) 3 good plastic guidance rollers. Demagnetized and polished heads !

The plastic housing has been completely washed clean. Inside the housing everything has been made dustfree.

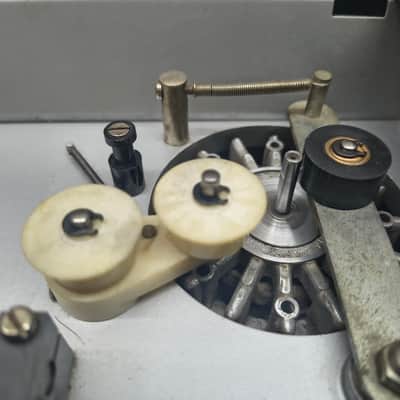

The Running mechanism is adjusted and cleaned. The motor shaft is polished and super smooth. All roller shaft holes are lubricated with oil. The messing shaft of the rubber pinch roller has been lubricated with oil.

The sliding mechanism is lubricated with PTFE and runs smoothly.

All mechanical parts have been cleaned !

The electronics have been tested.  All electrolytic capacitors (elco's) have been replaced, including the power supply!

All transistors have been replaced for more modern and quieter BC549 and BC559 types.

All internal open adjust potmeters have been replaced for closed new ones.

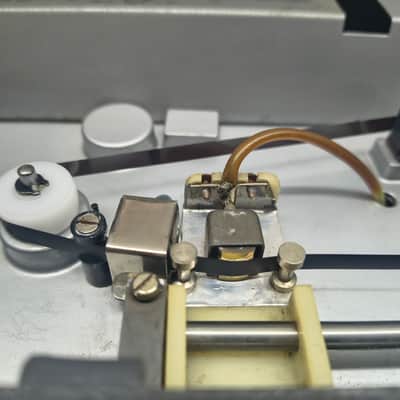

Shield is on the playhead and that reduces the humm of the interference of the AC motor significantly

The input/output DIN sockets has been replaced for 6.3mm JACKS so no more hassle with DIN to JACK cables. You can also choose LINE or GUITAR input (left input or right input). Line is louder and guitar softer in terms of input volume.

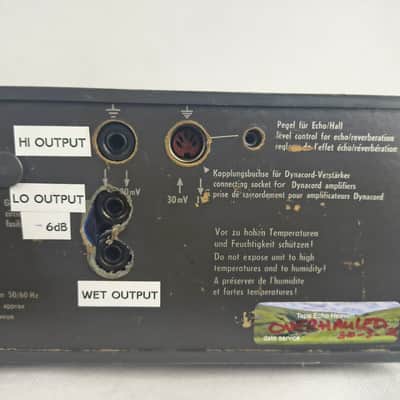

100% wet out modification is done. This means that you only have the echo signal without the direct sound of the input. So now you can eg record the echo effect separately on a track without the direct input sound. So you now have a choice of the normal output with echo and direct sound and 100% wet out only. You can use both outputs simultaneously. PAY ATTENTION ! The wet out only output is softer because the amplifier is bypassed so you will have to turn it up a bit on your mixer or amplifier. The advantage is that you have less noise with the wet out only output.

Also an lo input on the back and is handy for studio use !

Sounds fantastic again for a 45 year old machine !

The shipment is with a tracktrace link !

Included :

Printed manual

5 extra new tapeloops (RTM)

220v or 110v powercable

The unit can be switch from 230V to 120V

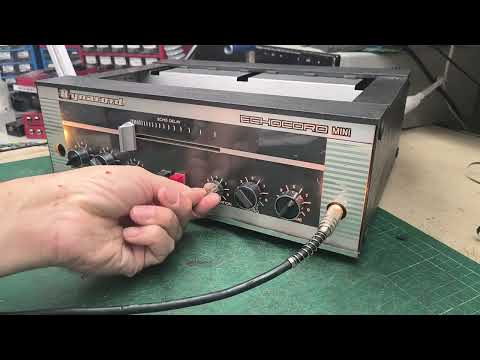

Thank you for watching and if you want to see and here the mini in action.... Check  Youtube link !
