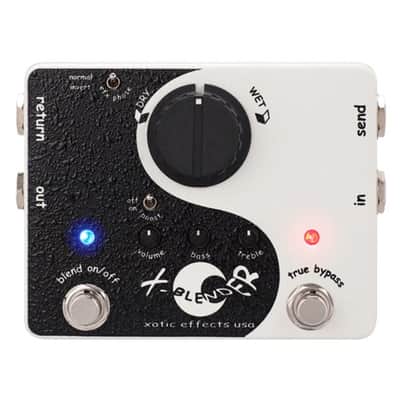

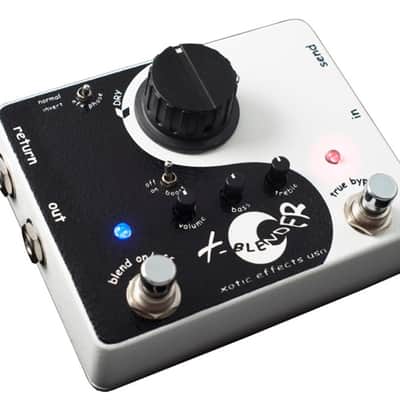

XOTIC Effects X-Blender – External Series/Parallel Effects Loop

The XOTIC Effects X-Blender is an external signal‑management pedal that lets you route your effects in either series or parallel, preserving tone and dynamics while giving you flexible control over your pedalboard signal chain. Hand‑built in the USA, it works like an effects‑loop “console” with advanced blend and tone‑shaping for guitarists who want transparency and clarity alongside complex effects setups.

Signal Routing and Modes

• Series mode: acts as a classic true‑bypass effects loop, keeping your dry signal clean without extra buffering. This is ideal for inserting a single pedal or a short chain into your rig.
• Parallel mode: feeds your effects with the guitar’s direct signal while blending the “dry” and “wet” paths. You can dial in anything from subtle reverb/delay tails to full wet‑signal textures, all while retaining the natural character of your guitar.

Key Features and Controls

• Dry/Wet blend control: adjusts the mix between the unaffected dry signal and the processed effect, giving you clean‑to‑wet balance on the fly.
• 2‑band EQ (Bass/Treble) and Volume control over the effect path, so you can shape the tone and level of the processed signal to match your dry tone.
• Boost switch: delivers up to +6 dB of clean level increase, useful for solos, lead pushes, or driving the input of subsequent pedals.
• Phase Invert switch (on some editions) to fix phase‑cancellation issues when blending pedals that invert the signal.
• True bypass switching in series mode keeps the signal path completely uncolored when the loop is not in use.

Build and Technical Specs

• Power: 9 V DC (standard pedal power supply or battery)
• Input impedance: 1 MΩ (1000 kΩ)
• Output impedance: 1 kΩ
• True bypass: Yes
• Type: Effects pedal / signal blender (pedal control)
• Manufacturer: Xotic
• Made in: USA
• Weight: 500 g (approx.)
• Dimensions: 117 × 93 × 50 mm
• Connections: 1/4" Send/Return and main input/output jacks for connecting your effects chain.

Typical Use Cases

• Prevents dynamic loss and tone darkening when running multiple effects in series.
• Creates lush, parallel‑reverb or delay blends (e.g., dry lead tone with ambient tail) without burying clarity.
• Acts as a fine‑tuning hub for delay, reverb, modulation, or drive pedals, letting you blend and EQ their contribution to the overall sound.

The X‑Blender is ideal for guitarists who want to keep their tone and dynamics intact while using complex pedal chains, or who need a precise, adjustable wet/dry mix without sacrificing the natural feel of their instrument.
