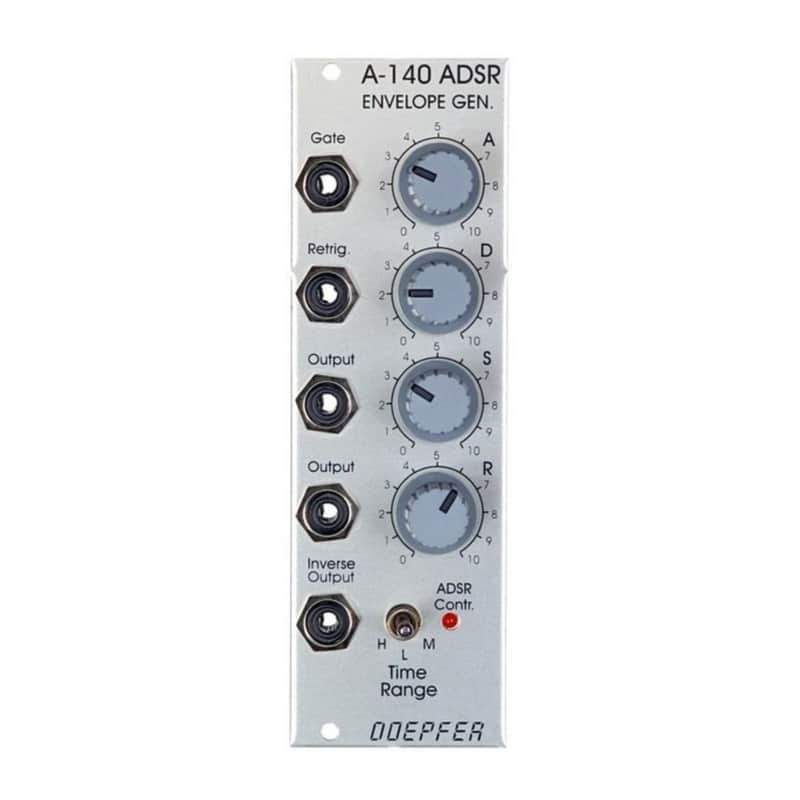

Module A-140 is an envelope generator, and, since it puts out control voltages, counts as one of the modulation devices in a modular system. As soon as the gate input receives sufficient voltage, the ADSR generates a variable voltage, changing in time, called an envelope. This varying voltage is output in normal (positive) and inverted form, and can be used, eg., for voltage controlled modulation of a VCO, VCF, or VCA, or for processing other modules\' inputs and outputs.
The shape of the envelope is governed by four parameters: Attack, Decay, Sustain and Release.
The envelope is started (triggered) by a gate signal either from the INT.GATE voltage on the system bus, or, if a signal is put into it, from the gate input socket.
The envelope can also be re-triggered, ie. start from scratch again, each time a trigger signal is sensed at the Retrig. input socket, when the gate is still open.
Module A-140 has available a three-position toggle switch to select one of three time ranges. The envelope duration ranges from about 50us (microseconds) up to several minutes.
In combination with the Comparator module A-167 a free-running \"ADSR-LFO\" can be realized.
Original Price€148.22
41% price drop
New Price€87.92
Incl. VAT
+ €54.50 Shipping
14-Day Return Policy
Enjoy peace of mind with your new gear
1
2 in stock
