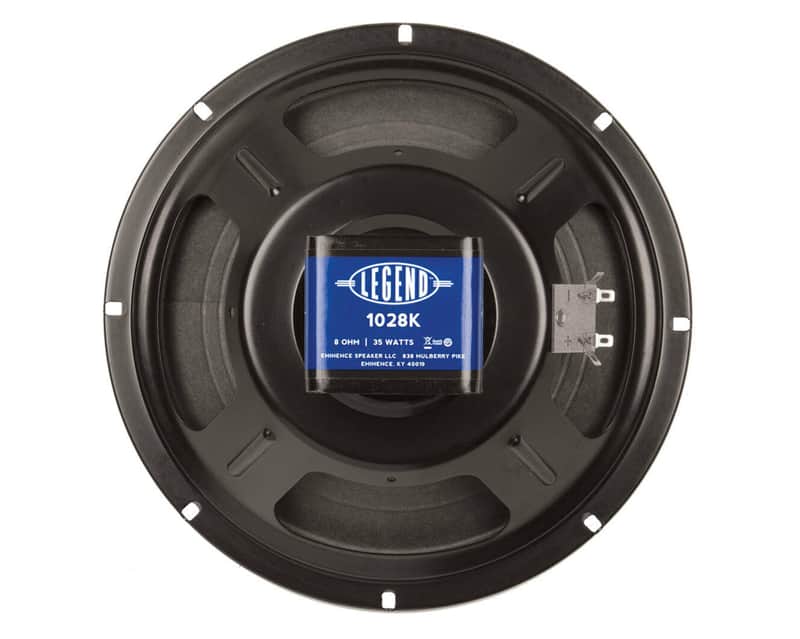

The Eminence Legend 1028K 35 Watt, 8 Ohm guitar speaker is a classic stage fixture. Vintage American tone with moderate, but tight, percussive lows and extended highs. Hard-working under the bright lights.
SPECIFICATIONS
Nominal Basket Diameter: 10", 254 mm
Nominal Impedance: 8 Ω
Watts: 35 W
Resonance: 95 Hz
Usable Frequency Range: 100 Hz - 5 kHz
Sensitivity: 97.4 dB
Magnet Weight: 6 oz.
Gap Height: 0.25", 6.4 mm
Voice Coil Diameter: 1", 25 mm
MOUNTING INFORMATION
Recommended Enclosure Volume: Sealed: Acceptable, Vented: Acceptable
Driver Volume Displaced 0.027 cu.ft. / 0.77 liters
Overall Diameter 10.11", 256.8 mm
Baffle Hole Diameter 9.13", 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket N/A
Mounting Holes Diameter 0.22", 5.6mm
Mounting Holes B.C.D. 9.6", 243.8mm
Depth 4.8", 121.9 mm
Net Weight 2.9 lbs, 1.32 kg
Shipping Weight 4 lbs, 1.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction: Copper voice coil
Coil Former: Polyimide former
Magnet Composition: Alnico magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper cone
Cone Edge Composition: Paper cone edge
Dust Cap Composition: Solid composition felt dust cap
Found Sound Australia Pty Ltd.
110 Albert St
Brunswick East, VIC 3057
Australia
PriceA$299.99
+ A$59 Shipping
