About this listing

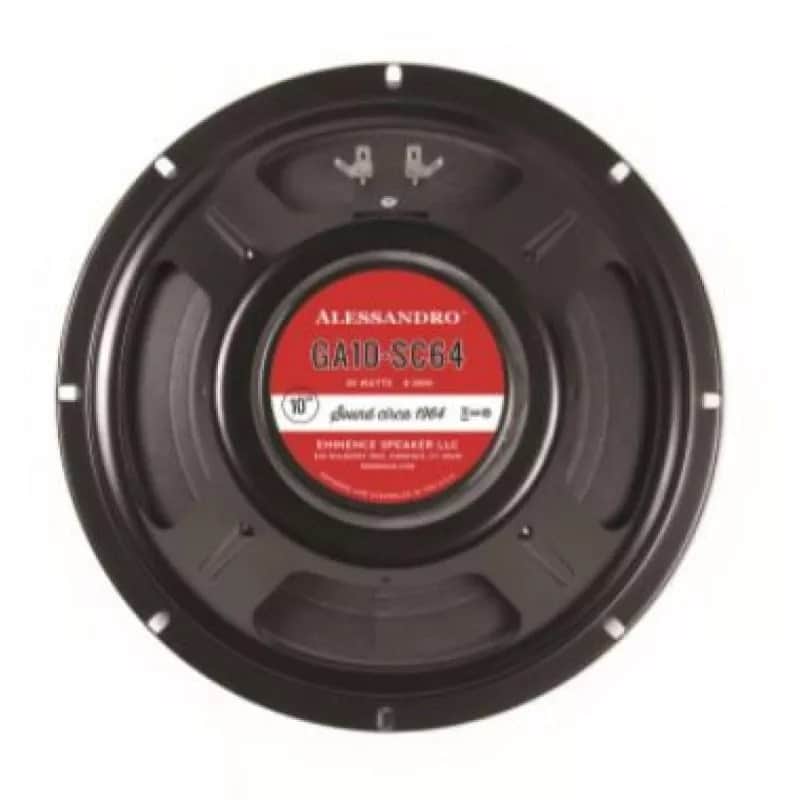

DescriptionTones of 1964 still ring true in this vintage voiced 10-inch speaker by amp guru George Alessandro. Very balanced with dynamic character, this ceramic 10 inch speaker offers tight, punchy tone with nice warmth, richness, and sparkling highs.CharacteristicsSeries SignatureModel GA10-SC64Application 10" Open or Closed BackConfiguration 1, 2, or 4 X 10"Low End Response ModerateLow End Shape Tight/PunchyMid-Range Response ModerateMid-Range Shape WarmHigh-End Response ModerateVolume/Power LoudOverall Coloration* Vintage American ceramic magnet tone in a 10" approved by legendary amp builder, George Alessandro. A tight, punchy tone with nice warmth, richness, and sparkling highs. Break-up Modes Medium Power Range Up to 20 watts Instrument* Lead/Rhythm Guitar Genre of Music* Rock, Blues, CountrySPECIFICATIONNominal Basket Diameter 10", 254 mmNominal Impedance* 8 ΩPower Rating*Program Power N/AWatts 20 WResonance 100 HzUsable Frequency Range 100 Hz - 5.5 kHzSensitivity* 98.2 dBMagnet Weight 15 oz.Gap Height 0.25", 6.4 mmVoice Coil Diameter 1", 25 mmTHIELE & SMALL PARAMETERSResonant Frequency (fs) 100 HzDC Resistance (Re) 7.58 Ω Coil Inductance (Le) 0.48m H Mechanical Q (Qms) 16.89 Electromagnetic Q (Qes) 1.38 Total Q (Qts) 1.28 Compliance Equivalent Volume (Vas) 33.49 liters / 1.18 cu.ft. Peak Diaphragm Displacement Volume (Vd) 58.2 cc Mechanical Compliance of Suspension (Cms) 0.18 mm/N BL Product (BL) 7.05 T-M Diaphragm Mass Inc. Airload (MMs) 14 grams Efficiency Bandwidth Product (EBP) 72 Maximum Linear Excursion (Xmax) 1.59 mm Surface Area of Cone (Sd) 366.1 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 0.027 cu.ft. / 0.77 liters Overall Diameter 10.11", 256.8 mm Baffle Hole Diameter 9.13", 231.9 mm Front Sealing Gasket Yes Rear Sealing Gasket N/A Mounting Holes Diameter 0.22", 5.6mm Mounting Holes B.C.D. 9.6", 243.8mm Depth 3.93", 99.7 mm Net Weight 3.3 lbs, 1.5 kg Shipping Weight 4.4 lbs, 2 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Paper former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Paper cone edge Dust Cap Composition Solid composition felt dust cap
PriceC$181.66
+ C$109.01 Shipping
