The NTBT is a 2-band tone control preamp with fully independent Bass and Treble controls.

The voice is clear, transparent, and strong with wide boost and cut range for aggressive control. The NTMB features an adjustable gain which allows you to boost the input signal up to 12dB while maintaining flat frequency response.

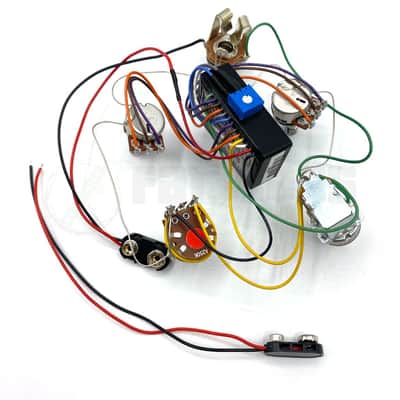

A professionally pre-wired and fully pre-tested harness saves the time and aggravation of wiring your preamp and pots into your instrument. Wired with our pro-level preamp and premium audio-quality pots and switches, you’ll have smooth control and be ready for years of rugged use. Bartolini includes battery clips and an output jack for quick installation. All the pots are grounded with a wire that can be connected to the cavity shield or simply cut away if not needed in your installation. Everything is pre-soldered with pro-quality pure copper wire that is double tin plated and protected with semi-rigid insulation so it won’t flop around in the cavity or degrade over time. Bartolini uses only professional lead-free solder with non-corrosive flux.

Artists: David Wilson

HR-4.5AP/918 - 2 Pickup - 4 Knob (Volpp-Bl-T-B)
Volume w/Active-Passive Push-Pull -- Blend -- Treble -- Bass

Preamp Module Size:1.76" [44.7mm] Long
1.02" [25.9mm] Wide
0.54" [13.7mm] ThickOperating Voltage:9V or 18V - Prewired for 9V. An additional battery clip is included for 18V wiring.Gain Control

• The in-cavity gain trimmer lets you adjust the output level of your instrument. This lets you match output levels from several instruments for consistent response from level-sensitive effects
• Gain: 0-12dB

Bass Control

• Boost or cut your low frequencies up to 5 times the flat signal. The bass frequency is great for E, B, and low F# strings.
• Bass: +/-15dB@30Hz

Treble Control

• Boost or cut your high frequencies to brighten or darken your tone. The NTBT gives you a constrained control range for precise voice adjustment.
• Treble: +/-16dB@6KHz

Below are impressions and anecdotal thoughts gathered over the years. Some are our own and some are from customers.

• Capable of producing great fat, thick and round tones
• Moderately aggressive (not subtle, not overly aggressive)
• Players commonly site this preamp is being quite musical
• Ability to adjust the overall output of the active signal
