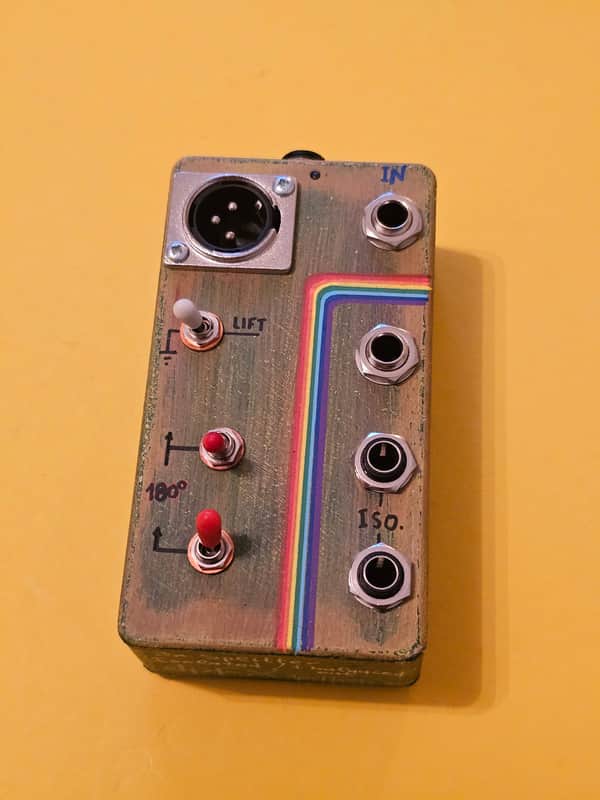

dpFX Pedals - Splitter 3x, Isolated with DI & phase reverse

In excellent condition!

"dpFX Pedals" builds handmade and custom effects. All products are serial numbered (dpeffects.com)

This buffered splitter has three TS (6.35mm) outputs with 2 of them being isolated using audio transformers.

The isolated outputs (TS) are also equipped with Phase-Reverse switches (180˚) and they are both are compatible with either balanced or unbalanced equipment. Output-1 has a common ground with the Input.

An extra 4th output is offered in balanced mode via the XLR connector which is equipped with a ground-lift switch.

WARNING: Avoid connecting an XLR cable that carries phantom power because there is a risk of damaging the splitter.

Input & Output jacks are all top-mounted to save you space on your board.Now you have the ability to split the signal of your instrument into multiple separate outputs without degrading your signal's clarity or tone. Each one of the outputs is equal to the input.

The splitter is suitable for both bass and guitar or any other instrument with similar pickups.

examples of use:

• Send your instrument's signal to multiple amps simultaneously avoiding ground loops.
• Send your signal into three devices (e.g. pedalboards or amps), and a recording device, through the XLR-output. While you play and hear your actual sound, you can record your clean signal at the same time. (in case you need it e.g. for re-amping)
• It also serves as a buffer.
• Use as many of the outputs you desire, just leave the unused outputs unconnected.

▹ Voltage Required: DC 9-18 Volt (using 12-18V gives you more headroom)
▹ Max Current draw: 12mA @ 9V
▹ Input impedance: 3.3MΩ
▹ Output impedance: ~700Ω
▹ Equipped with indicative LEDs to show you when the pedal is powered.
