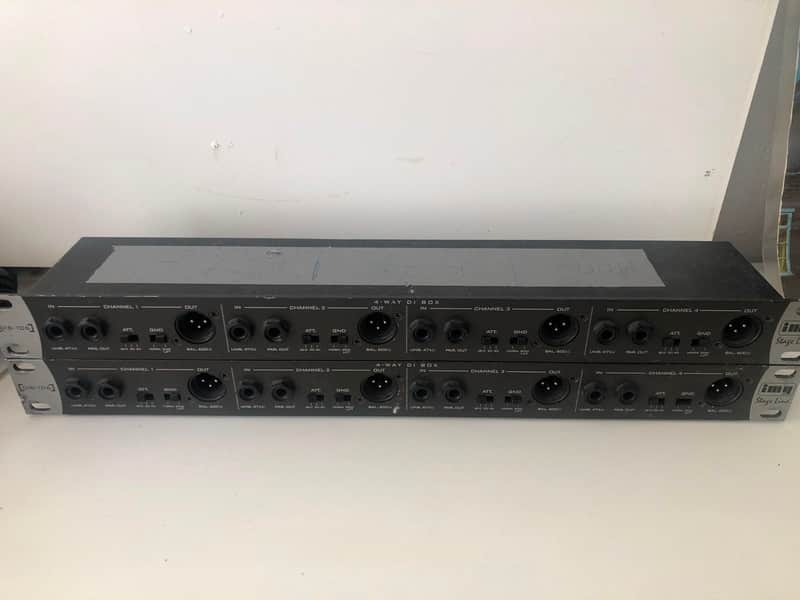

IMG Stageline DIB-106 Passive DI-Box, 4-Channel - black
This seller has not set a shipping cost for Belgium. Please contact them to ask about shipping.
Our users rate Reverb
I HAVE TWO, 70 EU EACH
IMG STAGELINE DIB-106 Passive DI Box
for optimal signal transmission from musical instruments to a mixer or amplifier. Interference caused by impedance mismatch—such as ground loops—is largely prevented by the use of transformer coupling. The input and output are electrically isolated.
Features
3-position attenuation switch (0/-20/-40 dB) per channel
1 ground lift switch per channel
1 instrument loop-through output per channel
Balanced XLR outputs on front and rear panels
Broadband balancing transformers
482-mm rack mount (19"), 1U
Technical Specifications
Frequency response: 15–30,000 Hz
Inputs: 47 kΩ
Outputs: 600 Ω, XLR; 47 kΩ, jack
Transmission ratio: 10:1
Permissible operating temperature: 0–40 °C
Inputs: 4 x 6.3-mm jack, unbalanced
Outputs: 4 x 6.3-mm jack, unbalanced, parallel out, 8 x XLR, balanced
Dimensions: 482 x 44 x 90 mm, 1U
Weight: 1.18 kg
