About this listing

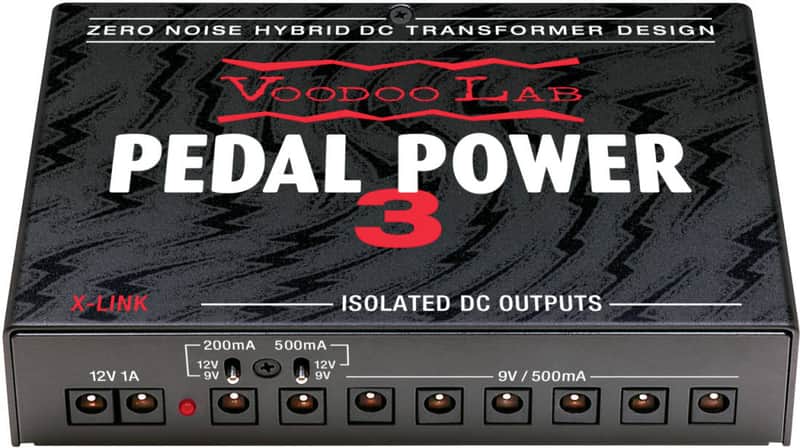

The Voodoo Lab Pedal Power 3 is a lightweight, high-current isolated supply with a hybrid DC transformer design that combines linear regulation with organic and polymer filtering for zero-noise operation. It runs on 100-240VAC for international touring and properly powers everything from sensitive vintage stomps to modern high-current DSP pedals without the guesswork of mismatched wall warts.
Eight galvanically isolated outputs eliminate ground hum and unwanted interaction between pedals. Six deliver 9V at up to 500 mA; two are switchable between 9V and 12V when a pedal needs the extra headroom. Optional voltage-doubler cables combine outputs for 18V or 24V pedals so you do not need a second supply for a handful of high-voltage units.
Expansion
Two X-LINK ports expand the system with Pedal Power X4 or X8 units using a single host AC connection, or feed high-current 12V devices from the shared X-LINK current budget. That keeps cable clutter down on travel boards while preserving full isolation on every pedal output.
Specifications
Outputs: 8 isolated (6x 9V 500 mA, 2x 9V/12V 500 mA)
Design: Hybrid DC transformer, linear regulation, multi-pole filtering
Input: IEC, 100-240VAC 50/60 Hz
Expansion: 2x X-LINK ports
18V/24V: Via optional voltage doubler cable
Dimensions: 6 x 3.5 x 1.5" (152 x 89 x 38 mm)
Weight: 0.9 lb (0.41 kg)
In the Box
Pedal Power 3
PPPK-8 standard polarity DC cable pack
Detachable IEC power cord
