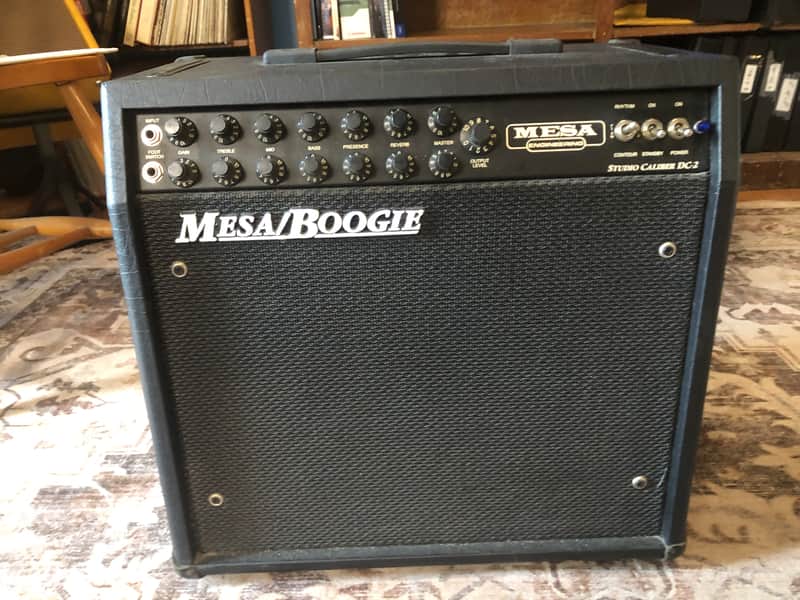

This Mesa/Boogie Studio Caliber DC‑2 (1994) is a compact, all‑tube, dual‑channel guitar amplifier known for delivering classic Mesa tones—sparkling cleans, rich mid‑gain crunch, and saturated lead sounds—in a portable 20–25‑watt package.

The DC‑2 was part of Mesa’s Studio Caliber / Dual Caliber line (produced roughly 1994–1999) and designed to offer professional Mesa tones in a smaller, more affordable format. It essentially packs two independent preamps into one chassis, making it behave like two separate amps sharing a power section.

Circuit Architecture & Tube Layout - Power Section - 22–25 watts RMS , 2 × EL84 power tubes Class AB operation (Mesa sometimes marketed early DC amps as “Class A,” but the circuit behaves AB) Solid‑state rectifier for tight low‑end and fast attack

Preamp Section - 6 × 12AX7 tubes, Two fully independent preamp paths (Rhythm/Clean and Lead) Complex gain staging typical of Mesa’s late‑80s/early‑90s designs, derived from the Studio .22 lineage

Channels, Controls & Tone Shaping - Two Independent Channels. Each channel has its own: Gain, Treble, Mid, Bass, Presence, Reverb, Master Volume

Global Control - Output Level (acts like a post‑master volume for overall loudness)

Channel Character - Rhythm/Clean Channel: Sparkling, 'chimey' cleans with surprising headroom for EL84s. Can be pushed into warm breakup. Lead Channel: Thick, vocal midrange, Capable of high‑gain saturation reminiscent of early Mark‑series DNA. Smooth sustain and tight low‑end. Mesa describes the DC‑2 as “two separate amplifiers built into one chassis.

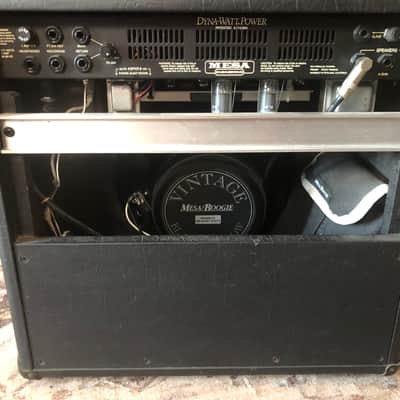

Rear Panel & Connectivity - The DC‑2 is unusually feature‑rich for a small combo/head: Recording Out with speaker simulation, Silent Recording / Speaker Mute switch, Parallel Effects Loop with FX Mix control, Slave Out with level control, Footswitch jacks (footswitches no included) (channel & reverb),

Multiple speaker outputs: two 4‑ohm jacks, One 8‑ohm jack. These features make the DC‑2 extremely flexible for studio use, silent practice, and integration with external power amps or processors.

Combo Details: 1×12" speaker, Mesa Vintage Black Shadow, 1×12" speaker, Weight: ~44–48 lbs, Dimensions: ~19" W × 18" H × 11" D, Weight: ~44–48 lbs.

Sound & Performance Profile - Clean Channel - Bright, articulate, Fender‑like top end, Tight low‑end. Responds well to pedals. Lead Channel - Classic Mesa singing sustain, Thick mids, smooth highs, Capable of 80s/90s rock, blues, fusion, and early metal tones. Dynamic Feel - EL84s give a fast, responsive attack. Breaks up musically when pushed. Works well at both home and small‑venue volumes.

Reliability & Build - Mesa’s hand built construction includes: Heavy‑duty transformers, Thick PCB with robust traces, High‑quality pots and switches, Rigid chassis and cabinet design, The DC‑2 is known for long‑term reliability and easy servicing due to its straightforward tube layout.

Summary: The 1994 Mesa/Boogie Studio Caliber DC‑2 delivers:

Authentic Mesa high‑gain and clean tones, Two fully independent channels.

Rich feature set (recording out, FX loop, silent mode), Manageable wattage for studio and small gigs, Rugged, professional build quality. It’s essentially a mini‑Mark‑series‑style amp with EL84 character—compact, versatile, and capable of serious tones.

Black vinyl cover and all original manuals, certifications included.

Pickup Only - Will meet buyer at neutral location within 50km of Picton, ON. Canada
