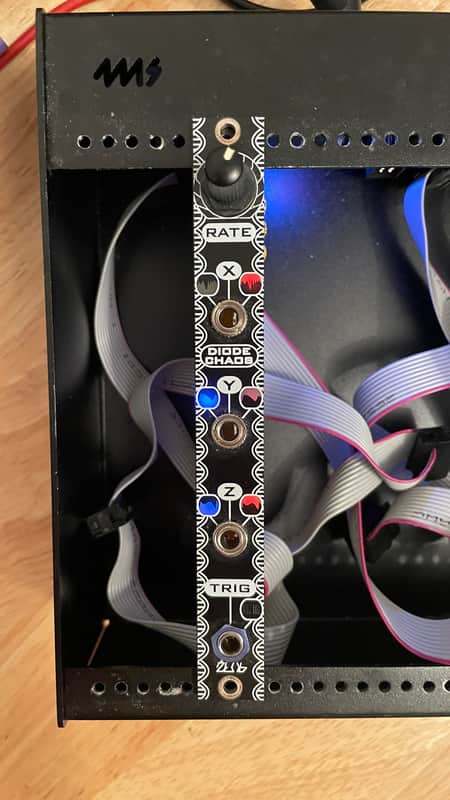

Zlob Diode Chaos Random CV/Trigger Module

The Zlob Modular Diode Chaos is a compact 3HP Eurorack module that generates chaotic low-frequency voltages for evolving modulation, random-like movement, and unpredictable trigger patterns. Based on an analogue chaotic circuit using a light-emitting diode, it produces three interrelated morphing voltage outputs plus a chaotic trigger output, making it a creative source of motion for filters, oscillators, VCAs, sequencers, and other modulation destinations.

Unlike simple random voltage sources, Diode Chaos creates irregular but related voltage behavior across its outputs, giving patches a more organic and connected feel. The RATE control moves the circuit from slow cycles around 20-30 seconds up to audio-rate behavior, while the X, Y, and Z outputs each respond differently depending on the speed setting. The TRIG output delivers chaotic trigger pulses from 0-10V, adding unstable rhythmic activity for experimental sequencing and modulation.

Key Features

• Compact 3HP Eurorack chaos modulation module
• Analogue chaotic low-frequency voltage generator
• Produces three interrelated morphing voltage outputs
• Chaotic trigger output for irregular rhythmic events
• RATE control ranges from slow cycles to audio-rate behavior
• X, Y, and Z outputs offer different voltage behavior at different rates
• X and TRIG outputs can reach audio-rate operation
• Outputs generally operate around 4Vpp, with possible peaks up to 10Vpp
• TRIG output produces chaotic 0-10V trigger pulses
• LED soldermask windows show positive and negative voltage crossings
• Power: 10mA +12V / 10mA -12V / 0mA 5V
• Depth: 45mm

The Zlob Modular Diode Chaos is a strong choice for modular users who want compact, organic, and unpredictable modulation that feels more interconnected than standard random CV sources.
