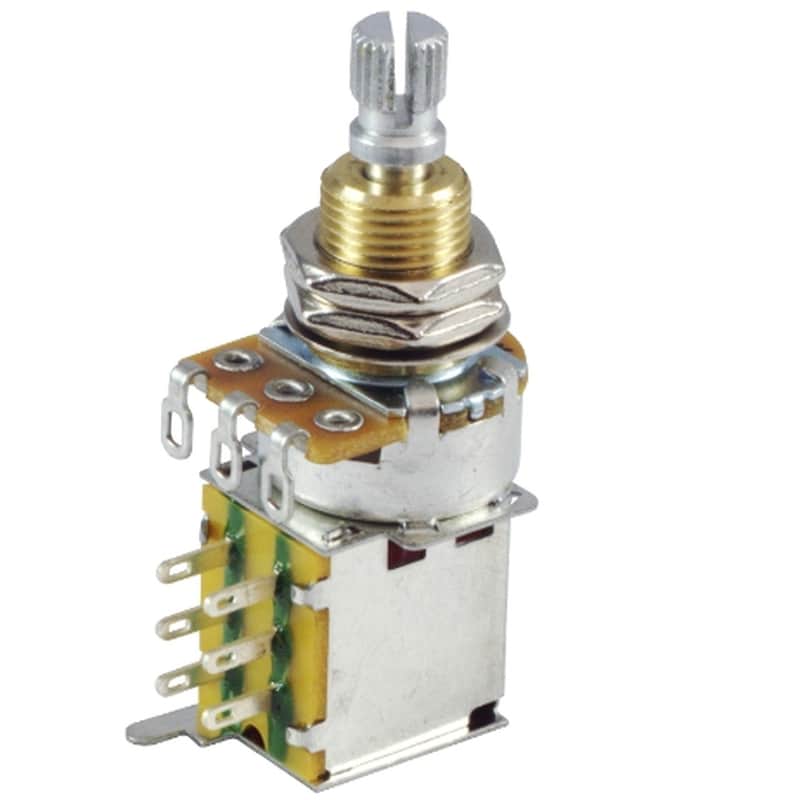

Next Gen - Push-Push A500K Split Shaft Pot, Volume
Our users rate Reverb
Please note: These are PUSH-PUSH switching pots. You push it to engage the switch, then push it again to disengage it. Do not confuse them with the other type. If you pull on these, you will break them.
Taper: A / Audio / Logarithmic
Percent @ Half Turn: 20%
Resistance: 500K
Tolerance: +-10%
Power Rated: 1/4W
Shaft Type: 6mm Split Shaft
Shaft Knurl: Import / Coarse / 18 spline
Shaft Length FMS (from mounting surface): 19mm
Bushing Thread: 3/8" x 32
Bushing Diameter: 3/8"
Bushing Length: 6.5mm
Body Diameter: 16mm
Body Depth: 26.5mm
Lug Type: Solder
Mounting Hole: 7/16"
Other info: DPDT Push-Push Switch. Includes 2 flat washers and 2 nuts.
Tech's notes: "These have a smooth/solid rotational feel to them. The DPDT push-pull switch is great for adding all sorts of custom wiring options."
