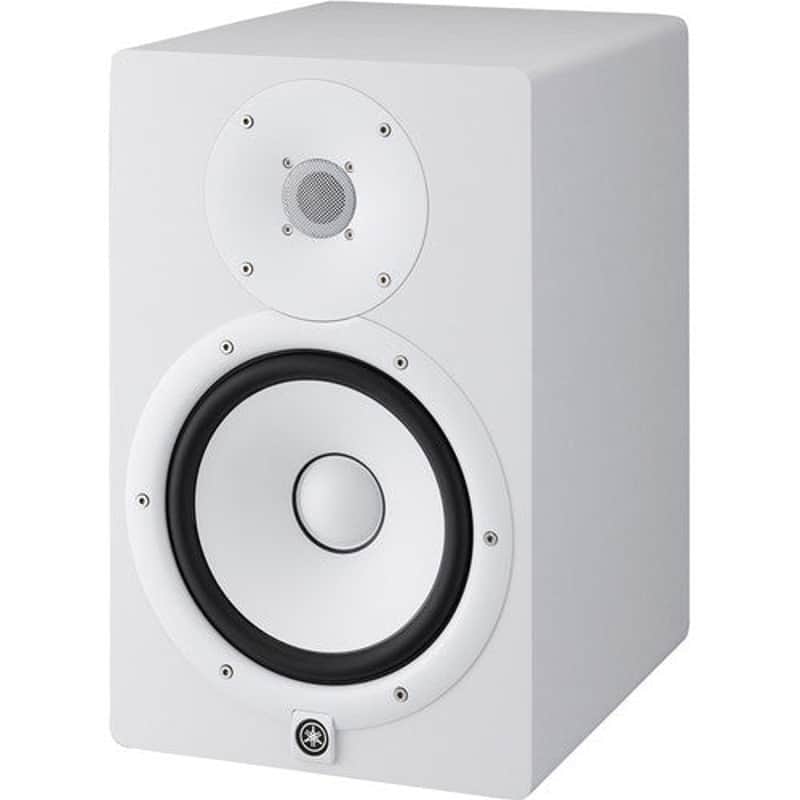

The white HS8 Powered Studio Monitor from Yamaha is a 2-way reference speaker that is designed for mixing and monitoring in your home or studio. Equipped with a 120W bi-amplification system that powers a 8" woofer and a 1" tweeter, the HS8 is designed to offer maximum headroom, minimal distortion, and an extended response up to 30 kHz. The HS8 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for maximum flexibility in a variety of studio setups.

Low Resonance Enclosure Design
HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound

Noise Reduction Technology
Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB

Controls and Connectivity
HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks.

Items Included

• Yamaha HS8 Powered Studio Monitor (Single, White)
• Power Cord
• Limited 1-Year Manufacturer Warranty

Specifications

Monitor Type & Configuration Active 2-Way Number of Included Monitors Single Monitor Enclosure Sealed Total Power Output 120 W Drivers Tweeter 1x 1" / 25.4 mm Dome Woofer 1x 8" / 20.3 cm Cone Amplifiers LF: 75 W
HF: 45 W Performance Frequency Range 38 Hz to 30 kHz (-10 dB) Frequency Response 38 Hz to 30 kHz Signal Processing EQ 1x HF Shelf: ±2 dB
1x LF Shelf: 0 to -4 dB at 500 Hz (2 dB Increments) Crossover Frequency 2 kHz Phase Adjustment No Connectivity Audio I/O 1x XLR 3-Pin Balanced Input
1x 1/4" TRS Balanced Input Digital Audio I/O No Network I/O No USB No Wireless No Mobile App Compatible No Power AC Input Power Not Specified by Manufacturer Power Consumption 60 W Physical Color White Monitor Orientation Vertical Enclosure Material MDF Dimensions (W x H x D) 9.8 x 15.4 x 13.1" / 250 x 390 x 334 mm Weight 22.5 lb / 10.2 kg Packaging Info Package Weight 28.5 lb Box Dimensions (LxWxH) 21.1 x 16.4 x 14.2"
