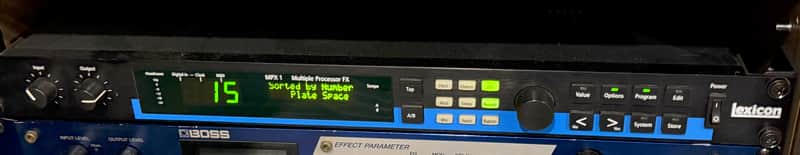

Lexicon MPX1 2-in/2-out Multi Effects Processor

Legendary Lexicon Sound !

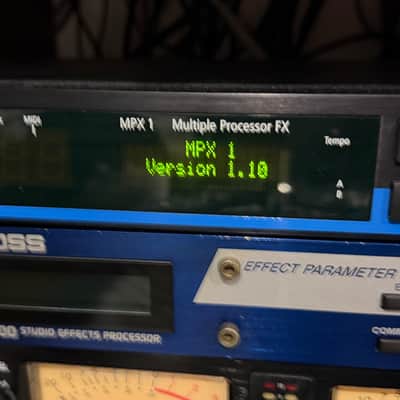

Excellent Condition With Version 1.10 Eprom OS

The MPX 1 is the processor that fulfills the promise implied by the term, "multi-effects." Multiple Processor FX technology combined with an interactive front panel, creates a new set of standards for others to follow... no less than you'd expect from Lexicon.

WHAT TO EXPECT

• No compromise stereo reverb in combination with as many as 4 additional stereo effects
• A "goof-proof" system for quickly fine-tuning any program, without having to enter an in-depth editing mode
• Visual feedback to tell you exactly where you are and what features are available; on-board Help guides you all the way
• 56 Pitch, Chorus, EQ, Modulation, Delay and world-class Reverb effects
• Complete flexibility of routing and effect order in every program
• 200 preset programs designed for a wide variety of audio sources and applications — with database sorting to let you find exactly what you want
• Layered features; options are there when you need them, and out of the way when you don't
• Dynamic control of all effects parameters with pushbutton access to the patch system
• Extensive MIDI implementation
• Comprehensive audio connectivity

Features

Analog Audio Input    XLR and 1/4" balanced (T/R/S)
Input Level    -2dBu to +20dBu, balanced;<br>-14dBu to +8dBu, unbalanced
Input Impedance    100k½, balanced;50k½, unbalanced
Analog Audio Output    XLR and 1/4"balanced (T/R/S)
Output Level    +18dBu
Output Impedance    600½unbalanced
Digital Audio Input    Coaxial RCA
Format    24-bit S/PDIF
Sample Rate    44.1kHz
Digital Audio Output    Coaxial RCA
Format    24-bit S/PDIF
Sample Rate    44.1kHz
Conversion    24-bit A/D;24-bit D/A
Internal Audio DSP    20-bit;32-bit
Frequency Response    20Hz - 20kHz ±1dB
Crosstalk    -60dB
THD    0.01%, 20Hz - 20kHz
Dynamic Range    D/A:>95dB typical, 20Hz - 20kHz, unweighted<br>A/D:>90dB typical, 20Hz - 20kHz, unweighted<br>A/A:>95dB typical, 20Hz - 20kHz, unweighted
MIDI Interface    7-pin DIN connector for MIDI IN and powered bidirectional remote;<br>5-pin DIN connectors for MIDI THRU and OUT
Footswitch    1/4"T/R/S connector for bypass and tap
Footpedal    1/4"T/R/S connector (10k½- 100k½impedance)
Power Requirements    100 - 240 volts AC, 50 - 60Hz, 25 watts<br>(3-pin IEC connector)
Remote Power In    2.5 mm 9 volts AC (not included)
Dimensions    19" W x 1.75" H (1U) x 9" D<br>(483 x 45 x 289 mm), rack mount standard
Weight    6.125 lbs.(2.8 kg)
Operating Temperature    32¡to 104¡F (0¡to 40¡C)
Maximum Humidity    95% without condensation
