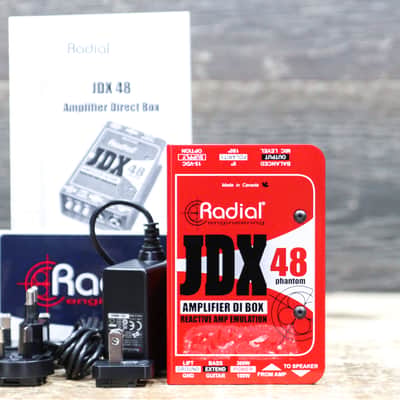

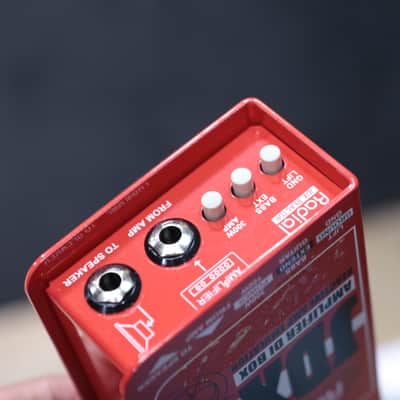

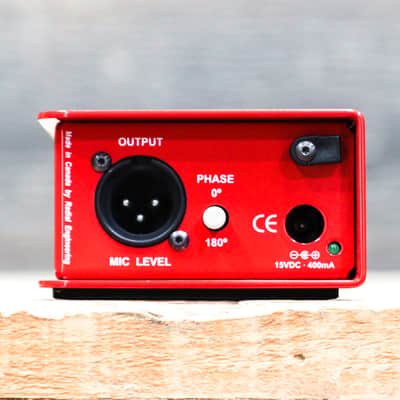

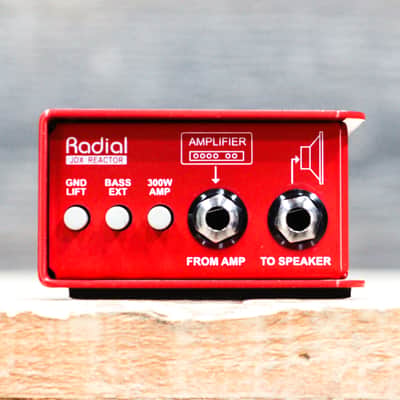

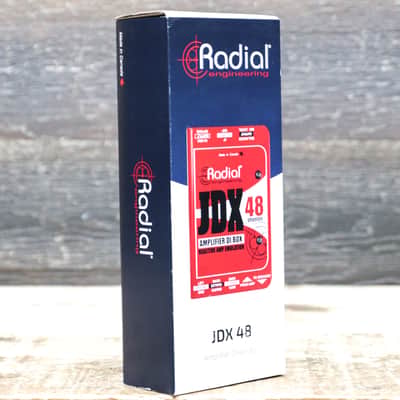

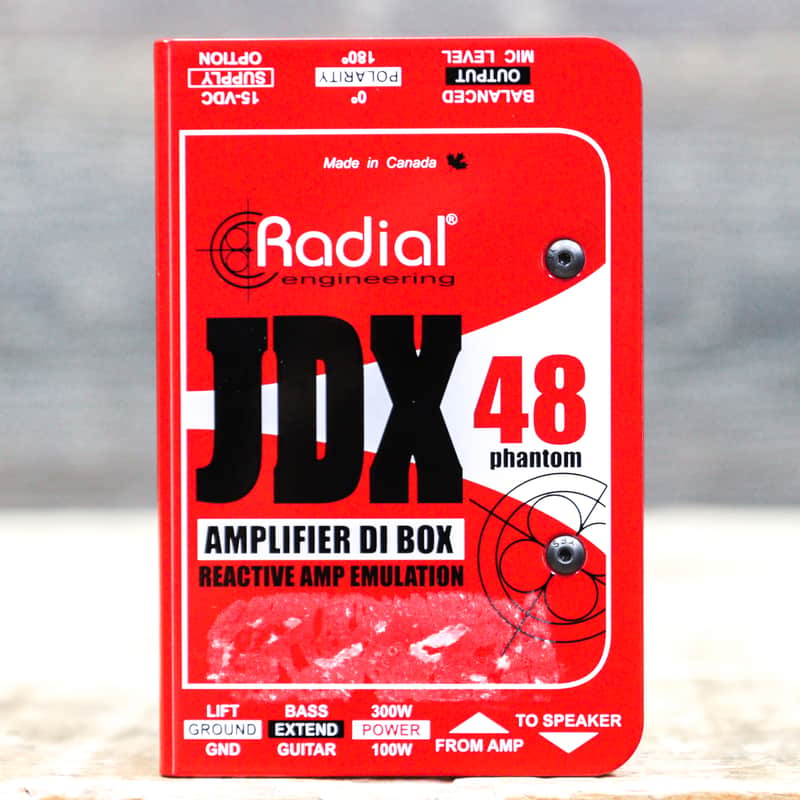

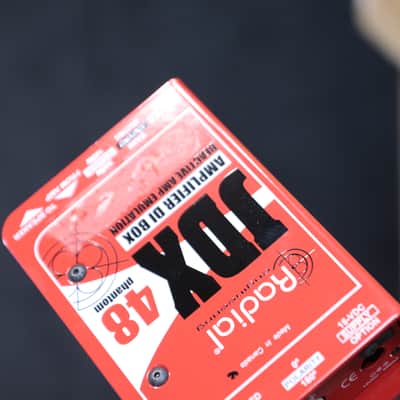

Up for sale a Radial Engineering JDX 48 Guitar Amplifier Direct Box / Reactive Amp Emulation w/Box - #1237093!  We are an Authorized Dealer of Radial Engineering!  This item is a Used Model in Excellent Cosmetic Condition and in Perfect Working Condition.  On this one, there is a tape mark on the front side (see 1st picture) and there are few scratches, marks and few other signs of wear here and there (see 7th to 12th pictures), but really nothing major.  Unit comes with its Power Supply in its Original Box.

-

RADIAL ENGENEERING JDX 48

Guitar Amp Direct Box

The JDX 48 is a direct box designed to capture the sound of an electric guitar amplifier by connecting between the amp head and the speaker cabinet, providing a balanced feed for the PA system that sounds like a well-placed microphone on your amp.

Deliver your amp's tone through the PA

The JDX 48 makes it easy to get a consistent and natural amplifier tone through the PA system night after night, by taking a feed directly from your amplifier and employing Radial's popular JDX speaker emulation that produces an effect similar to placing a dynamic microphone in front of a 4x12 half stack cabinet. This gives you a more manageable sound onstage for gigs where feedback is an issue, or if mic'ing your amp isn't an option. For artists that employ in-ear monitoring systems, the JDX 48 provides consistent tone each night in the monitor mix for shorter setup times and a more comfortable audio feed for the artist.

Dual powering options

The JDX 48 can be powered using 48V phantom from the mixing console, for a cleaner setup on stage that eliminates the need to carry a power supply to the gig. However, for times when phantom power may not be available, the JDX 48 also ships with a separate DC power supply - giving you a redundant powering option so you never have to perform without your JDX.

-

FEATURES:

- Capture the sound of your amplifier through a direct box

- Delivers consistent tone across every performance

- Works equally well on electric guitar and bass

- Can be powered from 48V phantom or DC supply

-

SPECIFICATIONS:

Audio circuit type : Discrete Class-A - Transformer Isolated

Frequency response : Shaped for guitar use

Dynamic range : 114dB

Total harmonic distortion : <0.015% (+10dBu input @ 1KHz

Intermodulation Distortion : 0.03% (+10dBu input @ 1KHz)

Input Impedance : 15kOhm

Output Impedance : 2kOhm (XLR out)

Noise Floor : -100dBu below 0dBu

Maximum Input : 120W @ 8 Ohms

Maximum Output : +14dBu (clip level)

180° polarity reverse, Ground lift

Input Connectors : One 1/4" input

Output Connectors : One XLR output, one 1/4" output

Extras : Bass extension lowers frequency response for bass guitar, 300W amp increases power handling from 100W to 300W, Active speaker emulation band-pass filter

Construction : 14-gauge steel chassis and outer shell

Size (L x W x D) : 6.25" x 5" x 2" (159 x 127 x 51mm)

Weight : 2.80lbs (1.28 kg)

Power : 48V phantom or +15VDC/400mA adapter Included

Conditions : For use in dry locations only between 5°C and 40°C

-
