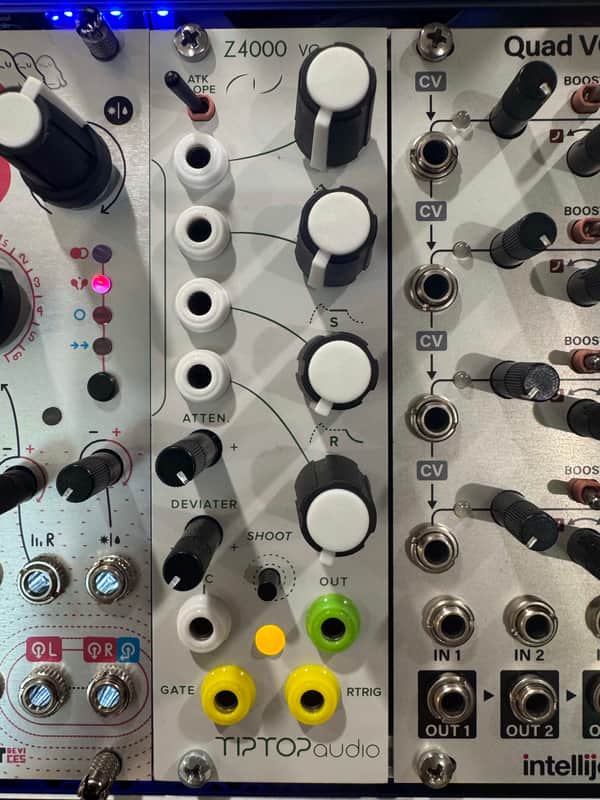

The Z4000 NS is a snappy voltage-controlled analog envelope generator with a built-in CV processor for scaling, inverting, and voltage-controlled deviating of the envelope shape. The Z4000 generates an envelope made of the four classic segments: Attack, Decay, Sustain and Release, in which each segment can be manually set using knobs or dynamically set under voltage control.

Control knobs for the Attack, Decay, and Release segments are scaled. The first 0-50% of the knobs rotation is dedicated to high resolution adjustment in the millisecond range.

The output levels are fully adjustable with signals that can reach up to 10V in either polarity and can be mirrored into the opposite polarity or clipped using the voltage-controlled deviater-scaler. A bi-color LED indicates intermediate values in both polarities and their crossfade state.
