Merging HAPI + DAD AX24 ( Digital Audio Denmark AX24 ) recording interface & mic preamps

Merging Technologies HAPI (Bass Unit) and DAD AX24 sold together.

Merging HAPI comes with DC battery outlet option installed.

Get the best of all worlds:

• DAD AX24 adda converters - Unrivaled musicality for outboard gear & analogue chains
• Merging HAPI monitoring and expansion possibilities
• Merging Ravenna superior interface capabilities
• DAD and Merging mic preamps are the only interface mic pre’s that compete at the very top.

Both units with original boxes, HAPI still with factory plastic wrap on the front panel.

Choice of DAD AES3 or Madi i/o modules:

Two units connect with AES3 cable and all inputs / outputs are visible to Ravenna Network (AX24 audio is transported over ethernet AoIP). Alternately, AX24 unit may be sold with Madi i/o.

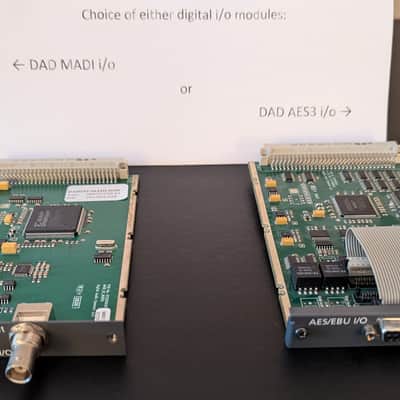

(Please see pics of DAD AX24 unit with AES3 or Madi card installed. HAPI Madi expansion card sold separately).

DAD AX24 is available to be sold on its own, but the HAPI only as a package with the AX24.

Merging mic/line cards sold separately.

HAPI comes with 19" rack ears , (ears removed for shipping).

Buyer pays actual shipping and insurance cost (please message). Willing to drop-off within the Montreal, Ottawa, and nearby Ontario area. Will ship international.

Details:

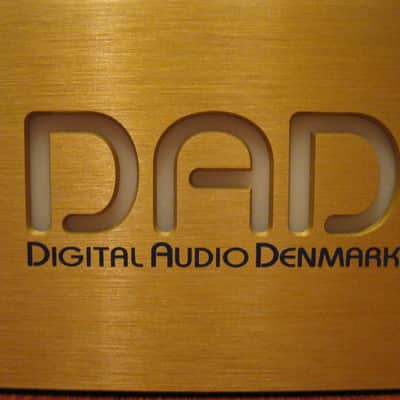

Digital Audio Denmark DAD AX24

• 4 mic preamps / line inputs (AD),
• 6 line outputs (DA),
• AES3 /or/ MADI digital i/o (see below),
• AES11 in, Video sync in, Wordclock i/o.
• RS422 Serial to USB remote control.
• Excellent to mint condition. Original Box.

DAD Adjustable headroom:

Max input level: +30dBu 😮 !!

(adjusted between +12 and +30 dBu)

Unrivaled musicality for Analogue Mixing setups + tracking, (stereo Summing + Aux printing, outboard A/B chains). DAD AX24 is our favourite choice for analog outboard chains. We always keep at least one AX24 in studio (won't mix without it).

AX24 Upgraded options: 4 Mic Pre-amps, High sample rate 384 kHz / DSD / DXD.

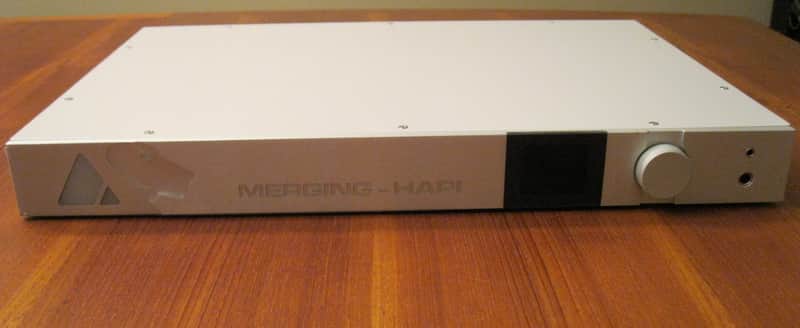

Merging HAPI Base Unit

• 2 Mastering grade Headphone Amps

Digital I/O

• 8 AES/EBU I/O (D-SUB)

• 8 ADAT / 2 SPDIF (Switching)

• RAVENNA / AES67 / SMPTE ST 2110-31 (RJ45)

• Word Clock I/O (Synchronization) • LTC, MIDI, Video Reference

Sample Rate support

• 44.1 – 384 kHz PCM, DXD and DSD64/128/256

User Interface

• Remote control over LAN (CAT5E/CAT6)

• Direct access on unit with rotary control

Redundant Power Options:

• Optional DC power input to be used as a redundant or alternate power source

2 Option slots that fit any combo of:

• 8 Channel Mic/Line Input Card, (w/ Direct analogue output - literally Zero-Latency out)

• 8 Channel Line Out Card

• 8 Channel Mic/Line Input & 8 Channel Line Out Card, (8In+8Out AD/DA)

• 64 Channels of Pro Tools HD™ connectivity in each card

• left slot may be fitted with 64 I/O MADI coaxial/optical module

New Merging cards offer Mic preamps w/ incredible dynamic range 😲

Merging Line-Outs have exceptional clarity and transient punch, ideal for monitoring & mastering.
