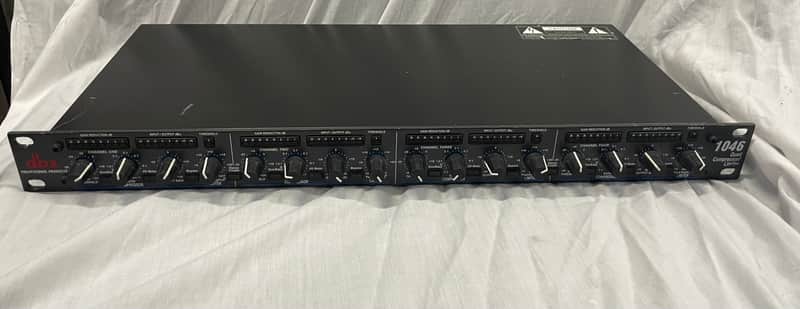

The dbx 1046 Quad Compressor/Limiter is a professional-grade dynamics processor designed to provide four channels of smooth, classic dbx compression. It’s ideal for both studio and live sound applications, offering versatility and high-quality audio performance.

Available in stock if you need more contact me.

Key Features

• Four Independent Channels: Each channel operates independently, allowing for versatile use across multiple audio sources.
• Stereo Link Functionality: Channels can be linked in pairs (1&2 and 3&4) for true stereo compression.
• Compression Modes: Selectable OverEasy® (soft knee) and Hard Knee compression modes provide flexibility in dynamic control.
• PeakStopPlus™ Limiting: A two-stage limiter that protects against signal peaks, ensuring system safety without introducing significant distortion.
• Comprehensive Controls: Each channel features controls for Threshold, Ratio, Output Gain, and a Bypass switch, along with input/output metering.
• Balanced Connectivity: Equipped with gold-plated XLR and 1/4” TRS inputs and outputs, accommodating both +4dBu and -10dBV operating levels.

Technical Specifications

• Frequency Response: 20 Hz to 20 kHz, +0/-0.5 dB
• Dynamic Range: >118 dB (unweighted)
• THD+Noise: <0.008% at +4 dBu (1 kHz, unity gain)
• Compressor Threshold Range: -40 dBu to +20 dBu
• Compressor Ratio: 1:1 to ∞:1
• Limiter Threshold Range: 0 dBu to +24 dBu
• Power Requirements: Switchable 100-120 VAC or 200-240 VAC, 50/60 Hz
• Dimensions: 1.75” H x 19” W x 9” D (1U rackmount)
• Weight: 5.2 lbs (2.4 kg)

Availability and Free Shipping in Canada and USA
