Up for sale a Radial Engineering SGI TX + RX Instrument Line Driver Studio Guitar Interface!  We are an Authorized Dealer of Radial Engineering!  This item is Brand New / Never Displayed and it comes with the Full Manufacturer's Warranty*.  Unit comes with its Accessories in its Original Packing.

-

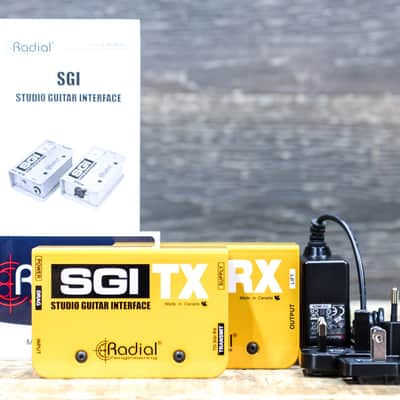

RADIAL ENGINEERING SGI TX + RX

Studio Guitar Interface System

The SGI is a high performance line driver system for guitars that takes an unbalanced instrument signal and allows you to drive it as far as 100 meters (300ft) without noise.

Take your tone further

The SGI sends guitar signals across long distances without signal loss or noise, while retaining the original tone of the instrument. In the studio, it allows the guitarist to sit in the control room and connect to a distant guitar amp. On stage, the SGI can be used to play the guitar amp using off-stage isolation cabinets or it can be used to manage guitar signals to and from wireless systems, pedalboards and amplifiers. The SGI consists of two boxes: the SGI-TX transmitter and the SGI-RX receiver. The connection between the TX and RX is made using a standard balanced XLR microphone cable. To use, you simply plug your guitar into the SGI-TX input and connect your amp from the SGI-RX output and you are set to go. The SGI does all of the balancing, buffering and impedance matching for you.

-

FEATURES:

- Balanced line driver for guitar and bass

- Send signal up to 100 meters (300ft) without loss

- 100% discrete class-A circuit with Drag control

- Delivers natural tone to off-stage amplifiers

-

SPECIFICATIONS:

Audio circuit type : Active 100% discrete class-A with transformer isolation

Frequency response : 20Hz ~ 18kHz (-2dB)

Dynamic range : 112dB

Total harmonic distortion : 0.005% @ 1k

Intermodulation Distortion : 0.04% @ 1k

Input Impedance : Variable from 10k Ohms ~ 1 megaOhm

Output Impedance : 4.5k Ohms (¼" unbalanced)

Noise Floor : -102dBu

Maximum Input : +10dBu

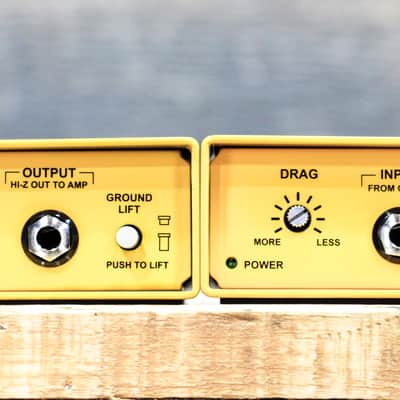

Ground lift, Drag Control

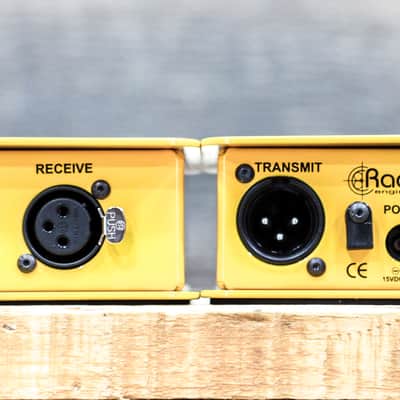

Input Connectors : TX: 1/4" | RX: XLR

Output Connectors : TX: XLR | RX: 1/4"

Construction : 14-gauge steel chassis & outer shell

Size (L x W x D) : Size: 2.75" x 4.25" x 1.75" (70 x 108 x 44mm)

Weight : 3lbs. (1.36kg)

Power : +15VDC/400mA adapter included

Conditions : For use in dry locations only between 5°C and 40°C

-
