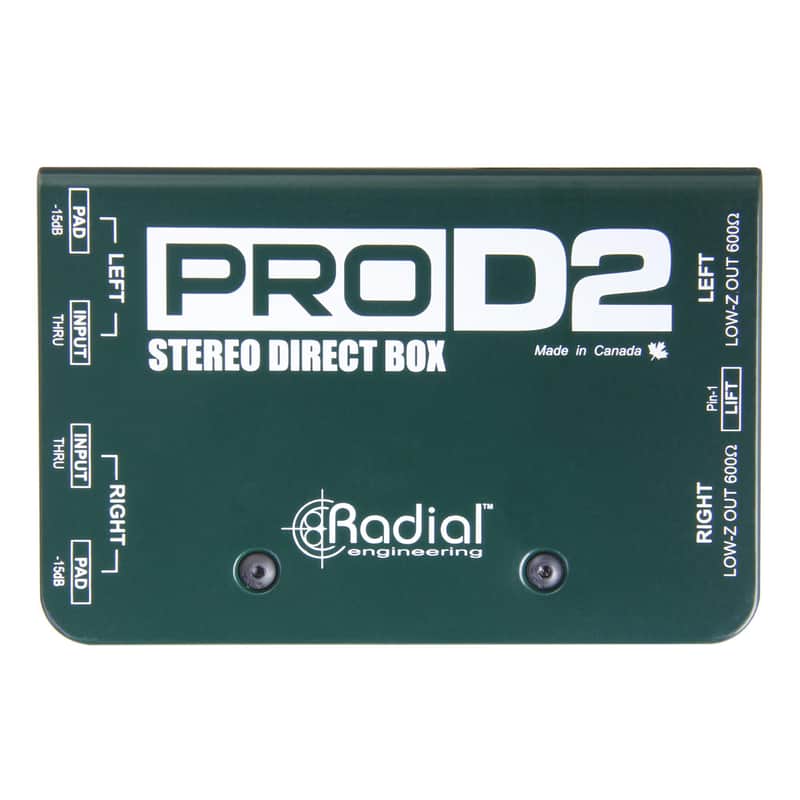

Stereo Passive Direct Box
The ProD2 is a 2-channel passive direct box designed to connect stereo keyboards or high output instruments to a PA system or home recording setup without noise or distortion.

Stereo direct box designed for keyboards
Smooth, warm sound rounds out digital edge
Able to handle huge transients without choking
May be rack mounted for touring rigs

World class DI
At the heart of the design are two high performance Eclipse ET-DB2 transformers. These deliver 20Hz to 20kHz performance with less than 1.5dB deviation above 18kHz and are able to withstand tremendous signal levels without distortion. Unlike active circuits that overload when the signal exceeds the rail voltage, transformers saturate. This creates a pleasing effect that naturally rounds out the tone, acting like a subtle limiter which is particularly advantageous when interfacing the ProD2 with digital pianos, samplers and drum machines that can produce excessive dynamics. Transformers are particularly adept at eliminating hum and buzz caused by ground loops.

Specifications:
Audio circuit type: Passive, transformer based
Transformer: Eclipse ET-DB2, 12:1 ratio
Number of channels: 2
Frequency response: 20Hz ~ 18.5kHz (± 0.2dB)
Dynamic range: 128dB
Total harmonic distortion: 0.01% from 20Hz ~ 20kHz @ -10dB
Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
Input Impedance: 140k Ohms, unbalanced
Output Impedance: 150 Ohms, balanced
Maximum Input: +18dB @ 20Hz

Features:
Input pad, 180° polarity reverse, Ground lift

Input Connectors:
1/4"

Output Connectors:

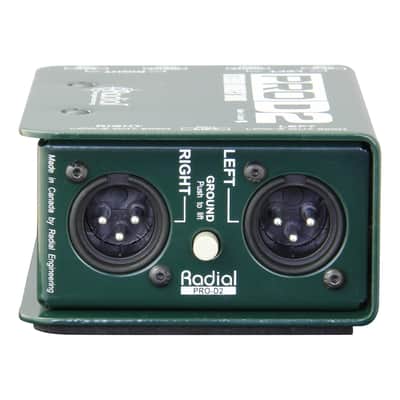

XLR, 1/4" thru

General:
Construction: 14 gauge steel chassis & outer shell
Size (L x W x D): 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm)
Weight: 0.54kg (1.2lbs)
Shipping size (L x W x D): 6.5" x 4" x 3" (165mm x 102mm x 76mm)
Shipping weight: 0.61kg (1.35lbs)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
