“A lot of people over the years had told us that we should make a power brick. Even some of my own staff urged me to do it, but I didn’t want to for two reasons. First, I knew the 1 SPOT could power just about every pedal out there, so I didn’t see the need. Second, I didn’t want to make just another knock-off of someone else’s power brick. If we were going to make one, we were going to do it our way and have features that nobody else could offer. As pedal designs changed and it became more common for digital pedals to require isolation and for others to need something other than 9Vdc, I finally saw a reason for us to design a power brick.”

“It took 3 years and lots of experimentation, but we were finally able to design a 1 SPOT Pro, using our own proprietary technology to give musicians all the features they need for today’s pedalboards. The original 1 SPOT still works great for most musicians, but for those who need more power and versatility, the 1 SPOT Pro fills the need perfectly.” - Bob Weil (Founder & President - Truetone)

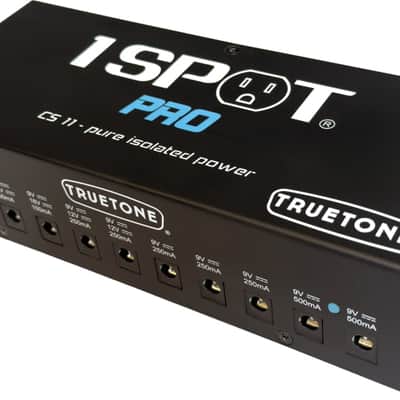

Specifications Dimensions

205 x 86 x 50mm (8.07 x 3.38 x 1.97”); 971 grams (2.14 lbs.) - weight and dimensions of power supply only, not including cables or packaging.

Input Voltage

The 1 SPOT Pro CS11 can be used anywhere in the world without the use of a step-up or step-down transformer. Like our 1 SPOT, it transforms wall voltage from 100-240Vac, and converts it into the stated voltages on the bottom of the unit.

Cables

The 1 SPOT Pro CS11 includes a generous assortment of cables and converter plugs. The cables are of various lengths, color-coded for easy cable management and with right angle plugs on the pedal end.

Power cables (all are center pin negative polarity):
(2) (5.5x2.1mm barrel plugs; 26” (660mm) – Purple
(2) (5.5x2.1mm barrel plugs; 22” (559mm) – Blue
(4) (5.5x2.1mm barrel plugs; 18” (457mm) – White
(3) (5.5x2.1mm barrel plugs; 12” (305mm) – Yellow
(1) Two 5.5x2.1mm barrel plugs with 5.5x2.1mm input socket.

Converter Plugs:
(1) – (5.5x2.1mm barrel input, 5.5x2.5 barrel output; reverse polarity)
Green – for Line 6 DL4/M9/etc. and some Eventide pedals.
(1) – (5.5x2.1mm barrel input, 5.5x2.1 barrel output; reverse polarity)
Red – reverse polarity converter
(1) – (5.5x2.1mm barrel input, 3.5mm male output; tip positive)
Black – 3.5mm (1/8”) plug converter
(1) – (5.5x2.1mm barrel input, Black battery clip output) Connects to battery clip wires inside pedals that do not have DC jacks. Do NOT connect to a battery!
(1) – Gray – 5.5x2.5mm plug converter
- can be used for Line 6 HX series and POD Go

Available Output Voltages

Outputs 1-2, 10-11: 9VDC (500mA)
Outputs 3-4: 9VDC or 18VDC (100mA)
Outputs 5-6: 9VDC or 12VDC (250mA)

Outputs 7-9: 9VDC (250mA)
