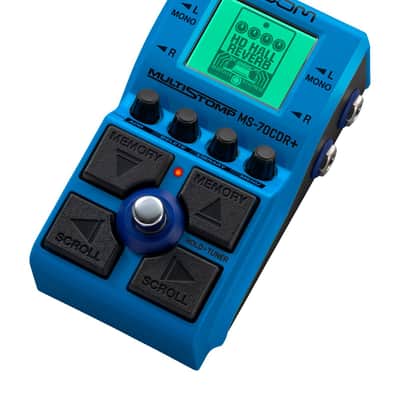

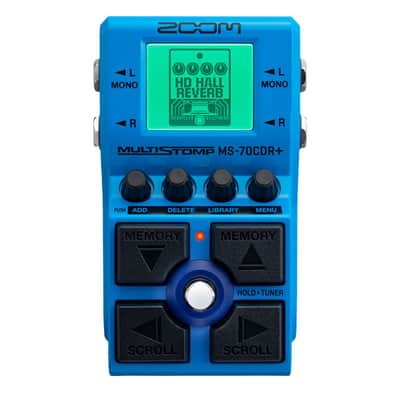

The MS-70CDR+ gives musicians 149 spatial effects ranging from lush choruses to crystal-clear delays to atmospheric reverbs. This single stompbox can shape your tone and provide endless depth and textures.

• 140+ guitar and bass effects, including modulation, chorus, delay, and reverb
• Use up to 6 effects at the same time
• 100 Patch slots with 80 presets
• Analog circuit with minimal sound deterioration
• Single stompbox design
• Stereo input and output supports effects like stereo chorus and delays
• 4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
• Improved UI for easier navigation and control
• Color coded LCD backlight for selected effect category
• Runs on 2 AA batteries or AC Adapter

Specifications Maximum number of simultaneous effects 6 effects User patch memories 100 Sampling frequency 44.1 kHz A/D conversion 24-bit 128× oversampling D/A conversion 24-bit 128× oversampling Signal processing 32-bit Frequency response 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load) Display 160×128 dot-matrix LCD Inputs L/R Standard mono phone jacks Rated input level: −20 dBu Input impedance (line): 470 kΩ Outputs L/R Standard mono phone jacks Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher) Input S/N 122 dB Noise floor (residual noise) L/R –100 dBu Power AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries) Estimated operation times • These values are "approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions." Alkaline batteries: about 7 hours (about 5 hours using using batteries) NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input) Lithium batteries: about 14 hours (about 10 hours using stereo input) USB Port: USB 2.0 Type-C / Supported cable type: Type-C Handy Guitar Lab: USB 1.1 Full Speed • Use a USB cable that supports data transfer. USB bus power is supported. Dimensions 133 mm (D) × 79 mm (W) × 61 mm (H) Weight 368 g (excluding batteries) 415 g (including batteries)
