Guitar/Bass Modeling Pedal with SHARC DSP, Neural Capture, 64 Presets, 256 Capture Slots, 256 IR Slots, 2 Rotary Switches, XLR Combo Jack, USB-C Audio Interface, and MIDI

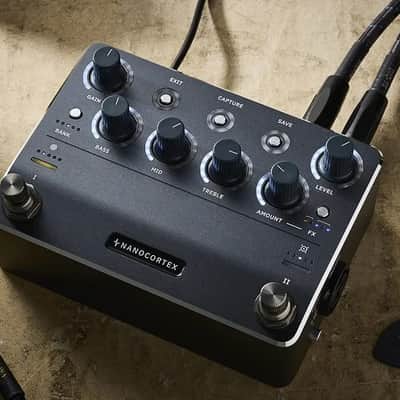

The Nano Cortex offers Neural Capture and a comprehensive signal chain in an ultra-compact form factor. With it, you can create Neural Captures on-device (without needing to connect to an app or a computer) in under 5 minutes at the same resolution as the Quad Cortex.

• Ultra-Compact Design: Pack a full guitar or bass rig into a pedal that fits in the palm of your hand! Measuring just 14.4 x 10.3 x 6.2 cm (5.6 x 4.0 x 2.4”) and weighing only 620g (1.36 lbs), the Nano Cortex is the perfect blend of power and portability.
• Cortex Cloud Integration: Access thousands of Neural Captures from artists and the community, manage your presets, and update firmware wirelessly via Bluetooth.
• Comprehensive Signal Chain: Customize your sound with seven device blocks, including Adaptive Gate, Transpose, Chorus, Analog Delay, Mind Hall Reverb, a Neural Capture block, and an advanced IR loader. With 64 Preset slots and gapless switching, the Nano Cortex offers virtually limitless performance options.
• Versatility and Connectivity: Ideal for any genre or playing style, this device functions as a fully-fledged audio interface with USB-C, providing 24-bit, 48kHz recording with low latency. It includes 1 input, dual 1/4" TRS outputs, a 3.5mm headphone output, and TRS expression & MIDI input.
• Intuitive and Beginner-Friendly: Simple controls and the Cortex Cloud companion app make it easy for users of all skill levels to navigate.

Product Features:

• Advanced IR Loader with ten premium-quality IRs, including five mic options and six mic positions. Load up to 256 custom IRs.
• Adaptive Gate & Transpose for clean signal and on-the-fly tuning adjustments.
• Bluetooth Connectivity for managing presets and firmware updates.
• Built-In Tuner to keep you perfectly in tune.

Target Audience:

• Touring Musicians: A portable and comprehensive rig solution.
• Studio Professionals: Achieve a wide range of tones with ease.
• Beginners: A versatile and user-friendly practice tool.

Use Cases:

• Complete Rig: An all-in-one solution for live, studio, or home practice.
• Amp & Cab Replacement: Utilize Neural Capture and IR Loader for amp and cab simulation.
• Stomp Box/Effects Pedal: Integrate with existing setups, storing up to 256 Captures of drive pedals.

Included in the Box:

• Nano Cortex pedal
• USB-C cable

Technical Specifications:

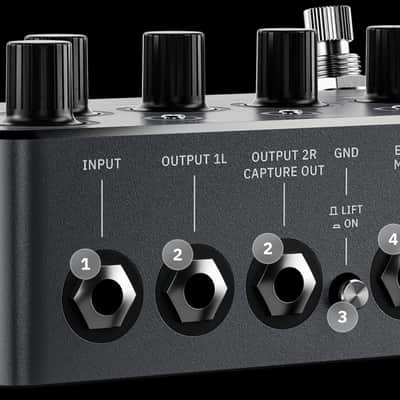

• Inputs: 1/4" TRS-F (instrument), XLR-F + 1/4" TRS-F (combo capture)
• Outputs: Dual 1/4" TRS-F, 3.5mm headphone output
• USB Audio: USB Audio Class 2.0, 7 channels (4 in / 3 out), 48kHz fixed clock
• Dimensions: 14.4 x 10.3 x 6.2 cm / 5.6 x 4.0 x 2.4"
• Weight: 620g / 1.36 lbs
• Power: 9-12V DC 600mA (center negative) / USB-C 5V, 1.5A or higher

Environmental Information:

• Operating Temp: 0 to 50 °C (32 to 122 °F)
• Storage Temp: -10 to 70 °C (14 to 158 °F)
• Humidity: Maximum non-condensing

• Pedal Type:Multi-FX, Amp Modeling, Digital Amp Capture
• Analog/Digital:Digital
• Presets:64 x User
• Number of Effects:2 x pre-FX blocks (Gate, Transpose), 3 x post-FX blocks (Chorus, Delay, Reverb)
• Impulse Response:25 x Factory Neural Captures, 256 x User Neural Captures, 10 x Factory IRs, 256 x User IRs
• Inputs:1 x 1/4" TRS (instrument), 1 x XLR-1/4" (Capture Out)
• Outputs:2 x 1/4" TRS (L, R/Capture out)
• MIDI I/O:1 x 1/4" TRS Type A (In, Expression)
• USB:1 x USB-C (24-bit, 48kHz Audio Interface, Midi)
• Bluetooth :Yes, App control
• Headphones:1 x 1/8" TRS
• Expression Control:Yes, External
• Bypass Switching:Buffered Bypass
• Software:Cortex Cloud app
• OS Requirements - Mac:iOS 11.0 or later
• OS Requirements - PC:Android 5 or later
• Power Source:9-12V DC 600mA power supply (sold separately), USB Bus power (5V, 1.5A)
• Height:2.4"
• Width:5.6"
• Depth:4"
• Weight:1.36 lbs.
• Manufacturer Part Number:160000
